SENXINGYAN SXY-M2 Bluetooth Speaker User Manual

1. Ievads

Thank you for choosing the SENXINGYAN SXY-M2 Bluetooth Speaker. This portable speaker is designed to deliver high-quality audio with robust features for various environments. Please read this manual carefully to ensure proper use and to maximize your listening experience.

2. Kas ir kastē

• M2 portatīvais Bluetooth skaļrunis
• MicroUSB uzlādes kabelis
• 3.5 mm AUX kabelis
• Portable Braided Rope

3. Produkts beidziesview un funkcijas

The SENXINGYAN SXY-M2 speaker is equipped with advanced technology to provide a superior audio experience. Key features include:

• Spēcīga skaņa: Features 2x10W stereo drivers for impressive sound with rich bass, compact mids, and clear highs.
• Bluetooth 5.0: Ensures a stable connection up to 15 meters with low latency, compatible with all Bluetooth-enabled devices.
• Ilgs atskaņošanas laiks: Built-in 2800mAh lithium-ion battery provides up to 16 hours of playback on a full charge (3-4 hours charging time).
• IPX6 ūdensizturīgs: Constructed with high-quality waterproof, non-slip, durable silicone material, making it resistant to water splashes, dust, and rain. Ideal for outdoor use.
• Multi-functional Connectivity: Supports 3.5mm AUX input, TF card, USB drive, and FM radio mode.
• Zvanīšana brīvroku režīmā: Integrated microphone with noise and echo cancellation for clear hands-free communication.
• Patiess bezvadu stereo (TWS): Connect two M2 speakers for a 360° stereo sound experience.

1. attēls. Priekšpuse view of the SENXINGYAN SXY-M2 Bluetooth Speaker, showing the control buttons.

Figure 2: The speaker positioned next to a smartphone, demonstrating its hands-free call capability via Bluetooth V5.0 with an effective distance of 15 meters.

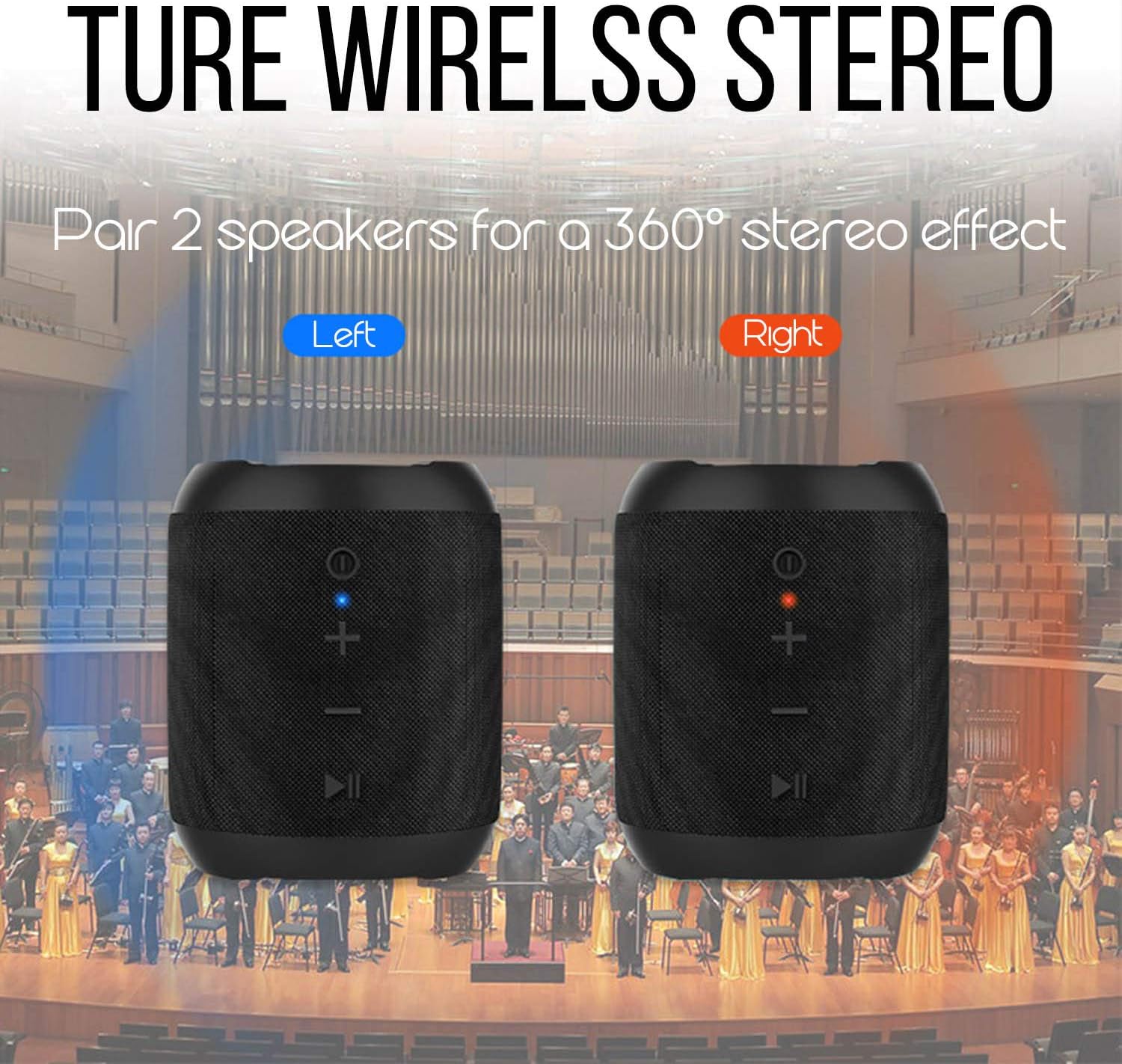

Figure 3: Two M2 speakers paired together to create a 360° stereo sound experience, labeled 'Left' and 'Right'.

Figure 4: An exploded diagram illustrating the internal components of the speaker, highlighting its sophisticated sound and bass processing technology.

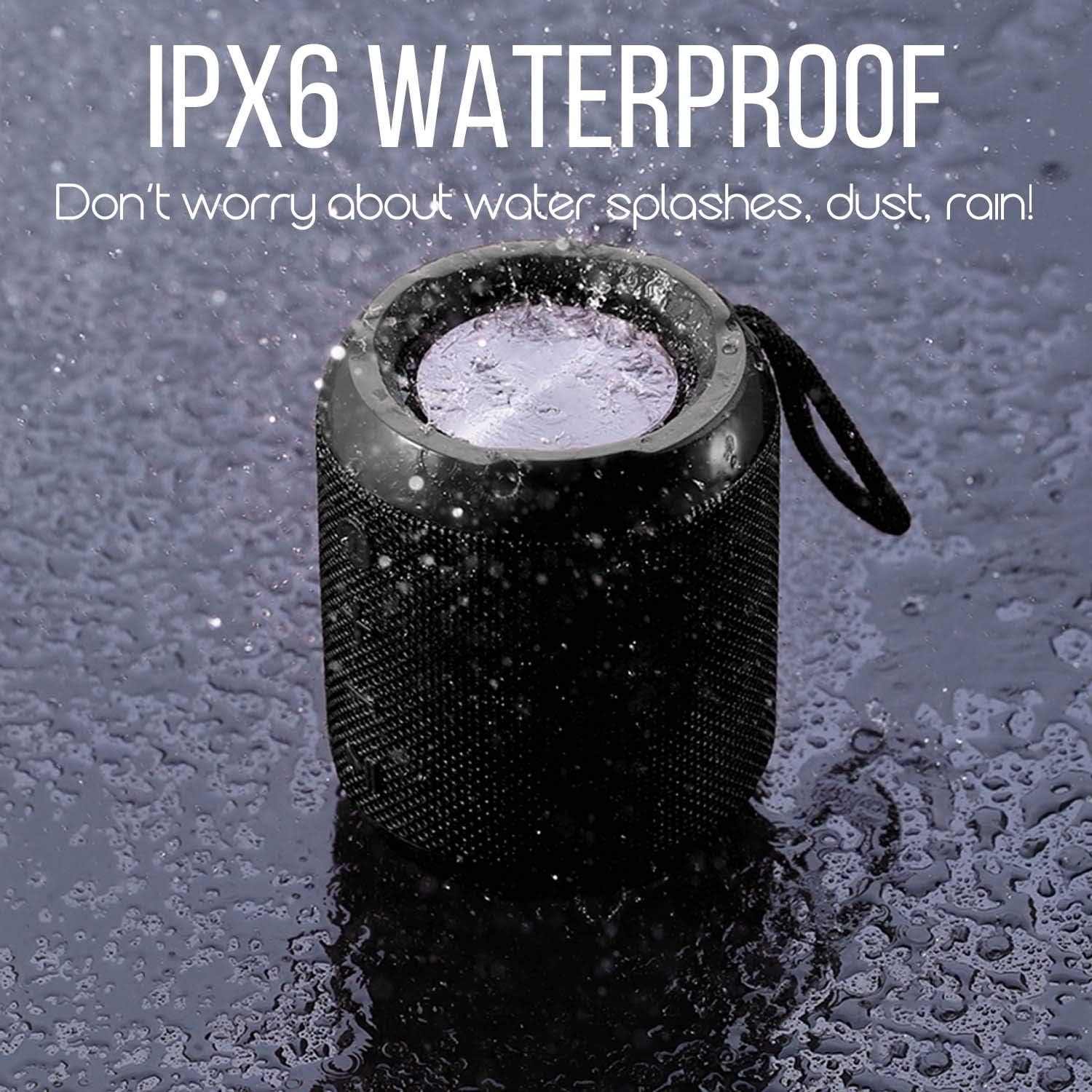

Figure 5: The speaker shown with water splashing on it, emphasizing its IPX6 waterproof rating, suitable for use in wet conditions.

Figure 6: A visual summary of the speaker's features, including its small size, IPX6 waterproof rating, Hi-Fi Bluetooth V5.0, 3.5mm audio cable support, 16-hour long playtime, FM mode, USB/TF card slot, and hands-free call support.

4. Iestatīšana

4.1 Skaļruņa uzlāde

Before first use, fully charge the speaker. Connect the MicroUSB charging cable to the speaker's charging port and the other end to a USB power adapter (5V DC) or a computer's USB port. The charging indicator light will illuminate during charging and turn off when fully charged. A full charge typically takes 3-4 hours.

4.2 Ieslēgšana/izslēgšana

Nospiediet un turiet barošanas pogu (⏻) for approximately 3 seconds to turn the speaker on or off. A sound prompt will indicate the power status.

4.3 Bluetooth savienošana pārī

1. Turn on the speaker. It will automatically enter Bluetooth pairing mode, indicated by a flashing blue LED light.
2. Iespējojiet Bluetooth savā ierīcē (viedtālrunī, planšetdatorā, datorā).
3. Meklēt available Bluetooth devices and select "SXY-M2" from the list.
4. Once connected, the LED light will turn solid blue, and you will hear a confirmation sound.

5. Lietošanas instrukcijas

5.1 Pogu funkcijas

• Ieslēgšanas poga (⏻): Press and hold for 3 seconds to power on/off. Short press to switch modes (Bluetooth/FM/AUX/USB/TF).
• Atskaņošanas/pauzes poga (▶‖): Short press to play or pause music. In Bluetooth mode, short press to answer/end calls. Press and hold to reject a call.
• Skaļuma palielināšanas/nākamā celiņa poga (+): Short press to increase volume. Press and hold to skip to the next track.
• Skaļuma samazināšanas/iepriekšējā celiņa poga (-): Īsi nospiediet, lai samazinātu skaļumu. Nospiediet un turiet, lai pārietu uz iepriekšējo ierakstu.

5.2 Patiesi bezvadu stereo (TWS) savienošana pārī

To pair two SXY-M2 speakers for TWS stereo sound:

1. Pārliecinieties, vai abi skaļruņi ir ieslēgti un nav savienoti ar nevienu Bluetooth ierīci.
2. On one speaker (this will be the master speaker), double-press the Play/Pause button. It will enter TWS pairing mode.
3. The two speakers will automatically connect to each other. You will hear a confirmation sound once paired.
4. Once TWS is established, connect your device to the master speaker via Bluetooth as described in section 4.3.

5.3 FM radio režīms

1. Īsi nospiediet ieslēgšanas/izslēgšanas pogu (⏻) to switch to FM radio mode.
2. Nospiediet un turiet nospiestu atskaņošanas/pauzes pogu (▶‖) to automatically scan and save available radio stations.
3. Izmantojiet skaļuma palielināšanas pogu (+) un skaļuma samazināšana (-) buttons to switch between saved stations.

5.4 AUX/USB/TF Card Playback

• AUX režīms: Insert the 3.5mm audio cable into the AUX port on the speaker and connect the other end to your audio device. The speaker will automatically switch to AUX mode.
• USB/TF kartes režīms: Insert a USB drive or TF card (with audio files) into the respective port. The speaker will automatically detect and play music from the inserted storage.

6. Apkope

To ensure the longevity and optimal performance of your SENXINGYAN SXY-M2 speaker, follow these maintenance guidelines:

• Tīrīšana: Skaļruņa virsmas tīrīšanai izmantojiet mīkstu, sausu drānu. Spēcīgu netīrumu gadījumā izmantojiet nedaudz sausu drānu.amp cloth can be used, but ensure the speaker is completely dry before use or charging. Do not use abrasive cleaners or solvents.
• Ūdensnecaurlaidīga kopšana: While the speaker is IPX6 waterproof, it is not designed for submersion. Ensure the charging port and other openings are securely covered when exposed to water. After exposure to water, wipe the speaker dry before charging.
• Akumulatora kopšana: To preserve battery life, avoid fully discharging the speaker frequently. If storing for an extended period, charge the battery to about 50% and recharge every few months.
• Uzglabāšana: Uzglabājiet skaļruni vēsā, sausā vietā, pasargājot to no tiešiem saules stariem, ekstremālām temperatūrām un augsta mitruma.

7. Traucējummeklēšana

8. Specifikācijas

9. Garantija un atbalsts

The SENXINGYAN SXY-M2 Bluetooth Speaker comes with a 24-month warranty from the date of purchase, covering manufacturing defects. For any questions, technical support, or warranty claims, please contact SENXINGYAN customer service through the platform where you purchased the product. Please have your purchase receipt and product model number ready when contacting support.
