Ford Edge 2019-2023 Front Upper Bumper Cover Installation Manual

1. Ievads

This manual provides comprehensive instructions for the proper installation, care, and maintenance of your new Ford Edge 2019-2023 Front Upper Bumper Cover (Model FO1014138). Please read all instructions carefully before beginning the installation process to ensure safety and optimal fitment.

Drošības pasākumi

• Uzstādīšanas laikā vienmēr valkājiet atbilstošus individuālos aizsardzības līdzekļus (IAL), tostarp aizsargbrilles un cimdus.
• Pārliecinieties, ka transportlīdzeklis ir novietots uz līdzenas virsmas ar ieslēgtu stāvbremzi.
• If working under the vehicle, use jack stands to secure it properly.
• Disconnect the vehicle's battery if instructed by the vehicle's service manual for any electrical work.
• Turiet bērnus un mājdzīvniekus tālāk no darba zonas.

2. Produkts beidziesview

The FO1014138 Front Upper Bumper Cover is a compatible replacement part designed for Ford Edge models from 2019 to 2023. It is engineered to match the original equipment specifications for a precise fit and finish, restoring the aesthetic and protective function of your vehicle's front end.

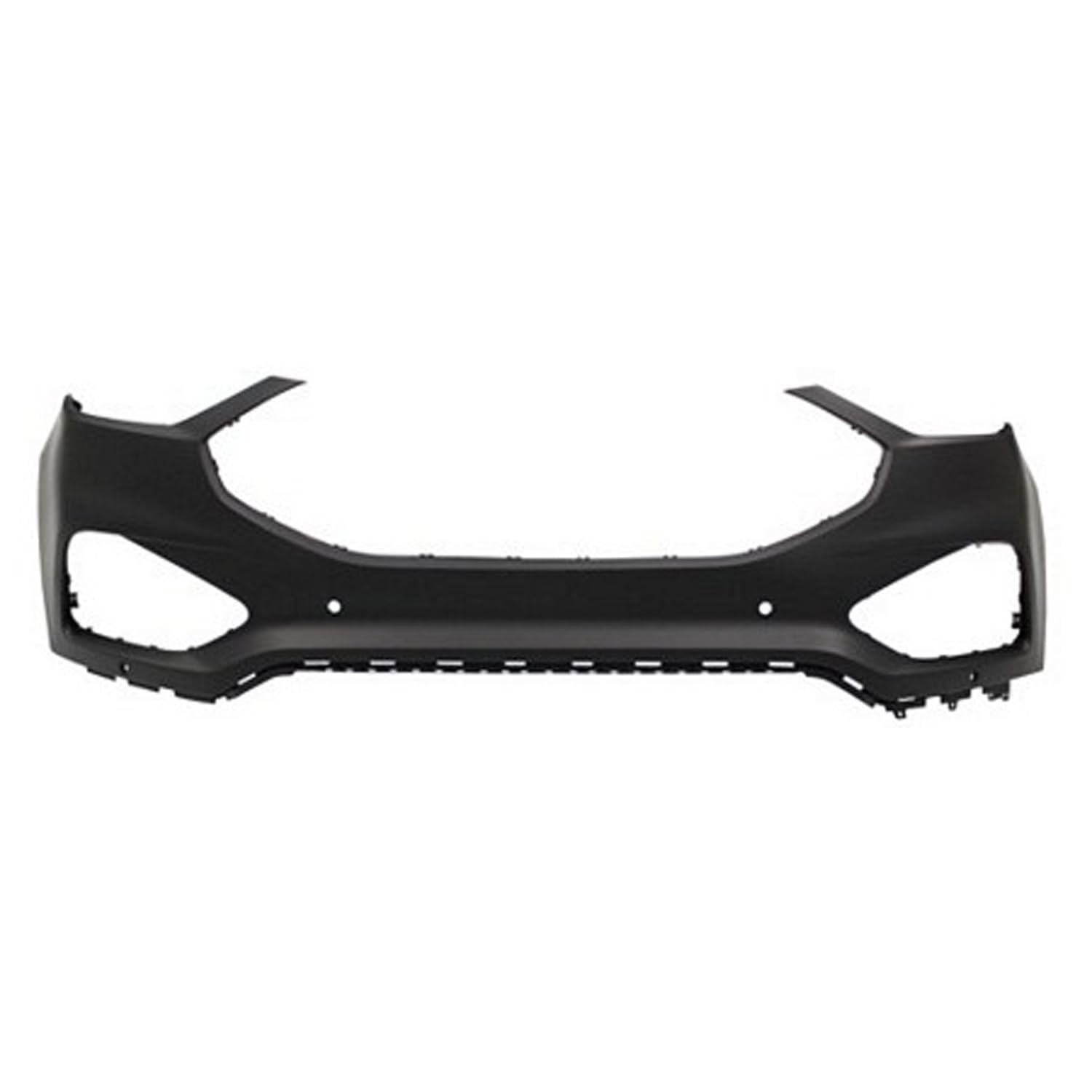

2.1. attēls: Ģenerālis view of the Ford Edge Front Upper Bumper Cover (Model FO1014138).

3. Uzstādīšana

Nepieciešamie rīki

• Uzgriežņu atslēgas komplekts
• Plastmasas apdares noņemšanas instrumenti
• Skrūvgriežu komplekts (Phillips un plakangalvas)
• Cimdi un aizsargbrilles
• Tīrs audums

Soli pa solim procedūra

1. Sagatavojiet transportlīdzekli: Park the Ford Edge on a flat, stable surface. Engage the parking brake. If necessary, raise the front of the vehicle using a jack and secure it with jack stands.
2. Remove Existing Bumper Cover (if applicable):
   • Locate and remove all fasteners (screws, clips, bolts) securing the existing bumper cover to the vehicle's frame, fenders, and grille. These are typically found along the top edge, inside the wheel wells, and underneath the bumper.
   • Carefully detach any electrical connectors for fog lights, sensors, or other components integrated into the bumper cover.
   • Gently pull the old bumper cover away from the vehicle, ensuring no components are still attached. Place it aside.
3. Pārbaudiet stiprinājuma punktus: Clean any debris or dirt from the vehicle's mounting points and ensure they are free from damage. Repair any damaged mounting points before proceeding.
4. Transfer Components (if necessary): If your new bumper cover does not come with pre-installed components (e.g., fog light bezels, grille inserts), carefully transfer them from your old bumper cover to the new one. Ensure all clips and tabs are securely fastened.
5. Position the New Bumper Cover: Carefully align the new FO1014138 bumper cover with the vehicle's mounting points. Start by aligning the top edge and then work your way around.
6. Secure the Bumper Cover: Reinstall all fasteners (screws, clips, bolts) in the reverse order of removal. Start with a few key fasteners to hold the bumper in place, then progressively secure the rest. Do not overtighten.
7. Reconnect Electrical Components: Reattach any electrical connectors for fog lights, sensors, or other components. Ensure connections are snug and secure.
8. Galīgā pārbaude: Once all fasteners are secure and electrical components are reconnected, visually inspect the bumper cover for proper alignment and fitment. Ensure there are no gaps or loose areas. Test all lights and sensors that were disconnected.

4. Kopšana un uzturēšana

Proper care and maintenance will extend the life and preserve the appearance of your bumper cover.

Tīrīšana

• Wash the bumper cover regularly with mild automotive soap and water.
• Izvairieties no abrazīviem tīrīšanas līdzekļiem vai spēcīgām ķīmiskām vielām, kas var sabojāt apdari.
• Rūpīgi izskalojiet, lai noņemtu visus ziepju atlikumus.
• Dry with a soft, clean microfiber cloth to prevent water spots.

Pārbaude

• Periodically inspect the bumper cover for any signs of damage, such as cracks, scratches, or loose fasteners.
• Address minor damage promptly to prevent it from worsening.
• Ensure all clips and bolts remain secure. Tighten if necessary.

5. Traucējummeklēšana

Šajā sadaļā ir aplūkotas bieži sastopamas problēmas, kas var rasties instalēšanas laikā vai pēc tās.

Fitment Issues

• Gaps or Uneven Alignment:

  Ensure all mounting tabs are correctly seated and all fasteners are tightened evenly. Recheck the alignment of the bumper cover with the vehicle's body panels. Sometimes, slight adjustments are needed by loosening and retightening fasteners.
• Vaļīgs buferis:

  Verify that all clips, screws, and bolts are securely fastened. Check for any broken mounting tabs on either the bumper cover or the vehicle. Replace damaged components if necessary.

Electrical Component Malfunctions (if applicable)

• Lights or Sensors Not Working:

  Check all electrical connections to ensure they are fully seated and not damaged. Inspect wiring for pinches or cuts. Consult your vehicle's service manual for specific electrical troubleshooting steps.

6. Specifikācijas

7. Garantija un atbalsts

For specific warranty information regarding this product, please refer to the documentation provided at the time of purchase or contact the seller directly. Warranty terms and conditions may vary.

If you encounter any issues or require technical assistance, please reach out to the retailer or manufacturer's customer support channels. Have your purchase details and model number (FO1014138) ready for faster service.
