Ultra-Tow 4ft. x 8ft. Steel Folding Utility Trailer Kit

1. Drošības informācija

Read and understand all instructions and safety warnings before assembling, operating, or maintaining this utility trailer. Failure to follow these instructions may result in serious injury or property damage.

• Montāžas drošība: Wear appropriate personal protective equipment (PPE) during assembly, including safety glasses and gloves. Ensure all fasteners are tightened securely as specified in the assembly instructions.
• Vilkšanas drošība: Do not exceed the trailer's maximum payload capacity of 1,170 lbs. or the Gross Vehicle Weight Rating (GVWR) of 1,400 lbs. Ensure the trailer is properly hitched to the tow vehicle using the 1-7/8 inch coupler and safety chains. Verify all lights are functional before towing. Adhere to a maximum towing speed of 45 MPH.
• Slodzes sadalījums: Distribute the load evenly over the trailer bed. Secure all cargo to prevent shifting during transit.
• Apkope: Regularly inspect tires, lights, fasteners, and structural components for wear or damage. Perform maintenance as outlined in this manual.
• Road-Ready Compliance: This trailer meets or exceeds all road-ready specifications and DOT requirements when properly assembled and maintained.

2. Produkts beidziesview

The Ultra-Tow 4ft. x 8ft. Steel Folding Utility Trailer Kit is designed for versatile transportation needs. Its folding design allows for space-saving storage when not in use, rolling smoothly on integrated casters. The trailer is constructed from alloy steel with a powder-coated finish for durability.

Galvenās funkcijas:

• Overall assembled dimensions: 135 inches (L) x 62-1/4 inches (W).
• Payload capacity: 1,170 lbs.
• Maximum Gross Vehicle Weight Rating (GVWR): 1,400 lbs.
• Folds upright for compact storage, standing 86-3/4 inches tall.
• Equipped with (2) 4.80-12 inch tires.
• Includes a light kit with a flat 4-wire harness and connector.
• Features a safety chain with an S-hook and a 1-7/8 inch coupler.

Iepakojuma saturs:

• 1x Light set
• 1x Hardware kit
• 1x 1-7/8 inch coupler
• 2x 4.80-12 inch tires
• 1x Leaf spring
• 1x Safety chain with S-hook

3. Uzstādīšana un montāža

This utility trailer requires assembly. It is recommended to have assistance during the assembly process. Carefully unpack all components and verify against the package contents list. Refer to the separate assembly instructions provided with the kit for detailed, step-by-step guidance.

• Nepieciešamie rīki: Ensure you have all necessary tools for assembly, typically including wrenches, sockets, and a torque wrench.
• Komponentu identifikācija: Pirms montāžas uzsākšanas iepazīstieties ar visām detaļām.
• Stiprinājuma griezes moments: Tighten all bolts and nuts to the specified torque values to ensure structural integrity.
• Elektroinstalācija: Connect the light kit's flat 4-wire harness according to the instructions, ensuring all lights function correctly.
• Certificate of Origin: A certificate of origin will be mailed separately. Allow adequate time for processing as this document is required for trailer registration.

Figure 3.1: The Ultra-Tow 4ft. x 8ft. Steel Folding Utility Trailer in its assembled state, ready for use.

4. Lietošanas instrukcijas

4.1. Loading the Trailer

• Do not exceed the 1,170 lb. payload capacity.
• Distribute the load evenly, with approximately 60% of the weight positioned over the front half of the trailer bed.
• Secure all cargo using appropriate tie-downs to prevent shifting during transport.
• Decking is not included with this kit and must be purchased separately.

Figure 4.1: The trailer frame designed for dependable load capacity, supporting up to 1,170 lbs.

4.2. Towing the Trailer

• Ensure the 1-7/8 inch coupler is securely attached to the tow vehicle's hitch ball.
• Cross the safety chains beneath the coupler and attach them to the tow vehicle's frame or hitch.
• Connect the 4-wire electrical harness to the tow vehicle's receptacle and verify all trailer lights (running, brake, turn signals) are operational.
• Maintain a maximum towing speed of 45 MPH.
• Adjust driving habits to account for the added length and weight of the trailer, allowing for increased braking distance and wider turns.

4.2. attēls. Aizmugure view of the trailer showing the complete towing setup, including lights, tires, and safety chain connection points.

4.3. Salocīšana un uzglabāšana

The trailer is designed to fold for compact storage. Follow the specific folding instructions provided in your assembly manual. When folded, the trailer stands 86-3/4 inches tall and can be easily moved on its integrated casters.

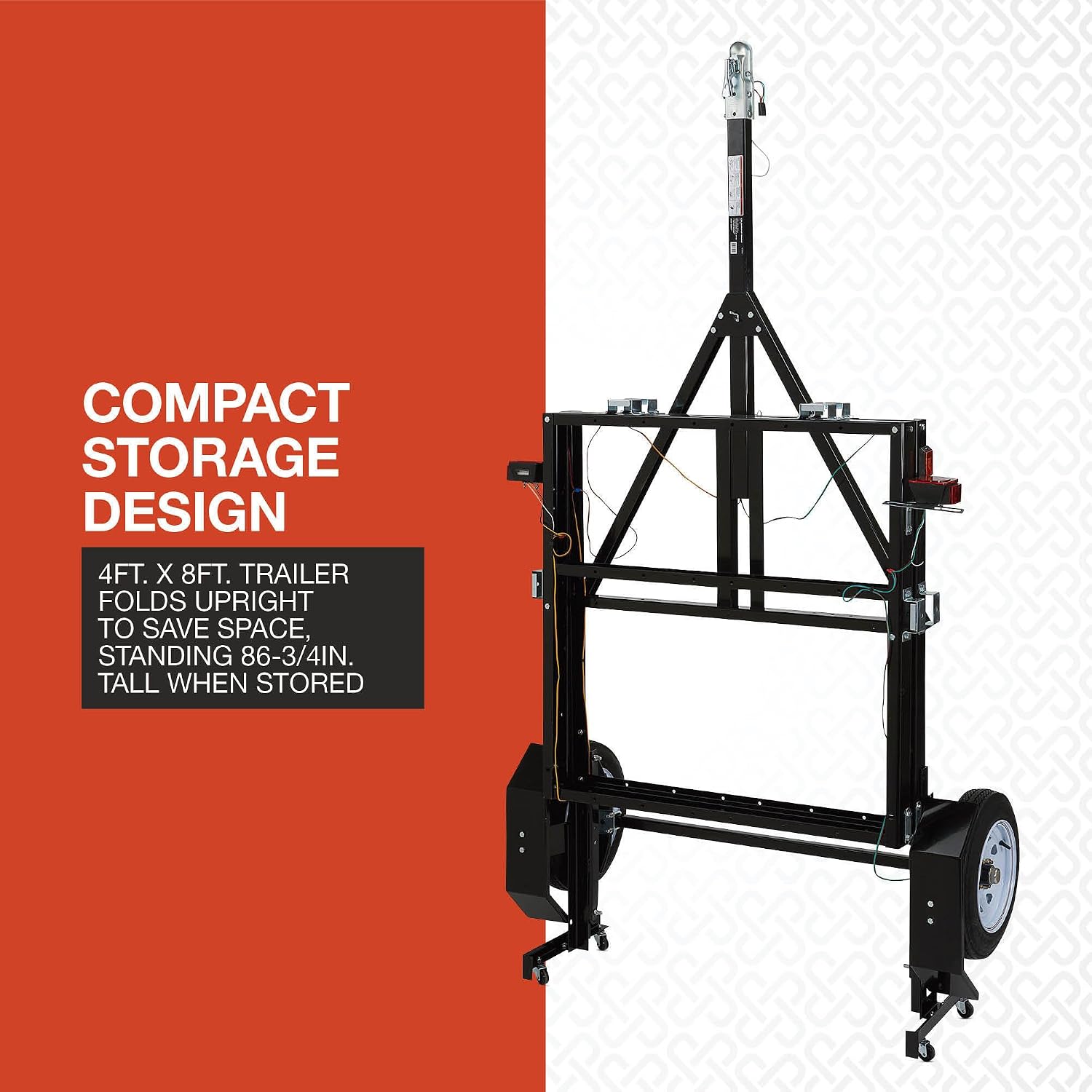

Figure 4.3: The Ultra-Tow trailer in its compact, folded upright position for storage.

5. Apkope

Regular maintenance is crucial for the safe and reliable operation of your utility trailer.

• Riepu spiediens: Check tire pressure before each use. Refer to the tire sidewall for recommended PSI. The trailer uses 4.80-12 inch tires.
• Riteņu gultņi: Inspect and lubricate wheel bearings annually or every 5,000 miles, whichever comes first.
• Lights and Wiring: Before each trip, verify all lights (running, brake, turn signals) are clean and functional. Inspect wiring for any signs of wear, fraying, or damage.
• Stiprinājumi: Periodically check all bolts, nuts, and other fasteners for tightness. Re-torque as necessary, especially after the first few uses.
• Rāmja pārbaude: Inspect the alloy steel frame for any cracks, bends, or corrosion. Clean and touch up any areas of chipped paint to prevent rust.
• Coupler and Safety Chains: Ensure the coupler mechanism operates smoothly and locks securely. Inspect safety chains for wear or damage.

5.1. attēls: Tuvplāns view of the trailer wheel and hub assembly, highlighting components requiring regular inspection.

6. Traucējummeklēšana

This section addresses common issues you might encounter with your utility trailer.

• Gaismas nedarbojas:
  • Check the connection of the 4-wire harness to the tow vehicle.
  • Inspect the trailer's wiring for cuts, pinches, or loose connections.
  • Verify the tow vehicle's fuse for trailer lights is intact.
  • Check individual light bulbs for damage or burnout.
• Piekabes šūpošanās:
  • Ensure the load is properly distributed, with adequate tongue weight (typically 10-15% of the total trailer weight).
  • Verify tire pressures on both the trailer and tow vehicle are correct.
  • Reduce towing speed.
• Pārmērīgs troksnis vilkšanas laikā:
  • Check all fasteners for tightness, especially those on the axle, leaf springs, and frame.
  • Inspect wheel bearings for wear or damage.
  • Ensure cargo is securely fastened and not shifting.
• Grūtības salocīšanas/atlocīšanas laikā:
  • Ensure all locking pins and mechanisms are disengaged.
  • Check for any obstructions or bent components preventing smooth movement.
  • Lubricate pivot points if necessary.

7. Specifikācijas

8. Garantija un atbalsts

8.1. Ražotāja garantija

This Ultra-Tow utility trailer is covered by a 1 gads ierobežota garantija from the manufacturer. This warranty typically covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

8.2. Klientu atbalsts

For technical assistance, missing parts, or warranty inquiries, please contact Ultra-Tow customer support. Refer to the contact information provided with your purchase documentation or visit the official Ultra-Tow website for current support channels.

When contacting support, please have your product model number (B0F2G74KPS) and proof of purchase readily available to expedite assistance.
