This manual provides detailed instructions for the installation, operation, and maintenance of your Howard Miller 354516 Pendulum Clock Movement Replacement Kit. This kit is designed to enhance, restore, or facilitate the construction of timepieces, offering precision and durability for accurate timekeeping. It is suitable for both professional clockmakers and DIY enthusiasts.

2. Produkts beidziesview

The replacement kit includes the quartz battery-operated pendulum clock movement, a hanger, mounting hardware, and a pair of serpentine style black hands. The minute hand measures 3 inches from the center hole to its tip. The overall hand shaft length is 19 mm. This movement is compatible with a single AA battery.

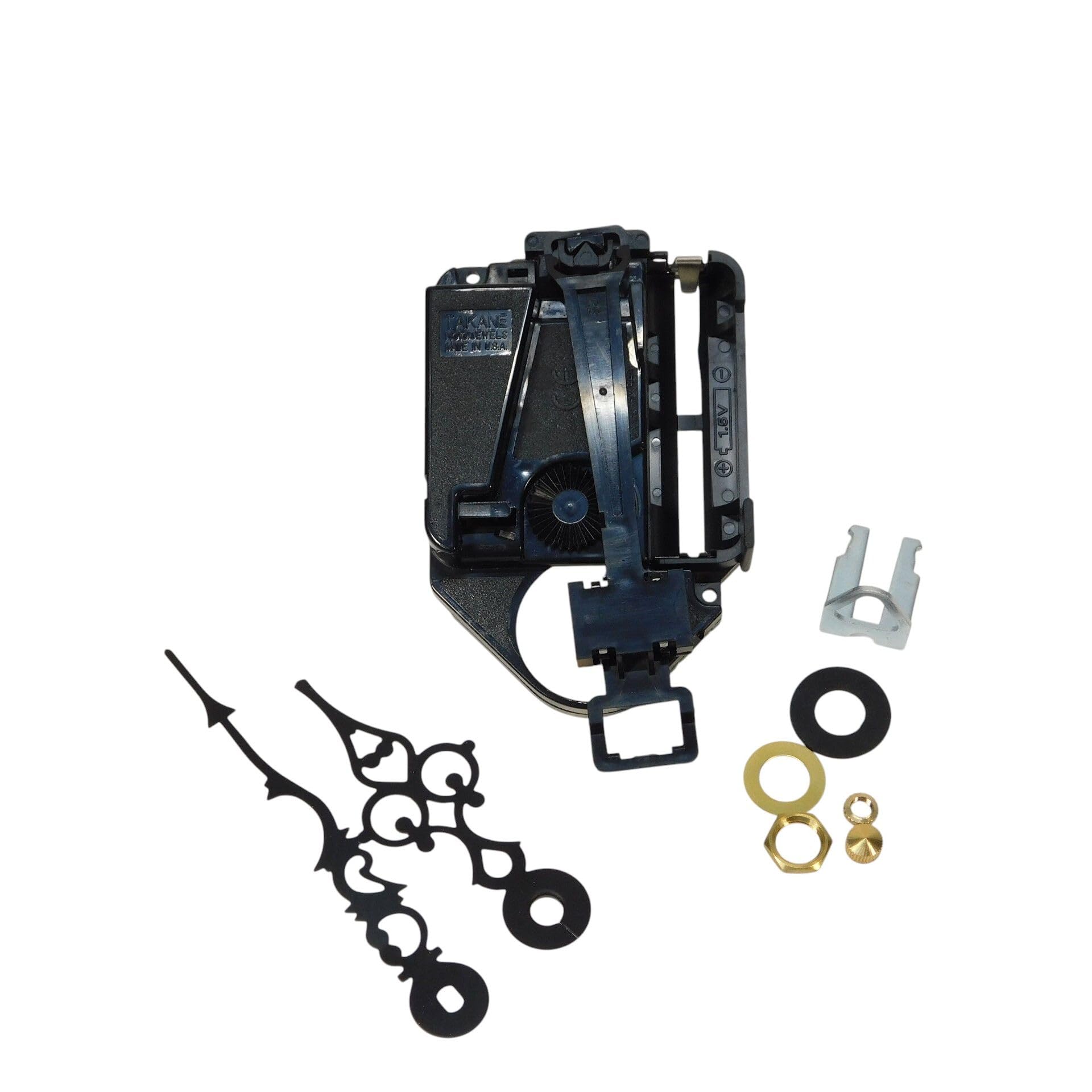

Image 1: Components of the Howard Miller 354516 Pendulum Clock Movement Replacement Kit, showing the main movement unit, hands, and mounting hardware.

3. Iestatīšana un instalēšana

1. Prepare the Clock Case: Ensure the clock case opening is clean and appropriately sized for the movement.
2. Ievietojiet akumulatoru: Open the battery compartment on the back of the movement. Insert one AA alkaline battery, ensuring correct polarity (+/-).
3. Mount the Movement: Insert the movement shaft through the clock face from the back. Secure it using the provided mounting hardware (washer and nut) on the front side of the clock face. Tighten gently to avoid damaging the clock face or movement.
4. Attach Hands: Carefully press the hour hand onto the hour shaft, followed by the minute hand onto the minute shaft. Ensure they are parallel to the clock face and do not touch each other. The original hands from your clock may also fit.
5. Attach Pendulum (if applicable): If your clock uses a pendulum, attach it to the designated hook on the movement.
6. Pakārt pulksteni: Use the provided hanger to securely mount the clock on a wall or place it on a stable surface.

4. Lietošanas instrukcijas

To set the time, gently turn the time-setting knob located on the back of the movement. Rotate the knob clockwise until the hands display the correct time. Avoid turning the hands directly, as this may damage the movement.

5. Apkope

• Akumulatora nomaiņa: Replace the AA battery annually or when the clock begins to lose time or stop. Always use a fresh alkaline battery for optimal performance.
• Tīrīšana: Clean the clock face and hands with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
• Vides apstākļi: Keep the clock away from extreme temperatures, direct sunlight, and high humidity to ensure longevity and accurate operation.

6. Traucējummeklēšana

• Clock Not Running:
  • Check if the battery is inserted correctly with the proper polarity.
  • Replace the battery with a new AA alkaline battery.
  • Ensure the hands are not touching each other or the clock face.
• Neprecīzs laiks:
  • Replace the battery, as a weak battery can affect accuracy.
  • Ensure the movement is securely mounted and not loose.
• Pendulum Not Swinging (if applicable):
  • Verify the pendulum is correctly attached to the movement's hook.
  • Ensure there are no obstructions preventing the pendulum from swinging freely.

7. Specifikācijas

• Modelis: Howard Miller 354516
• Kustības veids: Quartz Battery Pendulum
• Barošanas avots: 1 x AA Alkaline Battery (recommended)
• Overall Hand Shaft Length: 19 mm
• Minute Hand Length (from center hole to tip): 3 collas
• Produkta izmēri: Approximately 1"W x 1"H (movement unit)
• Zīmols: Vispārējs

8. Garantija un atbalsts

For any questions, technical assistance, or support regarding your Howard Miller 354516 Pendulum Clock Movement Replacement Kit, please refer to the retailer or manufacturer's contact information provided at the point of purchase. Keep your purchase receipt for warranty claims, if applicable.
