Generic FSL/SCRC 94-inch White Illuminated Retail Display Cabinet User Manual

1. Ievads

Thank you for choosing the Generic FSL/SCRC 94-inch White Illuminated Retail Display Cabinet with Cash Wrap Counter. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new display unit. Please read these instructions thoroughly before beginning assembly or use, and retain this manual for future reference.

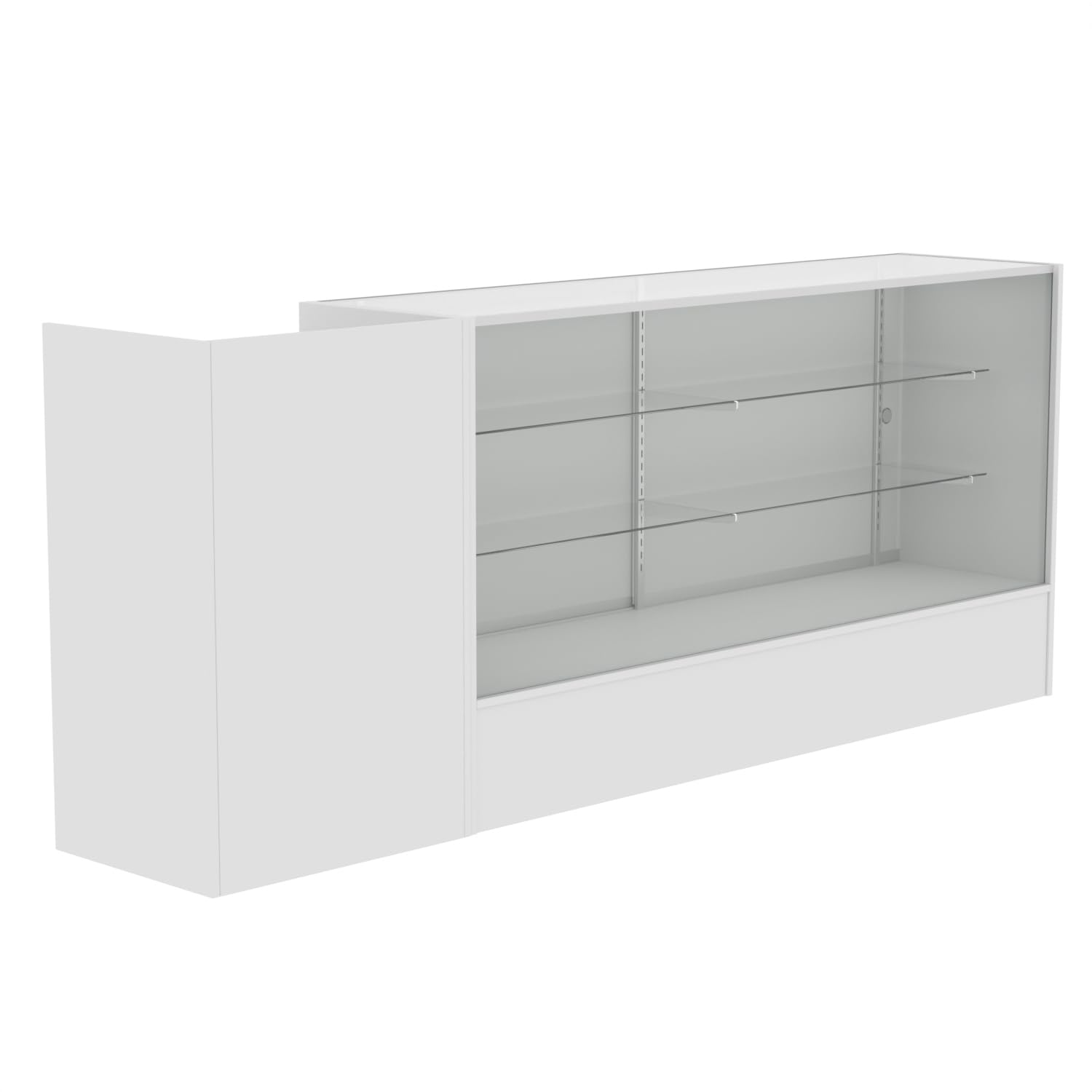

Kopumā view of the white retail display cabinet with integrated cash wrap counter, showcasing its full-vision display and functional design.

2. Produkta īpašības

• Integrēts dizains: Combines a full-vision display showcase with a functional cash wrap counter.
• Optimāla redzamība: Tempered glass panels ensure clear product display.
• Izturīga konstrukcija: Crafted from high-quality engineered wood and tempered glass for longevity.
• Izgaismots displejs: Features an integrated LED light strip to enhance product visibility and ambiance.
• Regulējami plaukti: Two tempered glass shelves are height-adjustable to accommodate various item sizes.
• Uzlabota drošība: Equipped with lockable sliding glass doors for the display area and a lockable drawer in the cash wrap counter.
• Ample Uzglabāšana: The cash wrap counter includes multi-level storage shelves and a secure drawer.

3. Drošības informācija

• Always assemble the unit on a clean, flat, and stable surface.
• Pirms lietošanas pārliecinieties, vai visi stiprinājumi ir droši pievilkti. Periodiski pārbaudiet un pievelciet tos, ja nepieciešams.
• Do not overload shelves. Each tempered glass shelf has a maximum load capacity of 15 kg (33 lbs).
• Sargājiet mazās detaļas un iepakojuma materiālus no bērniem.
• Use appropriate lifting techniques when moving the assembled unit due to its weight (approximately 150 lbs).
• Avoid placing the unit in areas with high humidity or direct sunlight to prevent material degradation.

4. Iepakojuma saturs

Please verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, contact customer support immediately.

• Display Case Sections (Main body, top, base)
• Cash Wrap Counter Section
• Tempered Glass Shelves (2)
• Sliding Glass Doors (for display)
• Sliding Wooden Doors (for storage)
• LED Light Strip and Power Adapter
• Lock Mechanisms and Keys (for display doors and cash wrap drawer)
• Hardware Kit (screws, connectors, shelf pins, etc.)
• Montāžas ceļvedis

5. Uzstādīšana un montāža

Assembly of this unit is required. Please refer to the detailed Montāžas ceļvedis included in your package for step-by-step instructions. Ensure you have adequate space and assistance for assembly, as the unit is large and heavy.

5.1 Produkta izmēri

This image illustrates the overall dimensions of the display cabinet, providing a clear understanding of its size for planning placement.

5.2 Aizmugure View un Uzglabāšana

The back of the unit features sliding wooden doors for secure storage beneath the display area, and the integrated cash wrap counter provides additional functionality.

5.3 Cash Wrap Counter Storage

The cash wrap counter offers multi-level storage space, including an accessible drawer and open shelves for organizing supplies and accessories.

6. Lietošanas instrukcijas

6.1 bīdāmās stikla durvis

The display section features smooth-gliding tempered glass doors. To open, gently slide the doors along their tracks. Ensure the tracks are clear of debris for optimal operation.

The front of the display cabinet features smooth-gliding tempered glass doors, allowing easy access to displayed items while maintaining visibility.

6.2 Locking Mechanisms

The display cabinet and cash wrap drawer are equipped with locks for security. Use the provided keys to lock and unlock these sections.

• Display Case Lock: Insert the key into the lock on the sliding glass doors and turn to secure or release.
• Cash Wrap Drawer Lock: Insert the key into the lock on the drawer and turn to secure or release.

The sliding glass doors of the display case are equipped with a secure lock, ensuring the safety of displayed merchandise.

The cash wrap counter includes a lockable drawer, providing secure storage for cash, documents, or other valuable items.

6.3 Regulējami plaukti

The two tempered glass shelves can be adjusted to different heights. To adjust, carefully remove items from the shelf, lift the shelf, and reposition the shelf pins in the desired slots along the vertical tracks. Ensure both sides are level before placing items back on the shelf.

The display cabinet features adjustable shelf brackets, allowing users to customize the height of the tempered glass shelves to accommodate items of different sizes.

6.4 LED apgaismojums

The integrated LED light strip provides enhanced illumination for your displayed products. Connect the power adapter to the designated port and plug it into a standard electrical outlet. Use the inline switch (if present) to turn the lights on or off.

6.5 Shelf Load Capacity

Each tempered glass shelf is designed to hold a maximum weight of 15 kg (33 lbs). Do not exceed this limit to prevent damage or injury.

The tempered glass shelves are designed for strong load-bearing capacity, capable of holding up to 15kg each, suitable for a variety of retail products.

7. Apkope

• Tīrīšana: Noslaukiet virsmas ar mīkstu, damp cloth. Avoid abrasive cleaners or solvents that may damage the finish. For glass surfaces, use a standard glass cleaner.
• Putekļu noņemšana: Regularly dust all surfaces to maintain appearance and prevent buildup.
• Aparatūras pārbaude: Periodiski pārbaudiet visas skrūves un savienojumus, lai pārliecinātos, ka tie ir cieši pievilkti. Ja nepieciešams, pievelciet tos atkārtoti.
• Stikla kopšana: Handle tempered glass shelves and doors with care to prevent chipping or breakage.

8. Traucējummeklēšana

• Problēma: Sliding doors are stiff or difficult to move.
  Risinājums: Check tracks for debris and clean if necessary. Ensure the unit is level.
• Problēma: LED gaismas nedarbojas.
  Risinājums: Verify the power adapter is securely connected to both the unit and the electrical outlet. Check if the outlet is functional.
• Problēma: Shelves appear uneven.
  Risinājums: Ensure shelf pins are inserted into corresponding slots on both sides of the vertical tracks. Adjust as needed.
• Problēma: Unit wobbles or feels unstable.
  Risinājums: Re-check all assembly hardware and tighten any loose connections. Ensure the unit is placed on a flat, level surface.

9. Specifikācijas

10. Informācija par garantiju

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation or contact the seller for specific warranty terms and conditions. Keep your proof of purchase for any warranty claims.

11. Klientu atbalsts

For assistance with assembly, missing parts, or any other inquiries, please contact the seller or manufacturer directly through the platform where the product was purchased. Have your model number (FSL/SCRC) and purchase details ready for faster service.
