Generic Replacement Belts Instruction Manual for Models 55-3504-4 and 55-3504-04

1. Ievads

This manual provides comprehensive instructions for the proper installation, usage, and maintenance of your Generic Replacement Belts. These belts are specifically designed as direct replacements for equipment requiring part numbers 55-3504-4 un 55-3504-04. By following these guidelines, you can ensure reliable power transmission, consistent performance, and extend the operational life of your machinery.

The replacement belts are manufactured to meet or exceed original equipment specifications, ensuring durability and a long service life. This 2-pack provides a convenient spare for future maintenance needs, minimizing downtime.

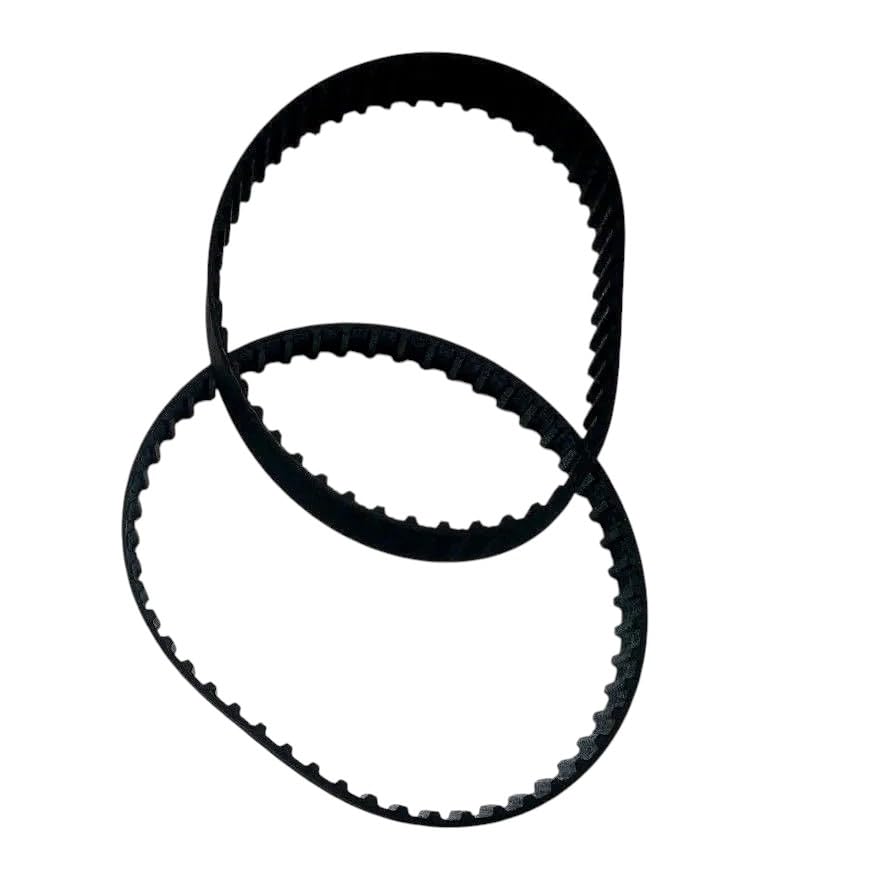

Figure 1: Generic Replacement Belts. This image displays two replacement belts, typically used in mechanical equipment for power transmission. The belts are designed to fit specific models, ensuring compatibility and proper function.

2. Uzstādīšana

Proper installation is crucial for the optimal performance and longevity of your replacement belts. Always refer to your equipment's specific service manual for detailed instructions and safety precautions before proceeding.

2.1. Drošības pasākumi

• Ensure the equipment is powered off and disconnected from its power source before beginning any work.
• Ļaujiet visām kustīgajām daļām pilnībā apstāties.
• Valkājiet atbilstošus individuālos aizsardzības līdzekļus (IAL), piemēram, cimdus un acu aizsargus.
• Be aware of pinch points and sharp edges.

2.2 Nomaiņas procedūra

1. Piekļuve jostas nodalījumam: Locate and open the access panel or cover that encloses the existing belt system. This may require removing screws or latches.
2. Atbrīvot spriedzi: Identify the tensioning mechanism (e.g., idler pulley, motor mount adjustment) and loosen it to relieve tension on the old belt.
3. Noņemiet veco jostu: Carefully remove the worn or damaged belt from the pulleys. Note its routing path for reference.
4. Pārbaudiet skriemeļus: Examine the pulleys for any wear, damage, or debris. Clean them thoroughly if necessary to ensure smooth operation with the new belt.
5. Uzstādiet jaunu jostu: Route the new replacement belt (part numbers 55-3504-4 or 55-3504-04) onto the pulleys, ensuring it follows the correct path.
6. Pielietot spriegojumu: Adjust the tensioning mechanism to apply the recommended tension to the new belt. Refer to your equipment's manual for specific tensioning guidelines. Over-tensioning can damage the belt and bearings, while under-tensioning can cause slippage.
7. Drošas piekļuves panelis: Reinstall any covers or panels removed in step 1.
8. Pārbaudes darbība: Briefly run the equipment at a low speed to confirm proper belt tracking and operation. Listen for unusual noises.

3. Lietošana

Once correctly installed, the Generic Replacement Belts (models 55-3504-4, 55-3504-04) are designed to provide reliable power transmission for your compatible equipment. No special operating procedures are required beyond the normal operation of your machinery. Ensure that the equipment is used within its specified load and speed limits to prevent premature wear on the belts and other components.

Regularly observe the belt's performance during operation. Any unusual noises, vibrations, or signs of slippage may indicate a need for inspection or adjustment.

4. Apkope

Routine maintenance helps extend the life of your replacement belts and ensures continuous, efficient operation of your equipment. The 2-pack provides a spare belt for convenient replacement during scheduled maintenance or unexpected wear.

4.1 Pārbaudes grafiks

• Vizuāla pārbaude: Periodically inspect the belts for signs of wear, such as cracks, fraying, glazing, or material loss. Check for proper alignment and tension.
• Spriegojuma pārbaude: Verify belt tension according to your equipment's manual. Belts can stretch over time, requiring re-tensioning.
• Vides faktori: Keep the belt area clean and free from oil, grease, dirt, and other contaminants that can degrade belt material.

4.2. Uzglabāšana

Store spare belts in a cool, dry place away from direct sunlight, excessive heat, and chemicals. Proper storage prevents premature aging and degradation of the belt material.

5. Traucējummeklēšana

This section addresses common issues that may arise with power transmission belts. Always ensure safety precautions are followed before performing any troubleshooting steps.

6. Specifikācijas

The following specifications apply to the Generic Replacement Belts (models 55-3504-4, 55-3504-04):

• Saderīgas ierīces: 55-3504-4, 55-3504-04
• Zīmols: Vispārējs
• Materiāls: Gumija
• Jostas stils: Apaļa josta
• Produkta izmēri: 6 collas (garums) x 0.25 collas (platums) x 0.1 collas (biezums)
• Preces svars: Aptuveni 2 unces (2 iepakojumam)
• Ražotājs: BeltMaster
• ASIN: B0GFMXVPBH
• Datums, kad pirmais pieejams: 8. gada 2026. janvāris

7. Garantija un atbalsts

7.1 Informācija par garantiju

Specific warranty details for these Generic Replacement Belts are not provided in the product information. Please refer to the retailer or manufacturer's website for any applicable warranty policies or contact the seller directly for further information regarding warranty coverage.

7.2 Klientu atbalsts

For technical assistance, installation queries, or other support needs, please contact the seller or the manufacturer, BeltMaster. Contact information may be available on your purchase receipt or the product packaging.
