1. Ievads
The SatLink WS-6909 is a versatile digital meter designed for aligning both DVB-S (satellite) and DVB-T (terrestrial) signals. Featuring a 3.5-inch high-definition TFT LCD screen, it allows users to view actual channels directly on the device, ensuring quick and accurate signal alignment. The meter includes a unique calibration system for optimal performance and supports various satellite and terrestrial signal parameters.
Piezīme: DVB-T functionality may not be supported in all regions, including America.
2. Iepakojuma saturs
Lūdzu, pārliecinieties, ka jūsu iepakojumā ir iekļautas visas tālāk norādītās preces:
- 1 x SatLink WS-6909 Satellite Meter
- 1x strāvas adapteris
- 1 x AV kabelis
- 1 x automašīnas lādētāja vads
- 1 x silikona korpuss
3. Produkts beidziesview
Familiarize yourself with the components and ports of your SatLink WS-6909 meter.
3.1. attēls: Priekšpuse view of the SatLink WS-6909 meter, showing the 3.5-inch LCD screen, control buttons, and numeric keypad, alongside its protective orange silicone case.
3.2. attēls: Apakšā view of the device, featuring the main power switch, DC power input port, and a USB port for software upgrades.
3.3. attēls: Sānu view of the meter, illustrating the AV IN and AV OUT ports for connecting external video sources or displays.

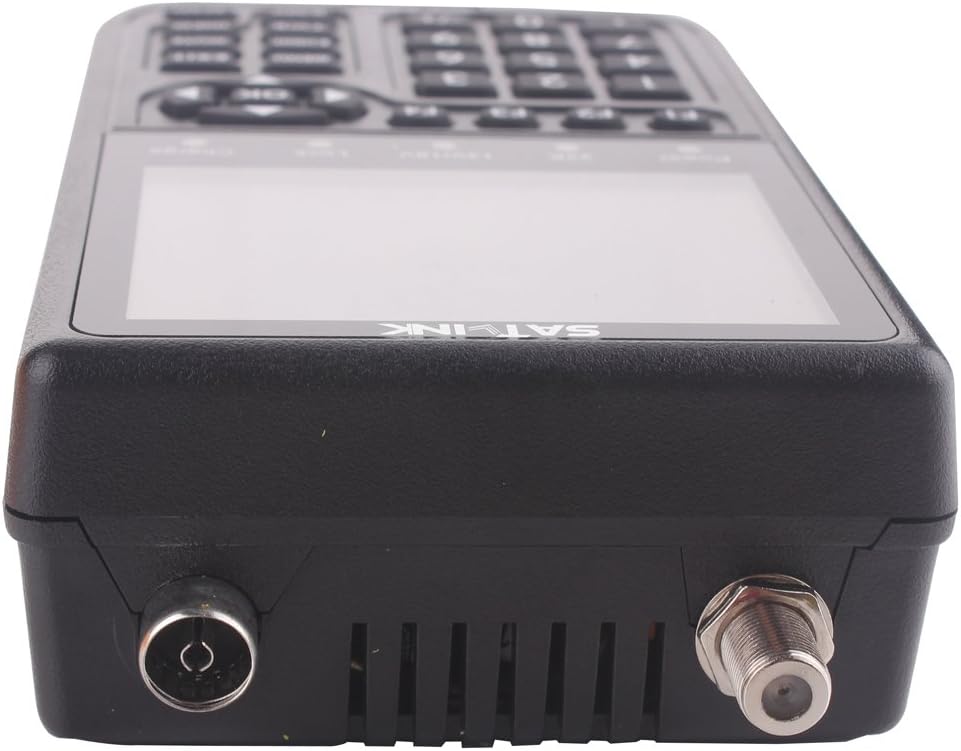

3.4. attēls: Augšā view of the device, displaying the F-connector for satellite input and the standard antenna input for terrestrial signals.
4. Iestatīšana
4.1. Ierīces uzlāde
- Connect the provided Power Adaptor to the DC input port on the bottom of the meter.
- Plug the Power Adaptor into a standard electrical outlet. The 'Charge' indicator light on the device will illuminate.
- Allow the device to charge fully before initial use. A full charge provides approximately 4 hours of operating time.
- Alternatively, use the Car Charger Cable to charge the device in a vehicle.
4.2. Sākotnējā ieslēgšana
- Pārliecinieties, vai ierīce ir pienācīgi uzlādēta.
- Flip the main power switch located on the bottom of the meter to the 'ON' position.
- The device will power on and perform an automatic calibration for optimal performance.
4.3 Connecting Antennas/LNBs
- For satellite signal reception (DVB-S), connect the LNB cable from your satellite dish to the F-connector input on the top of the meter.
- For terrestrial signal reception (DVB-T), connect your terrestrial antenna cable to the standard antenna input on the top of the meter.
5. Lietošanas instrukcijas
5.1. Pamata navigācija
- Izmantojiet IZVĒLNE pogu, lai piekļūtu galvenajai izvēlnei.
- Navigate through menu options using the directional arrow buttons (AUGŠU/UZ LEJU/PA kreisi/pa labi).
- Nospiediet pogu OK button to confirm selections or enter sub-menus.
- Izmantojiet EXIT pogu, lai atgrieztos iepriekšējā ekrānā vai izietu no izvēlnes.
- The numeric keypad can be used for direct input of values such as frequencies or channel numbers.
5.2 DVB-S (Satellite) Signal Finding
- From the main menu, select the DVB-S measurement mode.
- Configure parameters such as satellite, transponder frequency, symbol rate, and polarity. These settings can be modified by the user.
- The meter supports DISEQC 1.0, 1.1, 1.2, and 22kHz Tone. Adjust these settings as required for your LNB configuration.
- The meter provides LNB power supply options of 18V/13V (maximum 400mA).
- Align your satellite dish while observing the signal strength, quality, BER (Bit Error Rate), S/N (Signal-to-Noise ratio), and PWR (Power) on the 3.5-inch LCD screen.
- The device will provide a sound and light alarm when a signal is locked.
- The meter can automatically calculate Azimuth (AZ) and Elevation (EL) angles to assist with dish alignment.
- Search modes include Auto, Blind, and Manual.
5.3 DVB-T (Terrestrial) Signal Finding
- From the main menu, select the DVB-T measurement mode.
- Configure the desired frequency range.
- The meter supports ANT power supply options of 5V/12V/24V for active antennas.
- Align your terrestrial antenna while observing the signal strength, quality, MER (Modulation Error Ratio), S/N (Signal-to-Noise ratio), and PWR (Power) on the LCD screen.
- The meter supports multichannel checks and demodulation types including QPSK, 16QAM, and 64QAM.
- Search modes include Auto and Manual.
5.4 Software Upgrades
The USB port on the bottom of the device is used for software upgrades. Refer to the manufacturer's webvietne, kurā ir pieejama jaunākā programmatūra un instrukcijas.
6. Apkope
6.1. Tīrīšana
- Wipe the device exterior with a soft, dry cloth.
- Do not use liquid cleaners or solvents, as they may damage the device.
6.2 Akumulatora kopšana
- Lai pagarinātu akumulatora darbības laiku, izvairieties no ierīces pakļaušanas ekstremālām temperatūrām.
- Recharge the battery regularly, even if the device is not in frequent use.
6.3. Programmatūras atjauninājumi
Periodically check the manufacturer's official website for available software updates. Updating the firmware can improve performance and add new features.
7. Traucējummeklēšana
| Problēma | Iespējamais cēlonis | Risinājums |
|---|---|---|
| Ierīce neieslēdzas | Low battery; Power switch off; Faulty power adapter | Charge the battery; Ensure power switch is ON; Try a different power source |
| No signal detected (DVB-S) | Incorrect satellite/transponder settings; LNB not powered; Dish misalignment; Cable issue | Verify satellite and transponder settings; Check LNB power (13/18V); Adjust dish alignment; Inspect cable connections |
| No signal detected (DVB-T) | Incorrect frequency; Antenna not powered (if active); Antenna misalignment; Regional DVB-T incompatibility | Verify frequency settings; Check ANT power (5/12/24V); Adjust antenna alignment; Confirm DVB-T support in your region |
| Slikta signāla kvalitāte | Fine-tuning needed; Obstructions; Damaged LNB/antenna | Make small adjustments to alignment; Clear line of sight; Replace faulty components if necessary |
| Ekrāns sastingst vai nereaģē | Programmatūras kļūme | Perform a hard reset by turning the power switch OFF and then ON again. If persistent, consider a software upgrade. |
8. Specifikācijas
- Displejs: 3.5 collu augstas izšķirtspējas TFT LCD ekrāns
- Akumulators: 8.4V/3000mAh Li-ion, Max Operating Time: 4 hours
- DVB-S Input Frequency: 950-2150MHz
- DVB-S Input Level: -65 līdz -25 dBm
- DVB-S Input Impedance: 75Ω
- DISEQC Support: 1.0, 1.1, 1.2 and 22kHz Tone
- LNB Power Supply: 18V/13V (IMax 400mA)
- DVB-T Frequency Range: 46MHz-862MHz
- DVB-T Level Range: 40dBµV-110dBµV
- DVB-T Input Impedance: 75Ω
- DVB-T Demodulation: QPSK, 16QAM, 64QAM
- ANT Power Supply: 5V/12V/24V
- Mērījumu veidi: Signal strength, quality, BER, S/N, PWR (DVB-S); Signal strength, quality, MER, S/N, PWR (DVB-T)
- Meklēšanas režīmi: Auto, Blind, Manual
- Produkta izmēri: 3.54 x 1.77 x 6.46 collas
- Preces svars: 1.76 mārciņas
- Modeļa numurs: WS 6909
9. Garantija un atbalsts
For technical assistance, warranty information, or customer support, please contact your original retailer or refer to the manufacturer's official website for contact details. Please have your product model number (WS 6909) and purchase information ready when seeking support.
