TAMO Perfect Dinner Automatic Pet Food Dispenser V2 User Manual

Ievads

The TAMO Perfect Dinner Automatic Pet Food Dispenser V2 is designed to provide scheduled and portion-controlled meals for your pet, ensuring they are fed consistently even when you are not home. This device features a programmable feeding schedule, voice recording for meal calls, and an easy-to-read LCD display for convenient operation.

1. attēls: Priekšpuse view of the TAMO Perfect Dinner Automatic Pet Food Dispenser V2, showing the clear food hopper filled with kibble, the main unit with an LCD screen, and the detachable food bowl.

Drošības informācija

• Read all instructions carefully before operating the dispenser.
• Keep the dispenser away from water and moisture. Do not immerse any part of the unit in water.
• Use only the provided AC adapter. If using batteries, ensure they are inserted correctly according to polarity.
• This product is designed for dry pet food only. Do not use with wet food, canned food, or treats that may jam the dispenser mechanism.
• Sargāt no maziem bērniem un mājdzīvniekiem, kad netiek lietots vai montāžas laikā.
• Nemēģiniet ierīci izjaukt vai remontēt pats. Lai saņemtu palīdzību, sazinieties ar klientu atbalsta dienestu.
• Ensure the dispenser is placed on a stable, level surface to prevent tipping.

Iepakojuma saturs

Lūdzu, pārbaudiet iepakojuma saturu, lai pārliecinātos, ka visas preces ir klāt un labā stāvoklī:

• TAMO Perfect Dinner Automatic Pet Food Dispenser V2 Main Unit
• Food Hopper (transparent container)
• Food Bowl (detachable)
• Maiņstrāvas adapteris
• Lietotāja rokasgrāmata (šis dokuments)

2. attēls: The automatic pet food dispenser alongside its retail packaging, illustrating the product's appearance as received.

Produkts beidziesview

Familiarize yourself with the main components of your pet food dispenser:

• Pārtikas piltuve: Transparent container for storing dry pet food. Capacity up to 7 lbs.
• Galvenā vienība: Houses the dispensing mechanism, control panel, LCD display, and battery compartment.
• LCD displejs: Backlit screen showing time, programmed meals, meal sizes, and meals served.
• Vadības pogas: Buttons for setting time, programming meals, adjusting portions, and recording voice messages.
• Mikrofons: For recording voice messages.
• Runātājs: For playing recorded voice messages.
• Pārtikas bļoda: Detachable bowl for pets to eat from.
• Barošanas ports: Maiņstrāvas adaptera pievienošanai.
• Akumulatoru nodalījums: (Located on the bottom) For optional D-cell batteries (not included) as a backup power source.

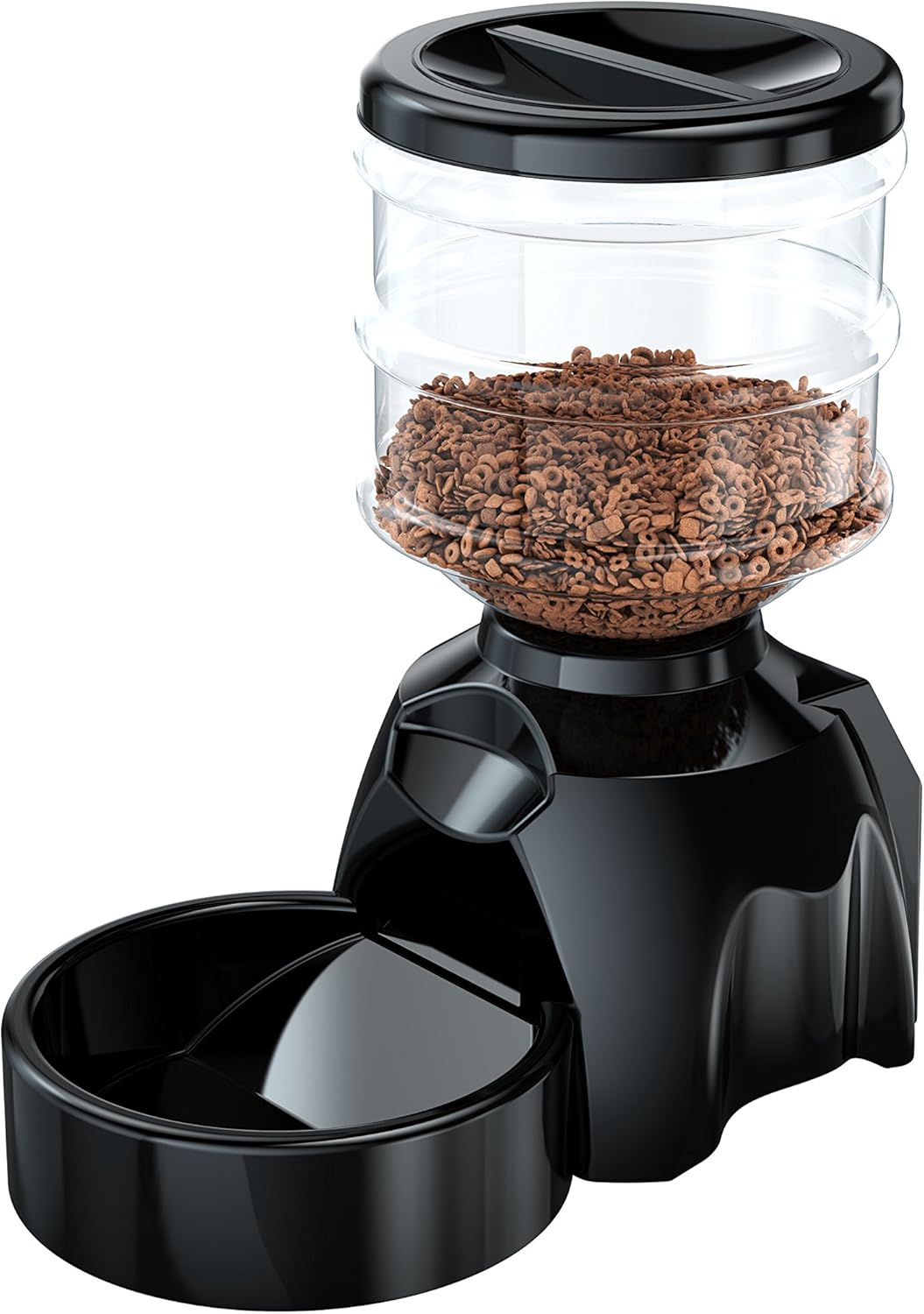

3. attēls: Sānu view of the pet food dispenser, highlighting its compact design and the connection point for the food bowl.

Iestatīšana

1. Izpakošana un montāža

1. Uzmanīgi izņemiet visas sastāvdaļas no iepakojuma.
2. Attach the food bowl to the main unit by sliding it into the designated slot until it clicks into place.
3. Place the food hopper onto the main unit, ensuring it is securely seated.

2. Ierīces barošana

• Maiņstrāvas jauda: Connect the AC power adapter to the power port on the back of the main unit and plug it into a standard wall outlet.
• Akumulatora rezerves barošana (pēc izvēles): Par spēku utage protection, open the battery compartment on the bottom of the unit and insert three (3) D-cell batteries (not included), observing the correct polarity (+/-).

3. Pārtikas piltuves piepildīšana

1. Remove the lid from the top of the food hopper.
2. Pour dry pet food into the hopper. Ensure the food is of appropriate size to prevent jamming (recommended kibble size: 0.2-0.6 inches / 5-15mm).
3. Droši uzlieciet vāku.

Lietošanas instrukcijas

1. Pašreizējā laika iestatīšana

1. Nospiediet un turiet "IESTATĪT" button until the hour digit on the LCD display starts blinking.
2. Izmantojiet "AUGŠUP" un "LEJU" buttons to adjust the hour. Pay attention to AM/PM indicator.
3. Nospiediet "IESTATĪT" again to move to the minute digit. Adjust minutes using "AUGŠUP" un "LEJU".
4. Nospiediet "IESTATĪT" vēlreiz, lai apstiprinātu un izietu no laika iestatīšanas režīma.

4. attēls: Detalizēts view of the dispenser's LCD screen and control buttons, illustrating the user interface for setting time and programming meals.

2. Programming Meals (Up to 6 Meals per Day)

1. Nospiediet pogu "MEAL" button to enter meal programming mode. The display will show "MEAL 1" and the hour will blink.
2. Set the desired feeding time for Meal 1 using the "AUGŠUP" un "LEJU" buttons for hour and minute, pressing "IESTATĪT" to confirm each.
3. After setting the time, the portion size will blink. Use "AUGŠUP" un "LEJU" to select the number of portions (1 portion = approx. 1/3 cup). The dispenser supports 1 to 99 portions per meal.
4. Nospiediet "IESTATĪT" to confirm the portion size for Meal 1.
5. Repeat steps 1-4 for additional meals (MEAL 2, MEAL 3, etc.) up to a maximum of 6 meals. If you do not wish to program all 6 meals, simply exit the programming mode by pressing the "MEAL" button repeatedly until you return to the main display, or wait for it to time out.

3. Voice Recording (10 Seconds)

1. Nospiediet un turiet "REC" button. The microphone icon on the LCD will light up.
2. Speak clearly into the microphone located near the LCD screen. You have up to 10 seconds to record your message (e.g., "Here, kitty, kitty!" or "Dinner time!").
3. Atlaidiet "REC" pogu, lai apturētu ierakstīšanu.
4. To play back your recording, briefly press the "PLAY" button. The recorded message will play before each scheduled meal.

4. Manuālā barošana

To dispense food manually at any time:

• Īsi nospiediet pogu "MANUĀLAIS" button. One portion of food will be dispensed immediately.
• You can press this button multiple times for additional portions.

5. attēls: A cat observing the automatic pet feeder, demonstrating its use in a home environment.

6. attēls: A small dog consuming food from the dispenser's bowl, highlighting the product's suitability for various pet sizes.

Apkope

1. Tīrīšana

• Always unplug the dispenser and remove batteries before cleaning.
• The food bowl and food hopper are detachable and can be washed with mild soap and water. Rinse thoroughly and dry completely before reattaching.
• Noslaukiet galveno ierīci ar mīkstu, damp drānu. Nelietojiet abrazīvus tīrīšanas līdzekļus un neiegremdējiet galveno ierīci ūdenī.
• Ensure all parts are completely dry before refilling with food or reconnecting power.

2. Uzglabāšana

If storing the dispenser for an extended period:

• Empty any remaining food from the hopper and clean all components.
• Izņemiet baterijas no bateriju nodalījuma.
• Uzglabājiet ierīci vēsā, sausā vietā, pasargājot no tiešiem saules stariem.

Problēmu novēršana

Specifikācijas

Klientu atbalsts

For any questions, technical assistance, or warranty inquiries regarding your TAMO Perfect Dinner Automatic Pet Food Dispenser V2, please contact TAMO Customer Care. Our US-based team is dedicated to providing prompt support and ensuring your satisfaction.

Please refer to the product packaging or the official TAMO webvietne, kurā atrodama visjaunākā kontaktinformācija.
