Loctite 620 Retaining Compound Instruction Manual

1. Ievads

The Loctite 620 Retaining Compound is a high-strength, high-temperature anaerobic adhesive designed for bonding cylindrical fitting parts. This product is formulated to lock and secure metal cylindrical assemblies, prevent metal fretting and corrosion, and seal against leakage. It is suitable for applications requiring high temperature resistance and robust bonding.

2. Produkts beidziesview

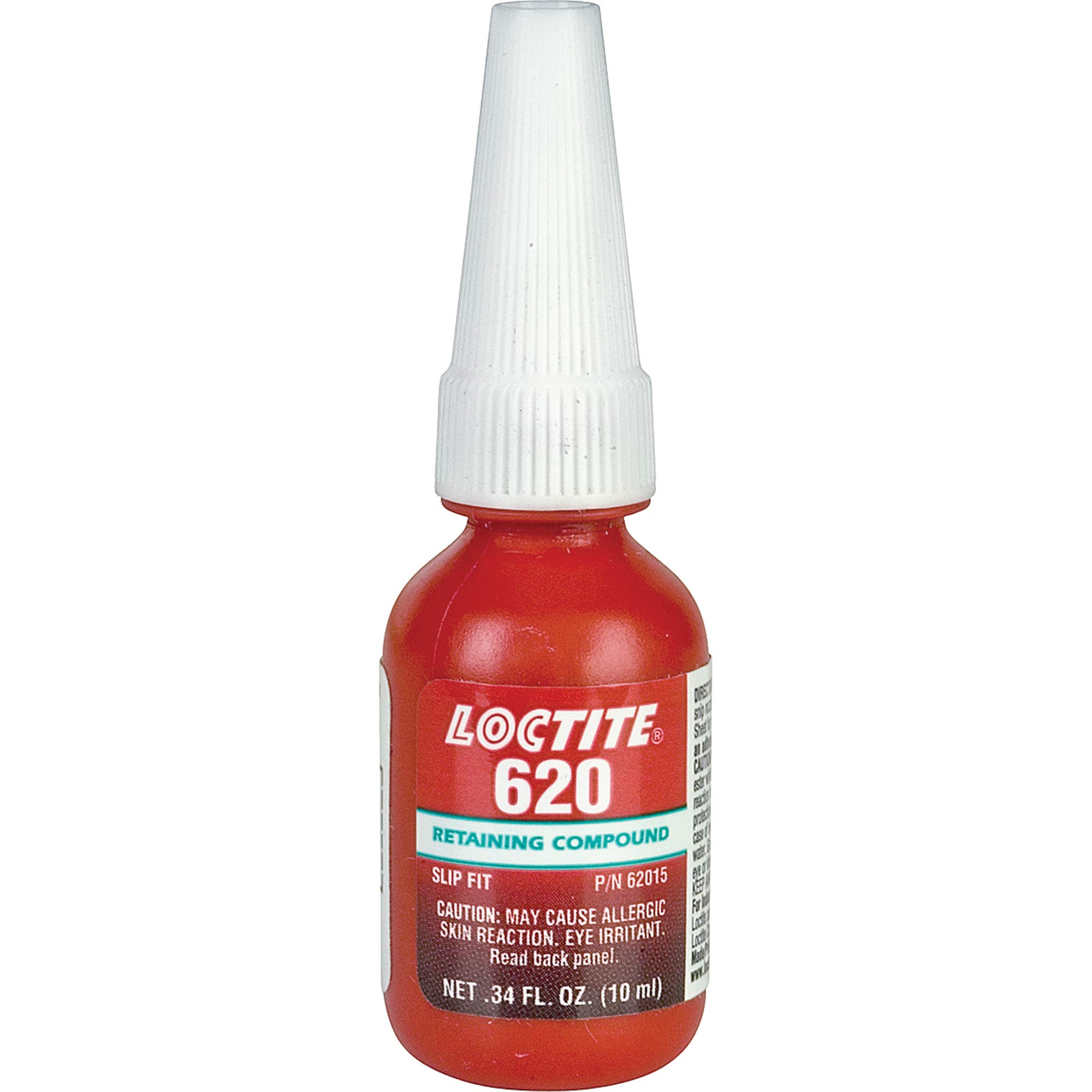

Image: Loctite 620 Retaining Compound in a 10 mL bottle. This green-colored adhesive is used for securing cylindrical metal parts.

Loctite 620 is a high-viscosity liquid retaining compound. Key characteristics include:

• Krāsa: Zaļš
• Gap Fill: Up to 0.015 inches (0.38 mm) maximum
• Viskozitāte: 8500.0 cP
• Shear Strength: 3800 psi
• Temperatūras diapazons: -65.0°F (-54°C) līdz 450.0°F (232°C)
• Chemical Compound: Acrylic Ester
• Curing Method: Anaerobic (cures in the absence of air when confined between close-fitting metal surfaces)
• Lietojumprogrammas: Cylindrical joint assemblies
• Piemērojamie materiāli: Steel, Most Metals
• Smarža: Viegls
• Pretestība: Acetone, Brake Fluid, Corrosive Process, Heat, Unleaded Petrol, Wear
• Packing Type: Pudele
• Apjoms: 10 ml

3. Drošības informācija

Always prioritize safety when handling chemical products. Consult the Material Safety Data Sheet (MSDS) for comprehensive safety information before use. The MSDS for Loctite 620 Retaining Compound (e.g., 62015 Retaining Compound Slip Fit 620.pdf) provides detailed guidance on safe handling, storage, and emergency procedures.

• Individuālie aizsardzības līdzekļi: Wear appropriate gloves and eye protection (safety glasses or goggles) to prevent skin and eye contact.
• Ventilācija: Lietojiet labi vēdināmā telpā, lai izvairītos no tvaiku ieelpošanas.
• Uzglabāšana: Store in a cool, dry place, away from direct sunlight and incompatible materials. Keep container tightly closed when not in use.
• Pirmā palīdzība: In case of contact, refer to the MSDS for specific first aid measures.
• Atbrīvošanās: Dispose of product and packaging in accordance with local, regional, national, and international regulations.
• Turiet nepieejamā vietā: Glabāt bērniem un mājdzīvniekiem nepieejamā vietā.

4. Uzstādīšana un virsmas sagatavošana

Proper surface preparation is critical for optimal performance of the retaining compound.

1. Tīras virsmas: Thoroughly clean all mating surfaces to remove any oil, grease, dirt, or other contaminants. Use a suitable industrial cleaner or degreaser.
2. Sausas virsmas: Ensure all surfaces are completely dry before applying the compound. Moisture can interfere with the curing process.
3. Roughening (Optional): For maximum adhesion on passive metals or large gaps, light abrasion of the surfaces may be beneficial, followed by cleaning.

5. Lietošanas instrukcija (lietošana)

Follow these steps for effective application of Loctite 620 Retaining Compound:

1. Dispense Compound: Apply a sufficient amount of Loctite 620 Retaining Compound to one or both mating surfaces of the cylindrical assembly. Ensure complete coverage of the bond area.
2. Salikt detaļas: Quickly assemble the parts. The anaerobic curing process begins when the compound is confined between the metal surfaces in the absence of air.
3. Sacietēšanas laiks:
   • Fix Cure Time: Approximately 30 hours at 77°F (25°C). This is the time required for the assembly to achieve sufficient handling strength.
   • Pilns sacietēšanas laiks: Approximately 24 hours at 77°F (25°C). This is the time required for the product to achieve its maximum strength. Note: Cure times can vary depending on temperature, gap, and substrate material.
4. Pēc montāžas: Avoid disturbing the assembly during the initial fix cure period to ensure proper bonding.

6. Apkope un uzglabāšana

Proper storage ensures the longevity and effectiveness of the product.

• Uzglabāšanas apstākļi: Store the Loctite 620 Retaining Compound in its original container in a cool, dry, and well-ventilated area. Ideal storage temperature is between 46°F (8°C) and 82°F (28°C).
• Konteineru blīvēšana: Keep the bottle tightly closed when not in use to prevent air exposure, which can initiate curing.
• Derīguma termiņš: Refer to the product packaging or technical data sheet for specific shelf life information.

7. Traucējummeklēšana

Ja uzklāšanas vai sacietēšanas laikā rodas problēmas, ņemiet vērā sekojošo:

• No Cure or Slow Cure:
  • Virsmas tīrība: Ensure surfaces were thoroughly cleaned and degreased. Contaminants can inhibit curing.
  • Anaerobic Conditions: Verify that the compound is fully confined between metal surfaces with minimal air exposure. Anaerobic adhesives require the absence of air to cure.
  • Temperatūra: Curing speed is temperature-dependent. Lower temperatures will result in slower cure times. Ensure application is within recommended temperature ranges.
  • Substrāta materiāls: Some metals (e.g., stainless steel, zinc, aluminum) are less active and may cure slower. An activator may be required for passive substrates or large gaps, though not explicitly mentioned for this product, it's a general anaerobic adhesive troubleshooting step.
• Slikta saķere:
  • Gap Size: Ensure the gap between parts is within the specified 0.015-inch maximum. Excessive gaps can lead to incomplete curing and poor strength.
  • Virsmas sagatavošana: Re-evaluate surface cleaning and drying procedures.

8. Specifikācijas

9. Informācija par garantiju

Specific warranty details for the Loctite 620 Retaining Compound are not provided within this manual. For information regarding product warranty, please contact Loctite customer support or refer to the official Loctite webvietne.

10. Atbalsts un kontaktinformācija

For further assistance, technical data sheets, or safety information, please refer to the official Loctite resources.

• Official Loctite Store: Visit the Loctite Store on Amazon
• Materiālu drošības datu lapas (MSDS): Always consult the latest MSDS for detailed safety and handling instructions.
• Tehniskais atbalsts: Contact Loctite directly for product-specific technical support.
