1. Ievads
This manual provides detailed instructions for the installation, operation, and maintenance of your ESX VN715-E39-DAB In-Car Navigation and Multimedia System. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage. Keep this manual for future reference.
2. Produkts beidziesview un funkcijas
The ESX VN715-E39-DAB is an advanced in-car multimedia system designed to enhance your driving experience with navigation, entertainment, and connectivity features. It integrates seamlessly into compatible BMW vehicles.
Galvenās funkcijas:
- High-Resolution 8-inch Touchscreen: Provides clear visuals and intuitive control.
- Advanced Android i15 Operating System: Offers a familiar and customizable user interface.
- Google Maps Navigation: Supports both online and offline navigation for reliable route guidance.
- Mobile Internet Connectivity: Connects via Wi-Fi hotspot for online services.
- DAB+ digitālais radio: Includes a DAB antenna for high-quality digital radio reception with station logos.
- AM/FM Radio with RDS: Standard analog radio reception with Radio Data System functionality.
- Multi-format DVD Player: Supports DVD, DVD-R/RW, DVD+R/RW, VCD, CD, CD Text, CD-R/RW, and MP3 formats.
- Bluetooth Hands-Free Kit: Enables safe phone calls and audio streaming with an internal microphone and optional external microphone connection.
- Viedtālruņa integrācija: Connect iPhone or Android smartphones via USB for various functions.
- Balss vadība: Utilize voice commands through a connected smartphone.
- Audio izejas: Iepriekšamplifier outputs for front, rear, subwoofer, and center channels.
- Kameras ieeja: One adjustable camera input for reverse cameras.
- Papildu ieejas/izejas: One AUX video input, two audio/video outputs, and one AUX audio input.
- USB porti: Two USB ports for media and connectivity.
- Micro SD kartes slots: Dedicated slot for navigation data and media files.
- Pielāgošana: Personalize with customizable logos and wallpapers.
- Authenticity Certificate: Included with the product.
3. Iestatīšana un instalēšana
Installation of the ESX VN715-E39-DAB system requires technical knowledge and should ideally be performed by a qualified professional. Incorrect installation can lead to damage to the device or vehicle electrical system.
Saderība:
This unit is compatible with specific BMW models and connector types:
- BMW 5 Series E39 (1996-2001) with 17-pin system connector.
- BMW 5 Series E39 (2002-2003) with 40-pin system connector.
- BMW X5 E53 (2000-2001) with 17-pin system connector.
- BMW X5 E53 (2002-2007) with 40-pin system connector.
- BMW M5 (1996-2003) with 17/40-pin system connector.
Vispārīgi uzstādīšanas soļi (ieteicams veikt profesionālu uzstādīšanu):
- Atvienojiet akumulatoru: Always disconnect the vehicle's battery before starting any electrical work.
- Noņemt esošo vienību: Carefully remove the factory radio or navigation system from the dashboard.
- Pievienojiet vadu instalāciju: Connect the appropriate wiring harness (17-pin or 40-pin) to the vehicle's electrical system and the ESX unit. Ensure all connections are secure.
- Pievienojiet antenas: Connect the GPS antenna, DAB antenna, and radio antenna to their respective ports on the unit. Position the antennas for optimal reception.
- Pievienojiet perifērijas ierīces: Connect any optional accessories such as a reverse camera, external microphone, USB devices, or auxiliary inputs/outputs.
- Uzstādiet ierīci: Securely mount the ESX unit into the dashboard opening.
- Atkārtoti pievienojiet akumulatoru: Pievienojiet transportlīdzekļa akumulatoru atpakaļ un pārbaudiet sistēmu.
4. Lietošanas instrukcijas
Familiarize yourself with the touchscreen interface and physical buttons for optimal use.
4.1 Pamatdarbība

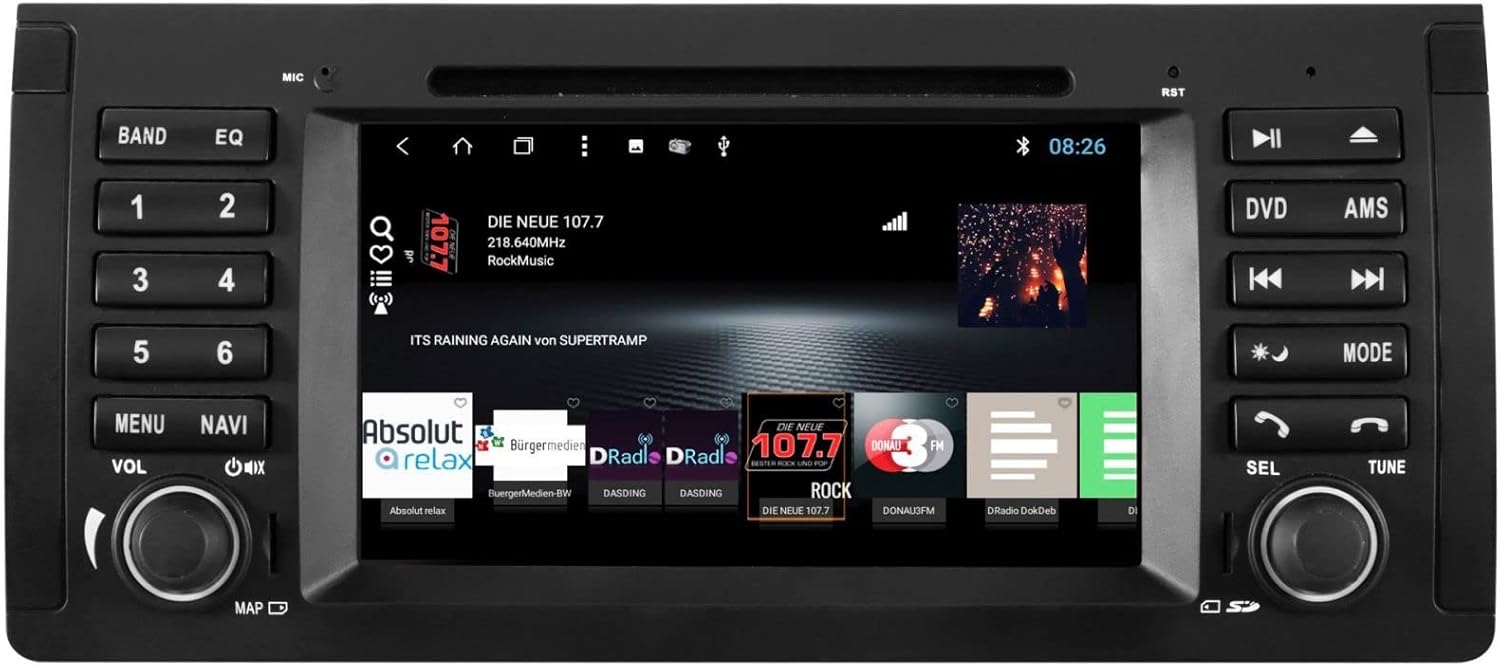

- Ieslēgšana/izslēgšana: Press and hold the power button (usually the VOL knob) to turn the unit on or off. A short press typically mutes or unmutes the audio.
- Skaļuma kontrole: Rotate the VOL knob to adjust the audio volume.
- Skārienekrāna interfeiss: Pārvietojieties pa izvēlnēm un lietotnēm, pieskaroties, velkot un saspiežot pirkstus 8 collu skārienekrānā.
4.2. Navigācija
Access the navigation application (e.g., Google Maps) from the home screen. Input your destination, and the system will provide turn-by-turn directions. Ensure GPS antenna is properly connected for accurate positioning.
4.3 Radio (DAB+/AM/FM)
- Izvēlieties režīmu: Tap the 'Radio' or 'DAB+' icon on the home screen or press the 'BAND' button.
- Skenēšanas stacijas: Use the 'AMS' (Auto Memory Store) button or on-screen controls to scan and save available stations.
- Melodija: Manually tune using the 'TUNE' knob or on-screen frequency controls.
- Iepriekš iestatījumi: Save your favorite stations to preset buttons (1-6) for quick access.
4.4 Bluetooth savienojamība
- Savienošana pārī: Go to the Bluetooth settings on the unit and your smartphone. Meklēt available devices and select 'ESX VN715-E39-DAB'. Enter the PIN if prompted (usually '0000' or '1234').
- Brīvroku zvani: Kad ierīces ir savienotas pārī, varat veikt un saņemt zvanus tieši no ierīces.
- Audio straumēšana: Play music from your smartphone via Bluetooth A2DP.
4.5 Media Playback (DVD/USB/SD)
- DVD: Insert a DVD into the disc slot. The system will automatically switch to DVD mode or prompt you to select it.
- USB/SD: Insert a USB drive into a USB port or an SD card into the Micro SD slot. Access media files through the 'Media' or 'File Explorer' application.
5. Apkope
Regular maintenance ensures the longevity and optimal performance of your ESX VN715-E39-DAB system.
- Ekrāna tīrīšana: Skārienekrāna maigai noslaukšanai izmantojiet mīkstu, nepūkošu drānu. Noturīgus traipus var viegli notīrīt.ampNoslaukiet drānu ar ūdeni vai ekrānam drošu tīrīšanas līdzekli. Izvairieties no spēcīgām ķīmiskām vielām.
- Programmatūras atjauninājumi: Periodically check for software updates from the manufacturer's official website or through the unit's system settings (if available) to ensure you have the latest features and bug fixes.
- Disc Drive Care: Keep the DVD slot free of dust and debris. Avoid inserting damaged or non-standard discs.
6. Traucējummeklēšana
If you encounter issues with your unit, refer to the following common troubleshooting steps:
| Problēma | Iespējamais cēlonis | Risinājums |
|---|---|---|
| Nav spēka | Vaļīgs strāvas savienojums, izdedzis drošinātājs, problēma ar transportlīdzekļa akumulatoru. | Check power cables and fuse. Ensure vehicle battery is charged. Consult a professional if issues persist. |
| Nav skaņas | Volume muted, speaker wires disconnected, incorrect audio source. | Check volume level and mute status. Verify speaker connections. Select the correct audio source. |
| GPS signāls pazudis | GPS antenna improperly connected or obstructed, unit in an area with poor satellite reception. | Pārliecinieties, vai GPS antena ir droši pievienota un tai ir brīvs view debesu. Pārvietojieties uz atklātu vietu. |
| Bluetooth savienošanas pārī kļūme | Bluetooth not enabled on device, incorrect PIN, device out of range. | Ensure Bluetooth is active on both devices. Re-enter PIN. Bring devices closer. Restart both devices. |
| Skārienekrāns nereaģē | Sistēma sasalst, uz ekrāna ir netīrumi. | Perform a soft reset (refer to device settings or power cycle). Clean the screen. |
Ja šīs darbības neatrisina problēmu, lūdzu, sazinieties ar klientu atbalsta dienestu vai kvalificētu servisa tehniķi.
7. Specifikācijas
Detailed technical specifications for the ESX VN715-E39-DAB unit:
- Zīmols: ESX paplašinājums
- Modelis: VN715-E39-DAB
- Ekrāna izmērs: 8 collas
- Displeja veids: LCD
- Operētājsistēma: Android i15
- Savienojamības tehnoloģija: Bluetooth, USB, Wi-Fi (via hotspot)
- Multivides veids: DVD, DVD-R/RW, DVD+R/RW, VCD, CD, CD Text, CD-R/RW, MP3, USB, Micro SD
- Radio uztvērējs: DAB+, AM/FM with RDS
- Navigācija: Google Maps (online/offline)
- Saderība: BMW 5 Series E39 (1996-2003), BMW X5 E53 (2000-2007), BMW M5 (1996-2003)
- Izcelsme: Ķīna
8. Garantija un atbalsts
For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support, please visit the official ESX website or contact their customer service department. Ensure you have your model number (VN715-E39-DAB) and proof of purchase available when seeking support.
