DIYmall Mini PiTFT 1.14" LCD Display

Ievads

This manual provides essential information for the setup, operation, and maintenance of your DIYmall Mini PiTFT 1.14" LCD Display. This compact color TFT add-on is designed for use with Raspberry Pi computers, offering a 135x240 pixel IPS display with high contrast and visibility. It connects via the SPI interface and operates at 3.3V, utilizing the ST7789 driver.

Iestatīšana

The Mini PiTFT display is designed to snap directly onto the GPIO pins of your Raspberry Pi. Ensure proper alignment before gently pressing the display onto the pins. The display uses the SPI interface for communication.

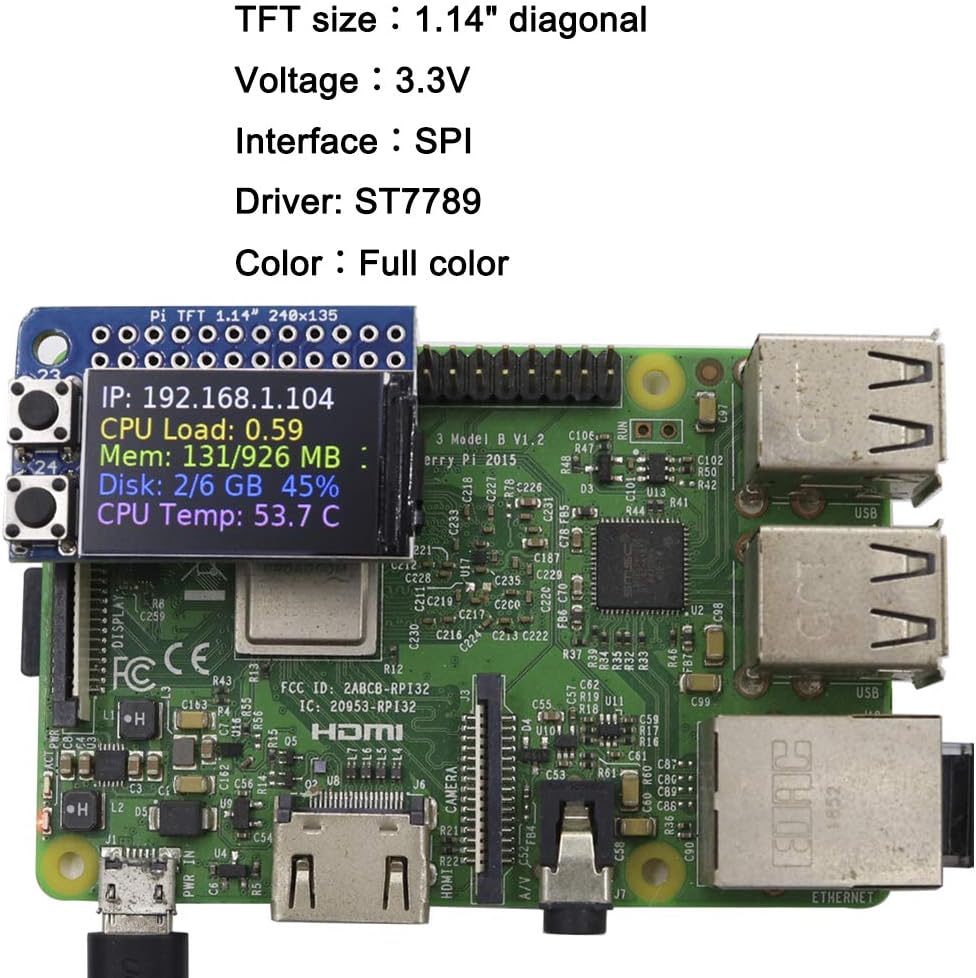

Image: The Mini PiTFT display connected to a Raspberry Pi, displaying system status information.

For detailed usage instructions, including driver installation and software configuration, please refer to the official documentation available online. A comprehensive guide can be found at: https://github.com/IOT-MCU/Mini-PiTFT-for-Raspberry-Pi/wiki/Usage

Lietošanas instrukcijas

Once correctly set up and configured with the necessary drivers and software, the Mini PiTFT display will function as a small output screen for your Raspberry Pi. Its IPS technology ensures good readability and high contrast from various viewing angles, despite its compact 1.14" diagonal size.

The display can be programmed to show various types of information, such as system statistics (IP address, CPU load, memory usage, disk space, CPU temperature), custom messages, or graphical elements, depending on your application and software implementation.

Attēls: Detalizēts view of the Mini PiTFT module.

Apkope

To ensure the longevity and optimal performance of your Mini PiTFT display, follow these maintenance guidelines:

• Tīrīšana: Use a soft, dry, lint-free cloth to gently wipe the display surface. Avoid using liquid cleaners or abrasive materials, which can damage the screen.
• Apstrāde: Handle the display by its edges to avoid touching the screen or the electronic components.
• Uzglabāšana: Store the display in a cool, dry environment, away from direct sunlight and extreme temperatures.
• Jauda: Always ensure the Raspberry Pi is powered off before attaching or detaching the display to prevent electrical damage.

Problēmu novēršana

If you encounter issues with your Mini PiTFT display, consider the following troubleshooting steps:

• Displejs neiedegas:
  • Verify that the display is correctly seated on the Raspberry Pi's GPIO pins.
  • Ensure the Raspberry Pi is powered on and functioning correctly.
  • Confirm that the necessary drivers and software are installed and configured as per the online usage guide.
• Incorrect Display Output:
  • Check your software configuration and scripts for errors.
  • Ensure the correct display driver (ST7789) is being used in your software.
• Fiziski bojājumi: Inspect the display and its connections for any visible damage. If damage is present, contact the seller for assistance.

For more advanced troubleshooting or specific software issues, refer to the online documentation or community forums related to Raspberry Pi and ST7789 displays.

Specifikācijas

Garantijas informācija

For specific warranty details regarding your DIYmall Mini PiTFT 1.14" LCD Display, please refer to the purchase documentation or contact the seller directly. Warranty terms may vary based on the point of purchase and regional regulations.

Atbalsts

Ja jums nepieciešama papildu palīdzība vai ir jautājumi, kas nav aplūkoti šajā rokasgrāmatā, lūdzu, izmantojiet šādus resursus:

• Tiešsaistes dokumentācija: The GitHub wiki page provides detailed technical information and usage exampmazāk: https://github.com/IOT-MCU/Mini-PiTFT-for-Raspberry-Pi/wiki/Usage
• Pārdevēja atbalsts: Contact DIYmall directly through their official channels or the platform where the product was purchased for product-specific inquiries.
• Kopienas forumi: Raspberry Pi and electronics enthusiast communities often provide valuable insights and solutions for similar display modules.
