Ievads
This manual provides essential information for the safe and proper installation and use of your Logilink BP0117 TV Wall Mount. Please read these instructions thoroughly before beginning installation and retain them for future reference. This fixed wall mount is designed to securely hold 43-80 inch flat and curved monitors with a maximum load capacity of 40 kg (88 lbs).
Drošības informācija
- Ensure the wall structure can safely support the combined weight of the mount and the TV.
- Nepārsniedziet maksimālo kravnesību 40 kg (88 mārciņas).
- Use appropriate tools and follow all drilling and mounting instructions carefully.
- Always use a stud finder to locate wall studs for secure mounting, especially for drywall installations.
- Ja rodas šaubas par kādu no uzstādīšanas daļām, konsultējieties ar kvalificētu speciālistu.
- Uzstādīšanas laikā turiet prom bērnus un mājdzīvniekus.
Iepakojuma saturs
Verify that all components are present before beginning installation. Refer to the included parts list in your product packaging for a complete inventory.

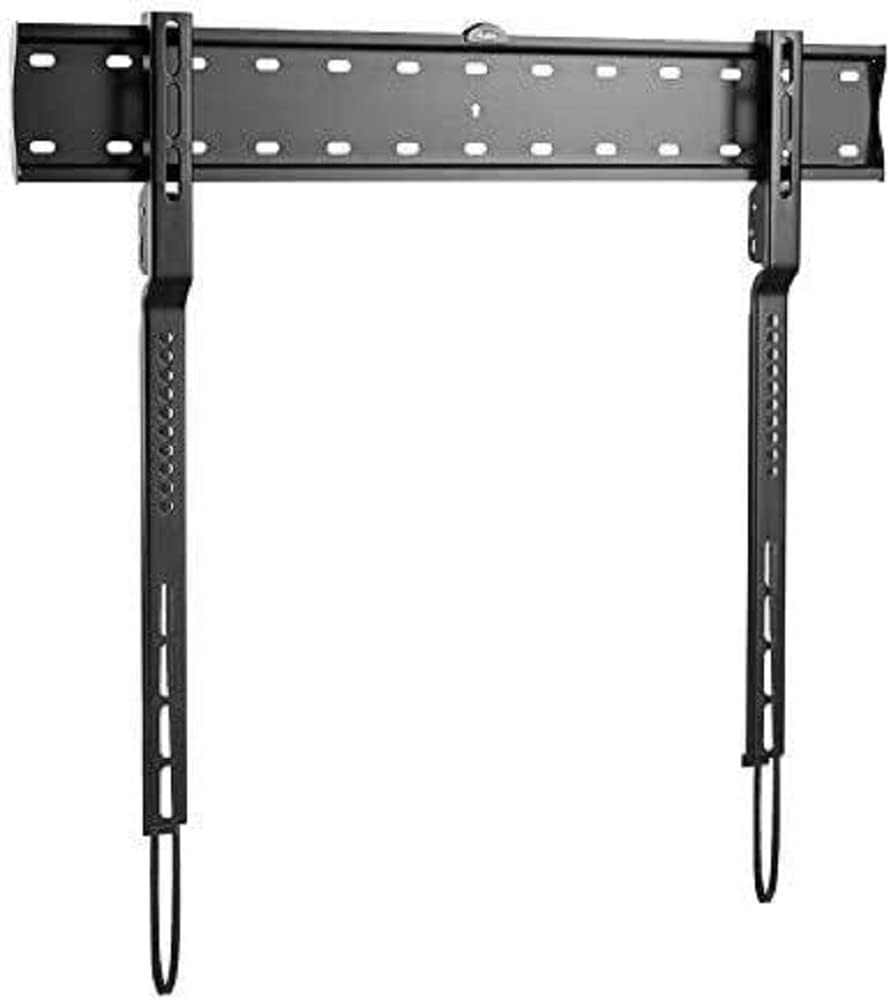

Attēls: The Logilink BP0117 TV Wall Mount, showing the main wall plate and the two vertical TV brackets. The wall plate has multiple mounting holes, and the TV brackets feature VESA mounting points and pull-down straps for easy release.
Uzstādīšana un uzstādīšana
Lai nodrošinātu drošu instalēšanu, veiciet šīs darbības:
- Sagatavojiet sienu:
- Determine the desired height for your TV.
- Locate wall studs using a stud finder. Mark the center of the studs.
- Position the wall plate against the wall at the marked height and use the built-in spirit level to ensure it is perfectly horizontal. Mark the drilling points.
- Drill pilot holes at the marked points. Ensure the drill bit size is appropriate for your wall anchors/screws.
- Piestipriniet sienas plāksni:
- Secure the wall plate to the wall using the provided screws and anchors. Tighten all screws firmly but do not overtighten.
- The silicone pads on the mount help prevent scratches or damage to the wall.
- Piestipriniet televizora kronšteinus pie televizora:
- Uzmanīgi novietojiet televizoru ar ekrānu uz leju uz mīkstas, tīras virsmas.
- Atrodiet VESA stiprinājuma caurumus televizora aizmugurē.
- Attach the two vertical TV brackets to the back of your TV using the appropriate screws and spacers (if needed) that match your TV's VESA pattern. The BP0117 supports VESA patterns: 200x200, 300x200, 300x300, 400x200, 400x300, 600x300.
- Ensure the brackets are securely fastened and evenly spaced.
- Televizora piestiprināšana pie sienas plāksnes:
- With assistance, carefully lift the TV and align the hooks on the TV brackets with the top edge of the wall plate.
- Gently lower the TV until the brackets engage with the wall plate.
- The spring with the strap mechanism will lock your TV into place. Pull the straps down to ensure the TV is securely latched.
- Double-check that the TV is level and securely attached to the wall mount.
Stiprinājuma lietošana
The Logilink BP0117 is a fixed wall mount, meaning it does not offer tilt, swivel, or extension capabilities. Once installed, your TV will remain in a fixed position, 18 mm from the wall.
To remove the TV from the mount, simply pull down on the release straps located at the bottom of the TV brackets. This will disengage the locking mechanism, allowing you to lift the TV off the wall plate.
Apkope
- Periodically check all screws and bolts to ensure they remain tight and secure.
- Tīriet stiprinājumu ar mīkstu, sausu drānu. Izvairieties no abrazīviem tīrīšanas līdzekļiem vai šķīdinātājiem.
- Inspect the mount for any signs of wear or damage. If any damage is found, do not use the mount and contact customer support.
Problēmu novēršana
| Problēma | Iespējamais cēlonis | Risinājums |
|---|---|---|
| Pēc uzstādīšanas televizors nav nolīdzināts. | Sienas plāksne uzstādīšanas laikā nav līdzena. | Remove TV, loosen wall plate screws, adjust with spirit level, re-tighten. |
| Televizors uz stiprinājuma šķiet nestabils. | Screws not tightened sufficiently; incorrect VESA screws used; wall not strong enough. | Ensure all screws are tight. Verify correct VESA screws are used. Confirm wall structure can support weight. Ensure release straps are engaged. |
| Cannot attach TV brackets to TV. | Incorrect VESA pattern or screw size. | Check your TV's VESA pattern against the mount's compatibility. Use the correct screws and spacers for your TV model. |
Specifikācijas
| Funkcija | Detaļas |
|---|---|
| Modeļa numurs | BP0117 |
| Zīmols | Logilink |
| Montāžas veids | Sienas stiprinājums |
| Kustības veids | Fiksēts |
| Saderīgi TV izmēri | 43-80 inches (Flat and Curved) |
| Maks. Kravnesība | 40 kg / 88 mārciņas |
| VESA saderība | 200x200, 300x200, 300x300, 400x200, 400x300, 600x300 |
| Sienas klīrenss | 18 mm |
| Materiāls | Silicone pads (for wall protection) |
| Produkta izmēri | 4.53 x 2.69 x 1.59 inches (mount only) |
| Preces svars | 4.62 mārciņas |
Garantija un atbalsts
Specific warranty information for the Logilink BP0117 TV Wall Mount is not provided within this manual. Please refer to the product packaging or the official Logilink webvietni, lai iepazītos ar detalizētiem garantijas noteikumiem un nosacījumiem.
For technical support, missing parts, or any inquiries regarding your product, please contact Logilink customer service through their official channels. Contact information can typically be found on the manufacturer's webvietne vai produkta iepakojums.
