Ievads
The VOX VFS3 is a dedicated 3-button footswitch designed to enhance the functionality and control of your VOX Mini Go series amplifier. This footswitch allows for hands-free operation of various amplifier features, such as program switching, effect on/off, or looper control, depending on your specific Mini Go amplifier model. This manual provides essential information for the proper setup, operation, and maintenance of your VFS3 footswitch.
Drošības informācija
- Nepakļaujiet ierīci lietus vai mitruma iedarbībai.
- Nenovietojiet ierīci siltuma avotu tuvumā vai tiešos saules staros.
- Nemēģiniet ierīci izjaukt vai pārveidot. Visus apkopes darbus uzticiet kvalificētam personālam.
- Use only with compatible VOX Mini Go ampglābēji.
- Uzglabāt bērniem nepieejamā vietā.
Iepakojuma saturs
- VOX VFS3 3-Button Footswitch (with integrated cable)
- Lietotāja rokasgrāmata (šis dokuments)
Produkts beidziesview
The VFS3 footswitch features three robust buttons, each with an associated LED indicator, and an integrated cable for connection to your ampdzīvāks.

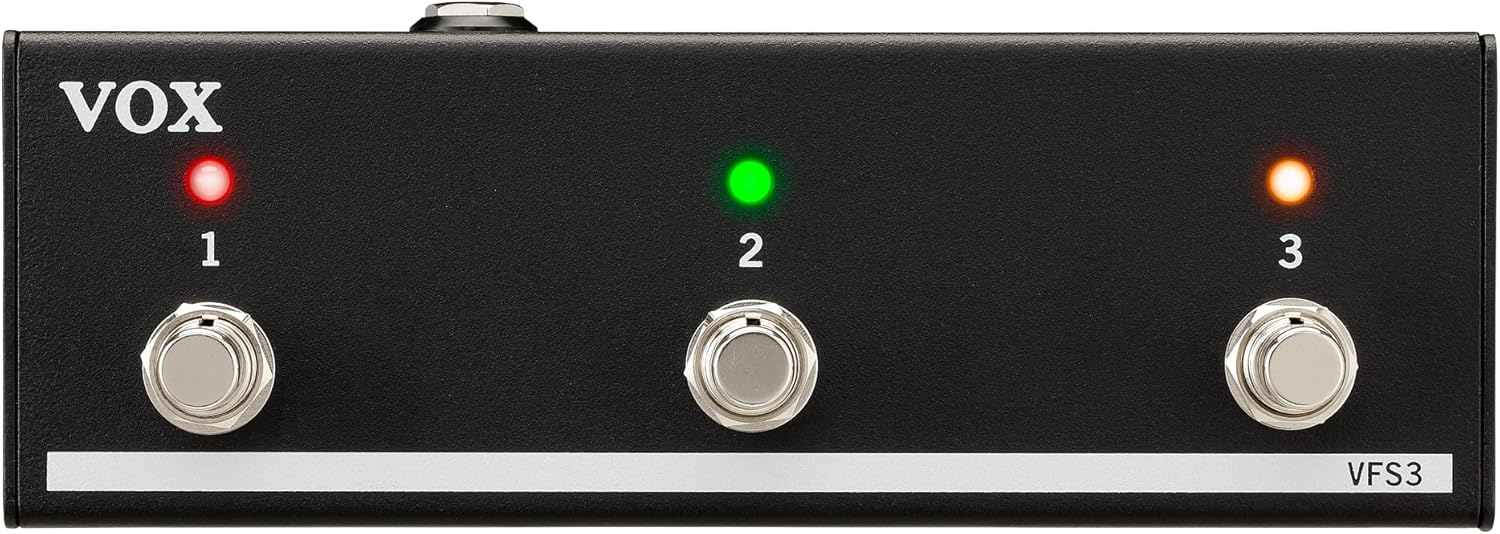

Priekšpuse view of the VOX VFS3 3-Button Footswitch. It features three silver footswitches labeled 1, 2, and 3, each with a corresponding LED indicator above it. The VOX logo is on the left, and 'VFS3' is on the bottom right.
Sānu view of the VOX VFS3 footswitch, highlighting its compact and durable metal casing.
Atpakaļ view of the VOX VFS3 footswitch, displaying the integrated cable that connects to the amplifier. The VOX logo is prominently featured.
Iestatīšana
- Connect the Footswitch: Locate the footswitch input jack on your VOX Mini Go amplifier. This is typically a 3.5mm (1/8-inch) stereo jack.
- Ievietojiet kabeli: Firmly insert the integrated 3.5mm cable from the VFS3 footswitch into the footswitch input jack on your Mini Go ampdzīvāks.
- Ieslēgšana: Turn on your VOX Mini Go amplifier. The footswitch is powered by the amplifier, so no external power supply is needed for the VFS3.
- Pārbaudiet savienojumu: The amplifier should recognize the footswitch. Refer to your Mini Go amplifier's manual for specific indications or settings related to footswitch connection.
The VOX VFS3 footswitch connected to a VOX Mini Go amplifier, illustrating the proper connection of the cable to the amplifier ieejas ligzda.
Lietošanas instrukcijas
The specific functions controlled by the VFS3 footswitch buttons (1, 2, and 3) are determined by the connected VOX Mini Go amplifier model and its current settings. Please consult the user manual for your specific VOX Mini Go amplifier for detailed information on footswitch assignments and configuration.
Common Functions (May Vary by Amplifier Model):
- Program/Preset Switching: Buttons may be assigned to switch between amplifier programs or presets (e.g., Clean, Overdrive, Distortion).
- Efekts ieslēgts/izslēgts: Control individual effects (e.g., Reverb, Delay, Chorus) by toggling them on or off.
- Loopera vadība: For Mini Go models with a built-in looper, the buttons often control looper functions such as:
- 1. poga: Ierakstīt/Atskaņot
- 2. poga: Stop
- 3. poga: Clear/Undo
- Pieskarieties Tempo: Dažas amplifiers may allow one of the buttons to be used for tap tempo functionality for time-based effects.
The LEDs above each button indicate the status of the assigned function (e.g., effect on/off, selected program). Refer to your amplifier's manual for the meaning of specific LED colors or states.
Apkope
- Tīrīšana: Noslaukiet ierīci ar mīkstu, sausu drānu. Nelietojiet abrazīvus tīrīšanas līdzekļus, vasku vai šķīdinātājus.
- Uzglabāšana: When not in use for extended periods, store the footswitch in a clean, dry environment away from extreme temperatures.
- Kabeļa kopšana: Avoid sharp bends or kinks in the integrated cable to prevent damage.
Problēmu novēršana
| Problēma | Iespējamais cēlonis | Risinājums |
|---|---|---|
| Kājas slēdzis nereaģē | Cable not fully inserted; Amplifier not powered on; Incorrect amppacēlāja iestatījumi. | Ensure the 3.5mm cable is securely connected to the amplifier. Verify the amplifier is powered on. Check your Mini Go amplifier's settings to ensure footswitch control is enabled and configured correctly. |
| Gaismas diodes neiedegas | No power from amplifier; Faulty connection. | Apstipriniet amplifier is on and the cable is properly connected. The footswitch draws power from the ampdzīvāks. |
| Buttons perform unexpected functions | Footswitch assignments are incorrect on the ampdzīvāks. | Refer to your VOX Mini Go amplifier's manual to reconfigure the footswitch button assignments. |
Specifikācijas
- Modelis: VFS3
- Saderīgas ierīces: VOX Mini Go Ampglābēji
- Savienotāja veids: 3.5mm Jack (integrated cable)
- Materiāls: Metāla šasija
- Izmēri (G x P x A): Aptuveni 7.9 x 3 x 2.5 collas (20.1 x 7.6 x 6.4 cm)
- Svars: Aptuveni 1.1 mārciņas (0.5 kg)
- Barošanas avots: Powered by connected ampdzīvāks
Garantija un atbalsts
For warranty information and technical support, please refer to the documentation provided with your VOX Mini Go amplifier or visit the official VOX webvietne. Saglabājiet pirkuma čeku kā pirkuma apliecinājumu.
