1. Drošības informācija
Please read and understand this entire manual before attempting to assemble, operate, or install the product. Failure to follow the instructions could result in electric shock, fire, or serious personal injury.
- Pirms uzstādīšanas uzsākšanas vienmēr izslēdziet strāvas padevi pie galvenā ķēdes pārtraucēja.
- Pārliecinieties, vai visi elektriskie savienojumi atbilst vietējiem noteikumiem un noteikumiem.
- Ja neesat pārliecināts par elektroinstalāciju, konsultējieties ar kvalificētu elektriķi.
- Mount the fan to a ceiling joist or support structure capable of supporting the fan's weight.
- Uzstādīšanas vai tīrīšanas laikā nelieciet asmeņu turētājus.
- Pārliecinieties, ka ventilatora lāpstiņas atrodas vismaz 2.1 metra (7 pēdu) attālumā no grīdas.
2. Produkts beidziesview
The YOUKAIN Farmhouse Ceiling Fan (Model 52-YJ632) is a 48-inch industrial-style fan designed for both indoor and outdoor (covered) use. It features a durable iron construction with a matte black finish and reversible blades offering barnwood or matte black options.
- Lauku mājas dizains: Iron with matte black finish, clear glass shade.
- Atgriezeniski asmeņi: 5 blades with two finish options: barnwood and matte black.
- Dual Mount Compatible: Can be hung by standard downrod (4" and 10" included) or on sloped ceilings (up to 20 degrees).
- Tīra vara līdzstrāvas motors: 6 speed settings, reversible function for summer/winter, minimum 42dB operating noise.
- Apgaismojums: Requires 2 x E26 base bulbs (max 145mm length, 36W max, bulbs not included).
- Tālvadības pults: All-in-one remote for fan and light control, timing control (1H/2H/4H/8H), 5-speed settings, includes wall dock.

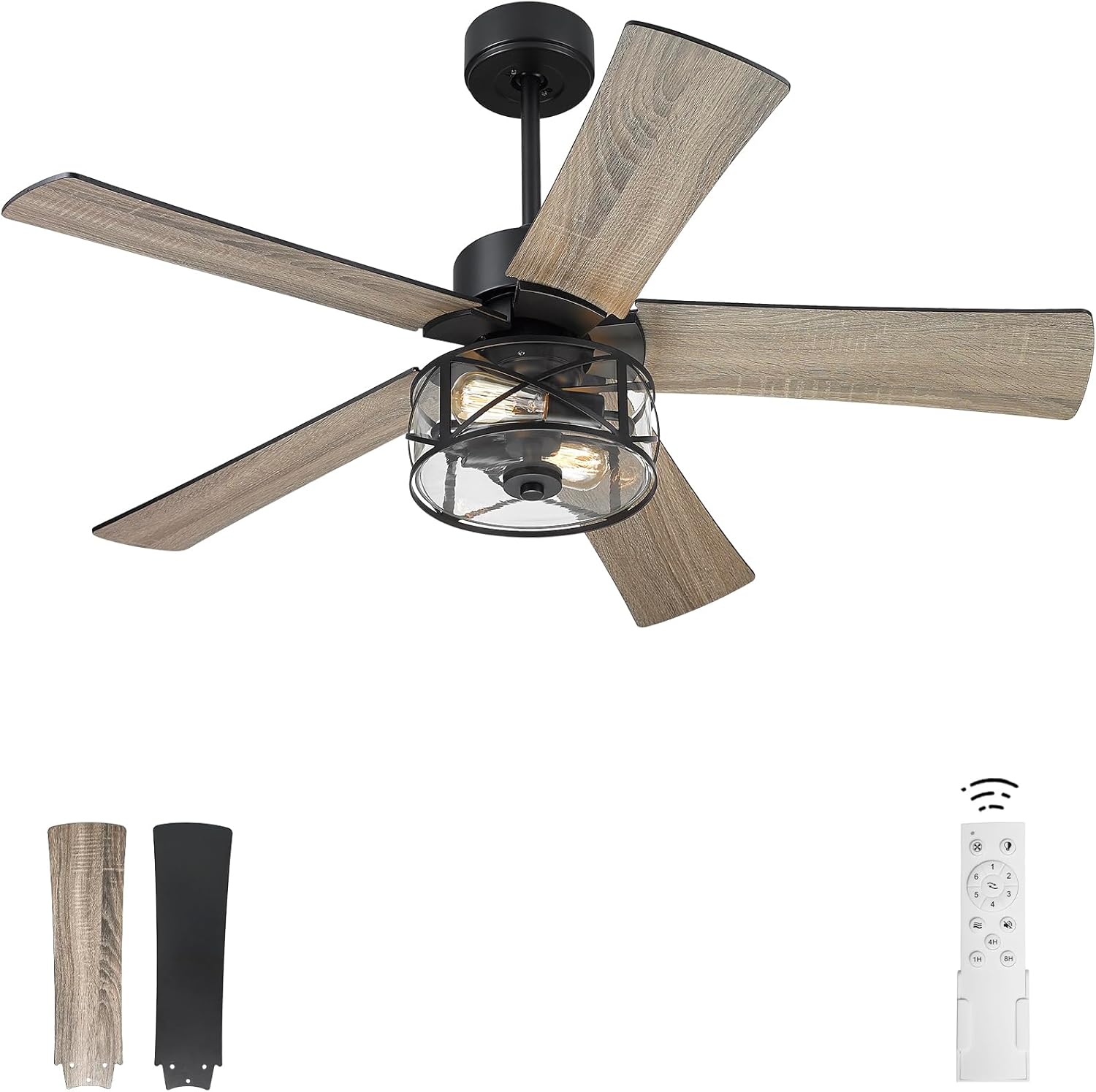

2.1. Attēls: beidziesview of the YOUKAIN Farmhouse Ceiling Fan with remote control and reversible blades.
3. Iestatīšana un instalēšana
Follow these steps for proper installation of your ceiling fan. Refer to the video for visual guidance.
Video 3.1: YOUKAIN Farmhouse Ceiling Fan Installation Guide.
Uzstādīšanas soļi:
- Instalējiet Downrod: Remove the hanger ball, insert the downrod (4" or 10" depending on ceiling height), fix it securely, place the cover, and reinstall the hanger ball.
- Wire Fan: Install the bracket to the ceiling. Assemble the fan into the hanger bracket. Connect the wires from the fan to the fan connection receiver, ensuring proper grounding (green wires), live (black), and neutral (white) connections. Install the canopy.
- Pievienojiet asmeņus: Secure each blade to a blade bracket using screws and paper washers. Then, attach the assembled blades to the fan motor, tightening the screws firmly.
- Gaismas komplekta uzstādīšana: Connect the plugs from the motor and light kit. Align the screw holes and tighten the 3 screws. Install the light bulbs (E26 base, not included). Attach the clear glass cover by twisting the decorative nut to remove it, placing the glass, and then re-securing the nut.
Figure 3.1: Diagram for installing the downrod.
Figure 3.2: Diagram for wiring the fan.
Figure 3.3: Diagram for attaching the fan blades.
Figure 3.4: Diagram for installing the light kit.
4. Lietošanas instrukcijas
Your YOUKAIN ceiling fan is operated via the included remote control. Ensure the remote has working batteries.
Video 4.1: YOUKAIN 52 Inch Modern Ceiling Fan Operation.
Tālvadības pults funkcijas:
- Ventilators IESLĒGTS/IZSLĒGTS: Press the 'Fan Off' button to turn the fan off. Press any speed button (1-6) to turn the fan on.
- Gaismas ieslēgšana/izslēgšana: Press the 'Light On/Off' button to toggle the light.
- Ventilatora ātrums: Select from 6 speed settings (1-6) to adjust airflow.
- Ventilatora virziens (reversīvs motors): Press the 'F/R' button to change the direction of the fan blades. This allows for downdraft (cooling in summer) or updraft (circulating warm air in winter).
- Laika kontrole: Set the fan to automatically turn off after 1 hour (1H), 2 hours (2H), 4 hours (4H), or 8 hours (8H).
4.1. attēls: Tālvadības pults izkārtojums un funkcijas.
Video 4.2: Quick demonstration of remote control functions.
5. Apkope
Regulāra apkope nodrošina jūsu griestu ventilatora optimālu darbību un ilgmūžību.
- Tīrīšana: Use a soft brush or lint-free cloth to prevent scratching the finish. Do not use water or harsh chemicals.
- Asmeņu tīrīšana: Dust the blades regularly to maintain balance and prevent wobbling.
- Pievelciet skrūves: Periodiski pārbaudiet un pievelciet visas ventilatora bloka skrūves, lai nodrošinātu drošu darbību.
- Eļļošana: The DC motor is designed for long-term, quiet operation and typically does not require lubrication.
6. Traucējummeklēšana
If you encounter issues with your fan, refer to the common problems and solutions below.
| Problēma | Iespējamais cēlonis | Risinājums |
|---|---|---|
| Ventilators neieslēdzas | Ventilatoram nav strāvas; Vaļīgi vadu savienojumi; Zems tālvadības pults baterijas līmenis. | Pārbaudiet ķēdes pārtraucēju; Pārliecinieties, vai visi vadu savienojumi ir droši; Nomainiet tālvadības pults baterijas. |
| Ventilatora svārstības | Vaļīgas asmens skrūves; Nelīdzsvaroti asmeņi; Vaļīgs montāžas kronšteins. | Tighten all blade screws; Balance blades using a balancing kit (not included); Ensure mounting bracket is securely fastened to the ceiling. |
| Trokšņaina darbība | Vaļīgas skrūves; Motora korpusa berzēšanās; Nepareiza uzstādīšana. | Check and tighten all screws; Ensure all components are properly aligned and not rubbing; Re-check installation steps. |
| Gaisma nedarbojas | Bulb faulty; Loose wire connection; Remote control issue. | Replace bulbs; Check light kit wiring connections; Ensure remote control is paired and functional. |
7. Specifikācijas
- Zīmols: YOUUKAIN
- Modeļa nosaukums: YJ632
- Krāsa: Black & Barnwood
- Materiāls: Dzelzs
- Stils: Lauku māja
- Numura veids: Dzīvojamā istaba, guļamistaba
- Lietošana iekštelpās/ārā: Outdoor (Covered), Indoor
- Barošanas avots: DC
- Īpaša iezīme: Reversible Blades + Remote Control + DC Motor
- Kontroles metode: Tālvadības pults
- Apdares tips: Matēts melns
- Toņu materiāls: Stikls
- Gaismas avotu skaits: 2
- Voltage: 110 volts
- Preces svars: 17.41 mārciņas
- Wattage: 38 vati
- Spuldzes pamatne: E26
- Produkta izmēri: 52 x 52 x 23.38 collas
8. Garantija un atbalsts
The YOUKAIN Farmhouse Ceiling Fan comes with a 2-YEARS warranty. YOUKAIN also offers 24/7 online service and free replacement for damaged or missing parts.
For support, please contact YOUKAIN customer service directly.
