This manual provides essential information for the safe and effective use of your Vividia CT-6010 LCD/WiFi Flexible Two-Way Articulating Inspection Camera Borescope Videoscope. Please read these instructions carefully before operating the device and retain them for future reference.
Figure 1: Vividia CT-6010 Borescope main unit with flexible probe.
Iestatīšana
1. Izsaiņošana un komponentu identifikācija
Carefully unpack all items from the packaging. Ensure all components are present and undamaged. The package typically includes:
- Vividia CT-6010 Main Unit with LCD Display
- Flexible Articulating Probe (6mm diameter, 1.0m length)
- Strāvas adapteris/lādētājs
- USB kabelis
- Pārnēsāšanas soma
- Plecu siksna
Figure 2: Contents of the Vividia CT-6010 package.
2. Ierīces uzlāde
Before first use, fully charge the device. Connect the power adapter to the DC In port on the main unit and plug it into a power outlet. The charging indicator will show the charging status.
Figure 3: DC In port for charging, along with SD and USB ports.
3. SD kartes ievietošana
To save photos and videos, insert a compatible Micro SD card (not included) into the SD card slot on the side of the main unit. Ensure the card is inserted correctly until it clicks into place.
4. Ieslēgšana/izslēgšana
Nospiediet un turiet Jauda button located on the control panel to turn the device on or off. The LCD screen will illuminate upon startup.
5. WiFi Connection (Optional)
The CT-6010 features built-in WiFi for connecting to iPhone, iPad, or Android devices. Follow these steps:
- Turn on the CT-6010 device.
- Enable WiFi on your mobile device.
- Meklēt the CT-6010's WiFi network (usually named 'Vividia_XXXX').
- Connect to the network using the provided password (refer to the device screen or a sticker on the unit).
- Open the dedicated Vividia app on your mobile device to view the live feed and control functions.
4. attēls: Piemample of WiFi connection to a mobile device.
Lietošanas instrukcijas
1. Pamata vadības ierīces
The main unit features several buttons for operation:
- Barošanas poga: Ieslēdz/izslēdz ierīci.
- Poga Labi: Confirms selections in the menu or captures media.
- Izvēlnes poga: Piekļūst ierīces iestatījumiem.
- Gaismas poga (*): Adjusts the brightness of the LED lights on the probe tip.
- Photo/Video Capture Button: A dedicated button on the handle for quick photo or video recording.
Figure 5: Location of the Photo/Video Capture button.
2. Probe Articulation
The CT-6010 features a two-way articulating probe. Use the articulation knob on the handle to precisely control the bending direction of the probe tip. The probe can bend more than 180 degrees in two directions, allowing for comprehensive inspection of hard-to-reach areas.
6. attēls: Piemamples of probe articulation.
Figure 7: Close-up of the articulating probe tip.
3. Adjusting Illumination
Nospiediet pogu * (Light) button to cycle through different brightness levels for the LED lights at the probe tip. Adjust the illumination to achieve optimal visibility in various inspection environments.
4. Fotoattēlu un video uzņemšana
Kamēr viewtiešraides pārraides laikā nospiediet Fotoattēlu/video uzņemšanas poga on the handle to take a still image. To record a video, press and hold the button briefly to start recording, and press it again to stop. Captured media is saved to the inserted SD card.

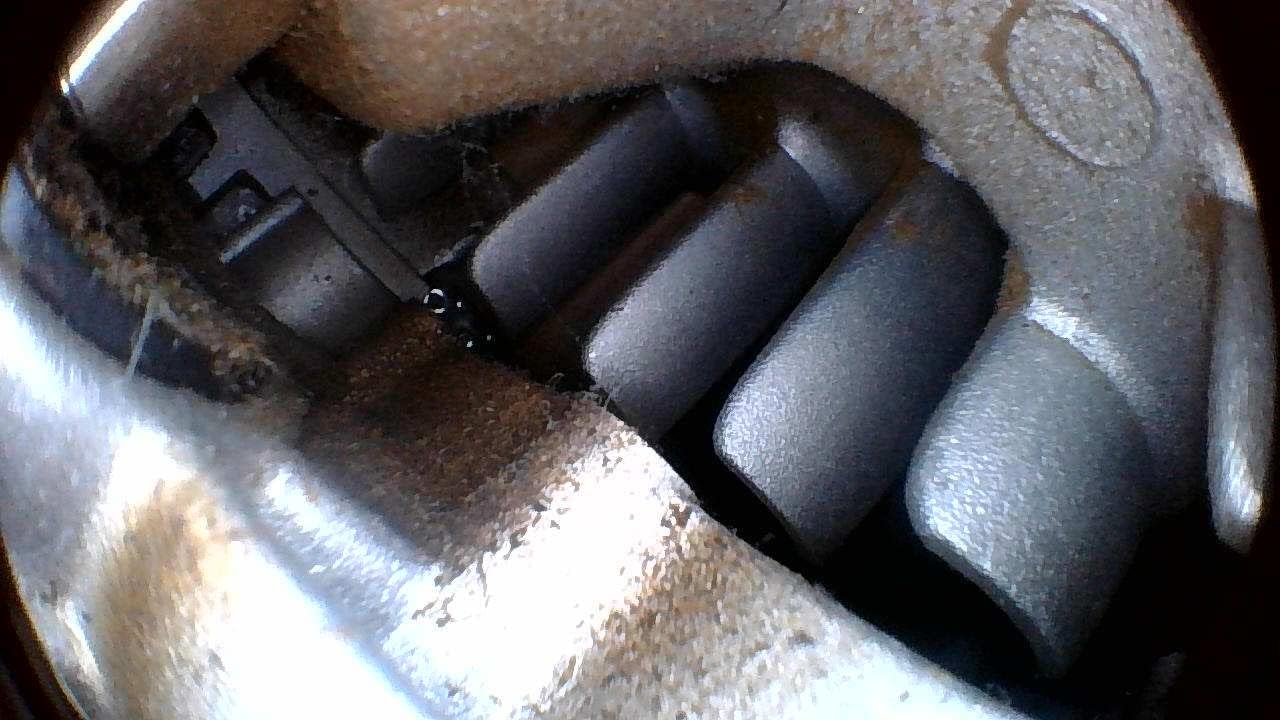

8. attēls: Piemample of an inspection view.
5. Izvēlnes navigācija un iestatījumi
Nospiediet pogu Izvēlne button to access device settings. Use the directional buttons (often integrated with OK/Light buttons) to navigate through options such as resolution, date/time, language, and playback. Press OK to confirm selections and Izvēlne vēlreiz, lai izietu.
Apkope
1. Tīrīšana
- Zonde: After each use, gently wipe the probe and camera lens with a soft, damp cloth. For stubborn dirt, use a mild cleaning solution. Ensure no liquid enters the main unit.
- Galvenā vienība: Wipe the main unit with a dry, soft cloth. Avoid using abrasive cleaners or solvents.
2. Akumulatora kopšana
Lai pagarinātu akumulatora darbības laiku:
- Charge the device fully before long periods of storage.
- Neuzglabājiet ierīci ļoti karstā vai aukstā vidē.
- If not used for an extended period, charge the battery every 3-6 months.
3. Uzglabāšana
Store the CT-6010 in its carrying case in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the probe is coiled loosely and not sharply bent to prevent damage.
4. Ūdensizturība
The flexible probe is rated IP67 waterproof, meaning it can withstand immersion in water up to 1 meter for 30 minutes. The main unit is NOT waterproof. Do not immerse the main unit in water or expose it to heavy rain.
Problēmu novēršana
| Problēma | Iespējamais cēlonis | Risinājums |
|---|---|---|
| Ierīce neieslēdzas. | Zems akumulatora līmenis; Nav pareizi nospiesta ieslēgšanas/izslēgšanas poga. | Charge the device fully; Press and hold the Power button for a few seconds. |
| Ekrānā nav attēla. | Probe not connected properly; Camera lens obstructed/dirty. | Ensure the probe is securely connected; Clean the camera lens. |
| Wi-Fi savienojums neizdodas. | Incorrect password; App not installed; Device out of range. | Verify WiFi password; Install the correct Vividia app; Move closer to the device. |
| Probe articulation is stiff or stuck. | Obstruction; Mechanical issue. | Do not force the articulation. Gently retract the probe and check for obstructions. If the issue persists, contact support. |
| Slikta attēla kvalitāte. | Insufficient lighting; Dirty lens; Incorrect focus (if adjustable). | Adjust LED brightness; Clean the camera lens; Ensure proper distance from object. |
Specifikācijas
| Funkcija | Detaļas |
|---|---|
| Zondes diametrs | 6 mm (0.236 collas) |
| Zondes garums | 1.0 metri (3.3 pēdas) |
| Kameras izšķirtspēja | HD 1280x720 |
| Artikulācija | 2-way, max. bending angle >180 degrees |
| Savienojamība | Built-in WiFi (for iPhone, iPad, Android) |
| Ūdensizturīgs vērtējums | IP67 (probe only) |
| Displejs | Integrated LCD |
| Video uzņemšanas izšķirtspēja | 720p |
| Kameras zibspuldze | Iebūvētās gaismas diodes |
| Ražotājs | Vividia Technologies |
| Datums pirmais pieejams | 12. gada 2022. janvāris |
Figure 9: Probe diameter measurement.
Figure 10: Probe length illustration.
Garantija un atbalsts
Garantijas informācija
The Vividia CT-6010 is covered by a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official Vividia Technologies webvietni, lai iepazītos ar detalizētiem garantijas noteikumiem un nosacījumiem.
Klientu atbalsts
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Vividia Technologies customer support. Contact information can typically be found on the manufacturer's webvietnē vai produkta dokumentācijā.
