1. Ievads
The UNI-T UT161B is a reliable True RMS digital multimeter designed for professional use. It features a 6000-count display and is capable of measuring up to 1000V AC/DC. This device is equipped with audible and visual alarms, providing critical warnings during high voltage, current, or temperature measurements. The UT161 series, including the UT161B, is CE, UKCA, and cETLus certified, ensuring compliance with international safety standards.
Galvenās funkcijas ietver:
- True RMS measurement for accurate readings on non-sinusoidal waveforms.
- Data hold and backlight for convenience in various lighting conditions.
- MAX/MIN/Relative modes for advanced analysis.
- USB communication for data logging and PC connectivity.
- Comprehensive input protection.
- Diode and continuity testing.
- Non-Contact Voltage (NCV) detection with audible/visual alarm.
2. Drošības informācija
Always adhere to safety precautions when using the multimeter to prevent electric shock or personal injury. Read all safety information carefully before operation.
- Nedrīkst apply more than the rated voltage, kā norādīts uz skaitītāja, starp spailēm vai starp jebkuru spaili un zemējumu.
- Nedrīkst use the meter if it appears damaged or if the case is open.
- Ievērojiet īpašu piesardzību, strādājot ar voltagvirs 30 V maiņstrāvas RMS, 42 V maksimālās jaudas vai 60 V līdzstrāvas. Šie spriegumitagtas rada trieciena risku.
- Always ensure the test leads are in good condition, without any damage to the insulation.
- Pirms funkciju vai diapazonu maiņas atvienojiet testa vadus no ķēdes.
- Lai nodrošinātu precīzus rādījumus, nekavējoties nomainiet bateriju, tiklīdz parādās zema baterijas uzlādes līmeņa indikators.
- Use the correct input terminals, function, and range for all measurements.
3. Produkts beidziesview
The UNI-T UT161B multimeter is designed for ease of use and durability. It features a clear LCD display, a rotary switch for function selection, and various buttons for additional features.

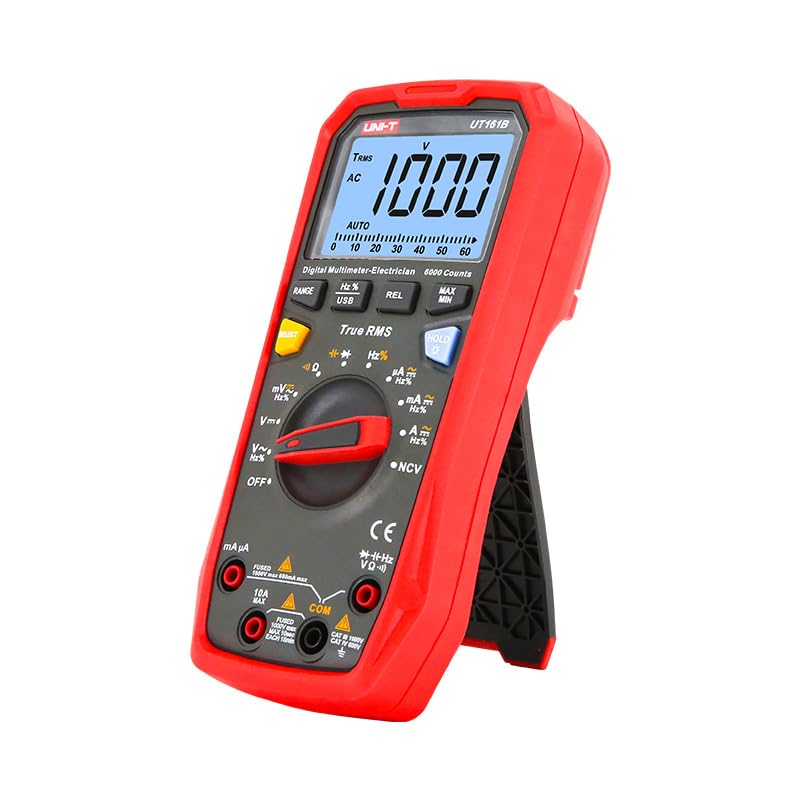

1. attēls. Priekšpuse view of the UNI-T UT161B Digital Smart Multimeter, showing the display, rotary switch, and function buttons.
2. attēls. Aizmugure view of the UNI-T UT161B Digital Smart Multimeter, showing the battery compartment and kickstand.
Kastītē:
- UNI-T UT161B Digital Smart Multimeter
- Test Leads (Gold plated for quick and accurate measurements)
- USB kabelis
- Batteries (1 Lithium Metal battery required, included)
- Rokasgrāmata angļu valodā
- Auduma soma

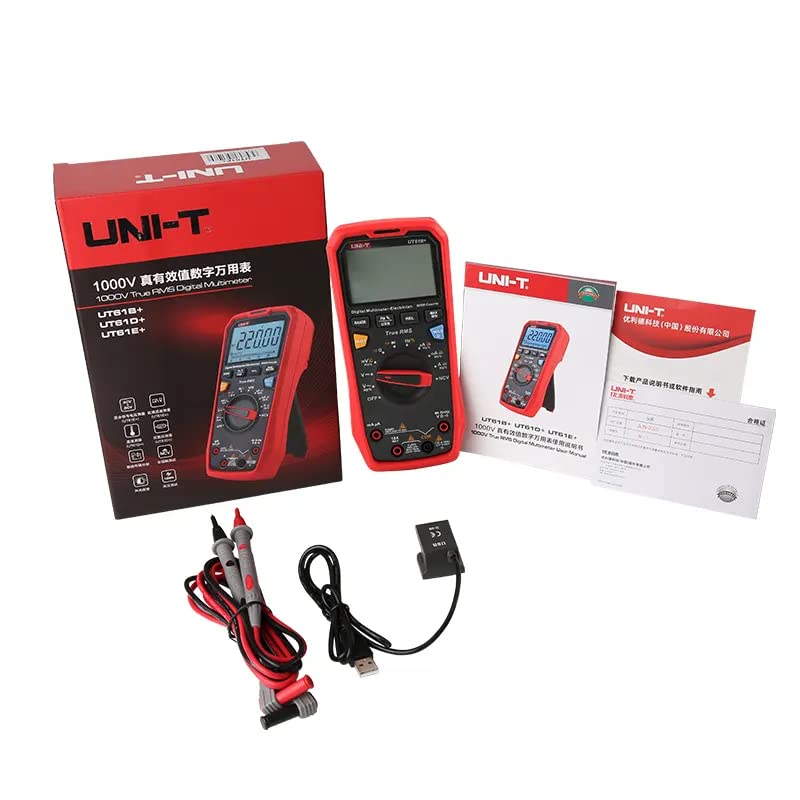

Figure 3: The complete package contents for the UNI-T UT161B Multimeter, including the device, test leads, USB cable, and manual.
4. Iestatīšana
Akumulatora uzstādīšana
- Pārliecinieties, vai multimetrs ir izslēgts un testa vadi ir atvienoti.
- Atrodiet bateriju nodalījumu mērierīces aizmugurē.
- Noskrūvējiet akumulatora vāciņu un noņemiet to.
- Insert four 1.5V (R03) batteries, observing correct polarity.
- Uzlieciet atpakaļ akumulatora vāciņu un nostipriniet to ar skrūvi.
Testa vadu pievienošana
Connect the red test lead to the VΩmA input jack and the black test lead to the COM input jack for most measurements. For high current measurements (up to 10A), connect the red test lead to the 10A input jack.
5. Lietošanas instrukcijas
The UT161B offers various measurement functions accessible via the rotary switch and function buttons.
General Measurement Steps:
- Pagrieziet grozāmo slēdzi uz vēlamo mērīšanas funkciju.
- Connect the test leads to the appropriate input jacks and to the circuit under test.
- Nolasiet mērījuma vērtību LCD displejā.
- Use function buttons (e.g., RANGE, HOLD, REL, MAX/MIN) for additional control or data capture.
Specifiskās funkcijas:
- VoltagMērījums (maiņstrāvas/līdzstrāvas): Select V~ for AC voltage or V- for DC voltage. The meter can measure up to 1000V.
- Strāvas mērīšana (maiņstrāva/līdzstrāva): Select A~ for AC current or A- for DC current. Ensure test leads are connected to the correct current input jacks (mA/µA or 10A).
- Pretestības mērīšana (Ω): Select the Ω function.
- Kapacitātes mērīšana (F): Select the F function.
- Frekvences mērīšana (Hz): Select the Hz function.
- Diode/Continuity Test: Select the diode/continuity function. A buzzer will sound for continuity.
- Non-Contact Voltage (zemā nominālvērtība): Use the NCV function to detect AC voltage without direct contact. The meter will provide audible and visual indications.
Figure 4: The multimeter in use, demonstrating frequency measurement on an active circuit.
USB komunikācija
The UT161B supports USB communication for connecting to a PC. This allows for real-time data monitoring, logging, and analysis using compatible software.
Video 1: This video demonstrates various functions of the UNI-T UT161 series multimeters, including voltage and frequency measurement, current measurement, continuity testing with audio/visual indication, NCV function, and USB communication for data logging to a PC. It highlights the device's over-molding protection and the high resolution of the UT161E model.
6. Apkope
Tīrīšana
Noslaukiet korpusu ar reklāmuamp drānu un maigu mazgāšanas līdzekli. Nelietojiet abrazīvus līdzekļus vai šķīdinātājus. Turiet termināļus tīrus no netīrumiem un mitruma.
Akumulatora nomaiņa
When the low battery indicator appears on the display, replace the batteries as described in the Setup section. Always use the specified battery type (four 1.5V R03 batteries).
Drošinātāju nomaiņa
If the current measurement function fails, the fuse may need replacement. Refer to the detailed fuse replacement instructions in the complete user manual for your specific model. Ensure to use a fuse with the correct rating to maintain safety and performance.
7. Traucējummeklēšana
- Nav displeja/ieslēgts: Pārbaudiet bateriju ievietošanu un pārliecinieties, vai tās nav izlādējušās. Nomainiet tās, ja nepieciešams.
- Nepareizi lasījumi: Verify correct function and range selection. Ensure test leads are properly connected and not damaged. Check for low battery.
- Continuity Test Not Working: Ensure the circuit is de-energized. Check test leads for continuity.
- Current Measurement Failure: Check if the fuse is blown. Replace with the correct type and rating if needed.
- NCV netiek noteikts: Ensure the NCV sensor is close to the AC voltage avots.
For more complex issues, consult the full user manual or contact UNI-T customer support.
8. Specifikācijas
Below are the general specifications for the UNI-T UT161B Digital Smart Multimeter. For detailed accuracy and specific ranges, please refer to the complete product manual.
Figure 5: A comprehensive table outlining the specifications for the UT161B, UT161D, and UT161E models, including measurement ranges, display counts, and certifications.
| Funkcija | Specification (UT161B) |
|---|---|
| Displeja skaits | 6000 |
| AC sējtage (V) | 1000V |
| DC sējtage (V) | 1000V |
| Maiņstrāva (A) | 10A |
| Līdzstrāva (A) | 10A |
| Pretestība (Ω) | 60MΩ |
| Kapacitāte (F) | 60mF |
| Frekvence (Hz) | 10 MHz |
| Cikls (%) | 0.1% ~ 99.9% |
| Jauda | 1.5 V akumulators (R03) x 4 |
| Produkta neto svars | 350g |
| Produkta izmērs | 190 mm x 90 mm x 50 mm |
| Sertifikāti | CE, UKCA, cETLus |
9. Garantija un atbalsts
Lai saņemtu informāciju par garantiju, tehnisko atbalstu vai servisa jautājumus, lūdzu, skatiet oficiālo UNI-T website or the contact information provided in your product packaging. Keep your purchase receipt as proof of purchase for warranty claims.
