beyerdynamic MC 930 Condenser Microphone

1. Ievads

The beyerdynamic MC 930 is a versatile true condenser microphone designed for a wide range of audio recording applications. Manufactured in Heilbronn, Germany, it offers high sensitivity, superb transient response, and features switchable pre-attenuation and a low-cut filter for enhanced flexibility in both studio and live sound environments.

This manual provides essential information for the proper setup, operation, and maintenance of your MC 930 microphone to ensure optimal performance and longevity.

2. Drošības instrukcijas

• Read all instructions carefully before using the microphone.
• Do not expose the microphone to moisture, rain, or extreme temperatures.
• Izvairieties no mikrofona nomešanas vai spēcīgu triecienu iedarbības.
• Only use the microphone with compatible audio equipment that provides 11-52 V phantom power.
• Do not attempt to open or modify the microphone. Refer all servicing to qualified personnel.
• Keep the microphone and its accessories out of reach of children.

3. Iepakojuma saturs

Pārliecinieties, vai iepakojumā ir visi priekšmeti:

• MC 930 Condenser Microphone
• Mikrofons Clamp (MA-CL 21)
• Pārnēsāšanas soma
• Vējstikls
• Microphone Cable (XLR)
• Measurement Curve Document

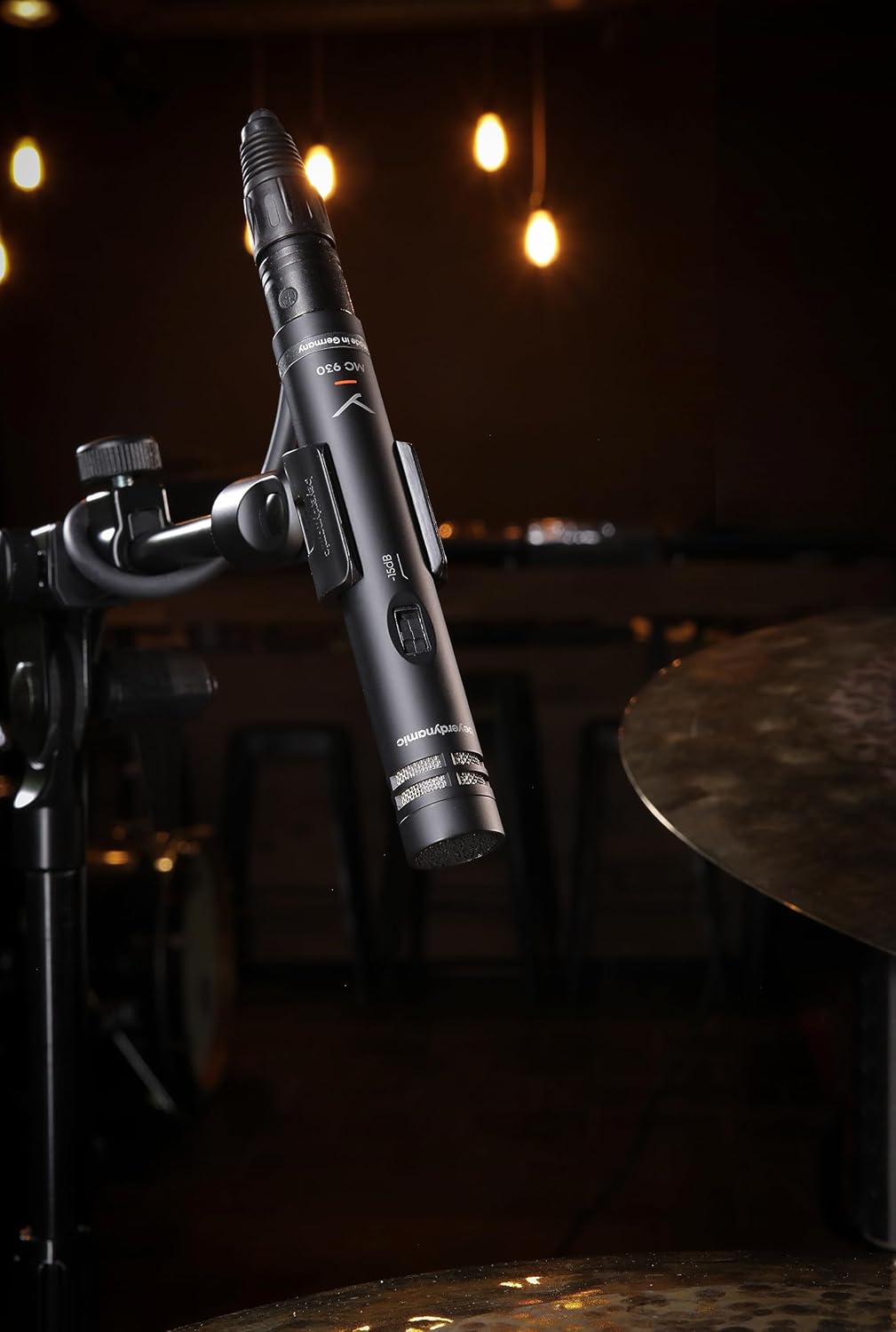

Image: The beyerdynamic MC 930 microphone mounted on a stand, ready for use.

4. Iestatīšana

4.1 Mikrofona uzstādīšana

1. Attach the supplied microphone clamp (MA-CL 21) to a standard microphone stand.
2. Carefully screw the MC 930 microphone into the clamp. Ensure it is securely fastened but do not overtighten.

Attēls: Tuvplāns view of the MA-CL 21 microphone clamp, used for securing the MC 930 to a stand.

4.2 Pievienošana audio aprīkojumam

1. Connect the supplied XLR microphone cable to the XLR output at the base of the MC 930.
2. Connect the other end of the XLR cable to an input on your audio mixer, audio interface, or preampdzīvāks.
3. Ensure your audio equipment provides 11-52 V fantoma jauda. The MC 930 requires phantom power to operate. Activate phantom power on the connected input channel.

4.3 Pre-attenuation and Low-Cut Filter

The MC 930 features two small switches on its body:

• Pre-attenuation Switch (-15 dB): This switch reduces the microphone's output level by 15 dB. Use this setting when recording very loud sound sources (e.g., drums, loud guitar amplifiers) to prevent input clipping on your mixer or interface.
• Low-Cut Filter Switch (80 Hz): This switch activates a high-pass filter at 80 Hz. Use this to reduce unwanted low-frequency noise such as rumble from air conditioning, stage vibrations, or proximity effect when close-miking.

Adjust these switches according to your recording environment and sound source.

5. Mikrofona lietošana

5.1 Polārais modelis

The MC 930 features a unidirectional (cardioid) polar pattern. This means it is most sensitive to sounds coming from the front and rejects sounds from the sides and rear. This characteristic is ideal for isolating a sound source and minimizing background noise or feedback in live settings.

5.2 Ieteicamie lietošanas veidi

The MC 930 is suitable for a variety of applications, including:

• Instrument Miking: Acoustic guitars, overheads for drums, percussion, strings, woodwinds, and brass instruments.
• Vokālais ieraksts: Speech and singing, especially in controlled studio environments.
• Video ierakstīšana: Capturing clear audio for video productions.
• Tiešā skaņa: Reinforcement of instruments and vocals on stage.

5.3 Optimāls izvietojums

Experiment with microphone placement to achieve the desired sound. Generally, placing the microphone closer to the sound source will increase direct sound and reduce room ambience. Utilize the cardioid pattern by pointing the front of the microphone towards the desired sound and away from unwanted noise sources.

6. Apkope

6.1. Tīrīšana

To clean the microphone, gently wipe the exterior with a soft, dry, lint-free cloth. Do not use liquid cleaners, solvents, or abrasive materials, as these can damage the finish or internal components. Avoid getting moisture into the microphone capsule or switches.

6.2. Uzglabāšana

When not in use, store the MC 930 in its supplied carrying case to protect it from dust, moisture, and physical damage. Store in a cool, dry place.

7. Traucējummeklēšana

If you encounter issues with your MC 930 microphone, refer to the following common problems and solutions:

• Nav skaņas izvades:
  • Ensure phantom power (11-52 V) is activated on the connected input channel.
  • Check all XLR cable connections for proper seating. Try a different XLR cable.
  • Verify the input gain on your mixer/interface is turned up.
  • Test the microphone on a different input channel or with different audio equipment.
• Distorted or Clipped Sound:
  • Activate the -15 dB pre-attenuation switch on the microphone.
  • Reduce the input gain on your mixer/interface.
  • Increase the distance between the microphone and the sound source.
• Excessive Low-Frequency Noise/Rumble:
  • Activate the 80 Hz low-cut filter switch on the microphone.
  • Pārliecinieties, vai mikrofons ir izolēts no vibrācijām (piemēram, izmantojiet triecienizturīgu stiprinājumu, ja tāds ir pieejams, vai novietojiet statīvu uz stabilas virsmas).
• Dūkoņa vai buzzing skaņa:
  • Check for ground loops. Ensure all audio equipment is properly grounded.
  • Ensure XLR cables are balanced and in good condition. Avoid running audio cables parallel to power cables.
  • Test in a different electrical outlet or location to rule out external interference.

If problems persist after trying these steps, contact beyerdynamic customer support or an authorized service center.

8. Tehniskās specifikācijas

9. Garantija un atbalsts

For detailed information regarding the warranty period and terms for your beyerdynamic MC 930 microphone, please refer to the warranty card included with your product or visit the official beyerdynamic website. For technical support, service, or spare parts, please contact beyerdynamic customer service directly through their official channels.

Ražotājs: bejerdinamiski

Lai saņemtu papildu palīdzību, apmeklējiet: www.beyerdynamic.com
