Ievads
The NU Aqua 7-Stage UV and Alkaline Reverse Osmosis Water Filter System with Booster Pump provides clean, healthy, and great-tasting purified water. This system is designed to fit conveniently under your sink, offering a comprehensive 7-stage filtration process to remove harmful contaminants.
This package includes a 1-year replacement membrane filter set and an ice maker & refrigerator connection kit, ensuring you have everything needed for a complete water purification solution.
Produkts beidziesview

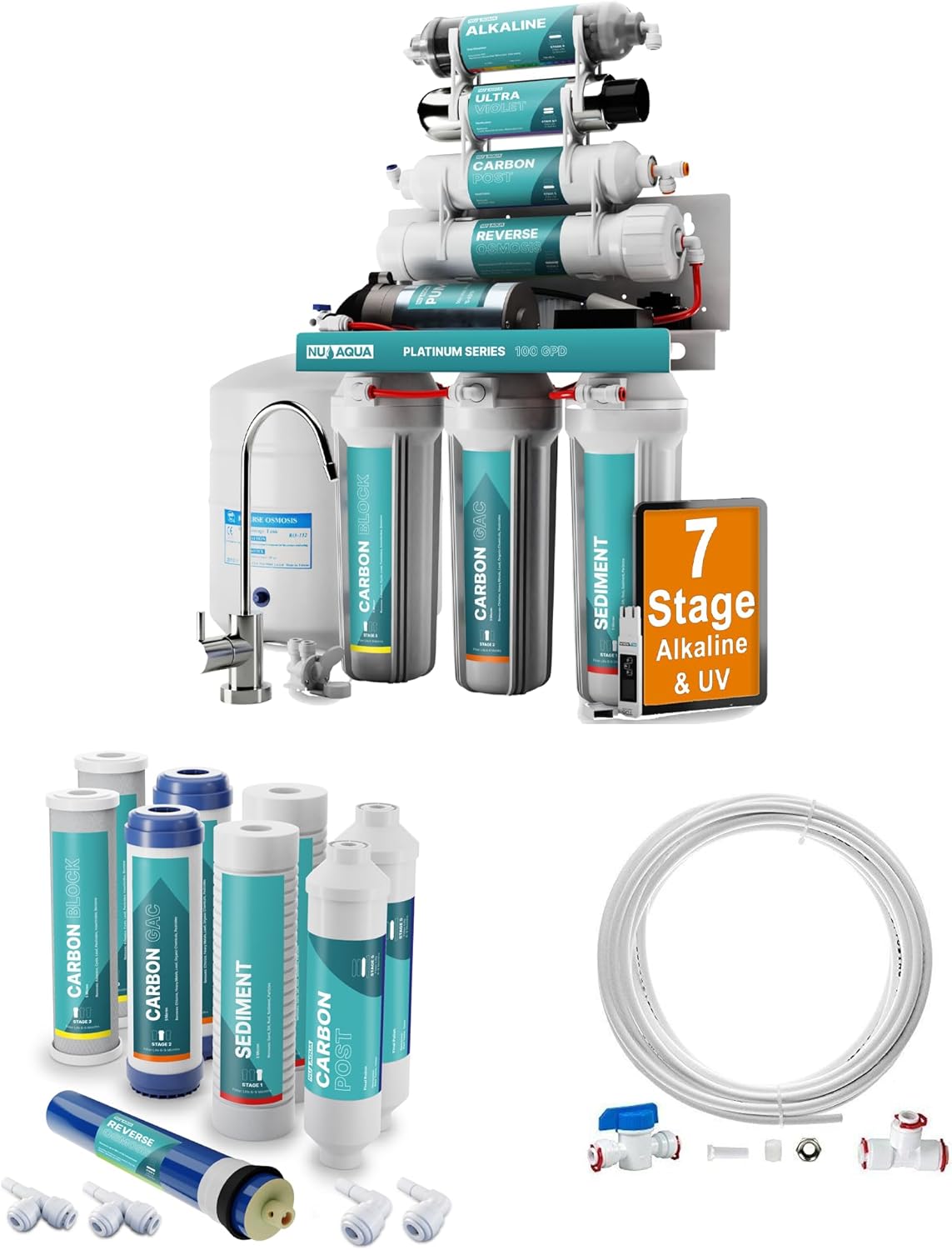

Image: Complete NU Aqua 7-Stage Reverse Osmosis Water Filter System, including the main unit, replacement filters, and the ice maker/refrigerator connection kit.

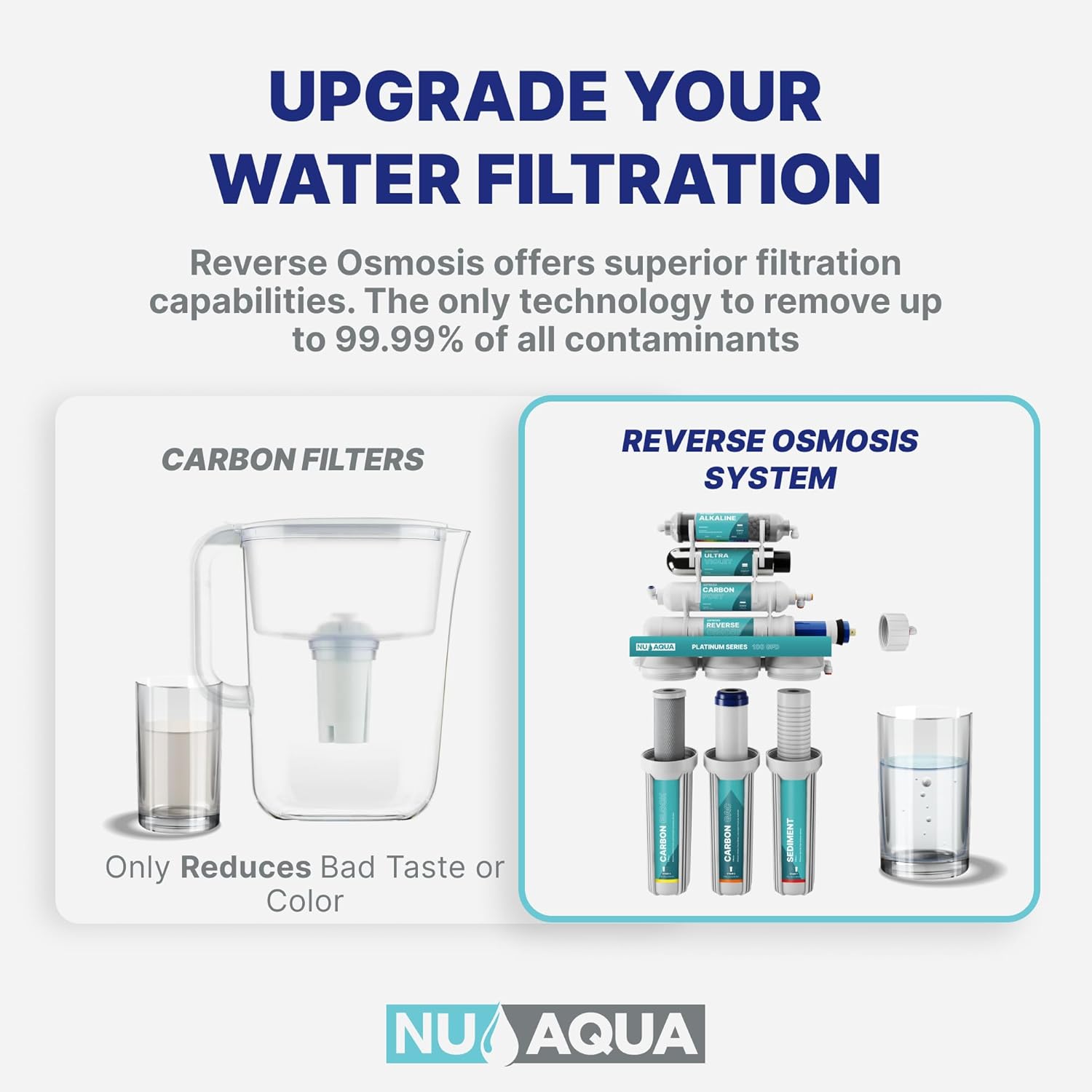

Image: Comparison illustrating the superior filtration capabilities of Reverse Osmosis technology over standard carbon filters, removing up to 99.99% of contaminants.
The system features professional-grade quick connect fittings and an NSF 100% lead-free designer stainless steel countertop faucet. Its 100 GPD (Gallons Per Day) high flow rate doubles the output of standard under-sink systems, making it suitable for large families and households.
Uzstādīšana un uzstādīšana
The NU Aqua Reverse Osmosis system is designed for straightforward installation. It is 90% pre-assembled to simplify the process and fits easily under most sinks. Please ensure you measure your cabinet space to confirm fitment (Product Dimensions: 20"L x 20"W x 20"H).

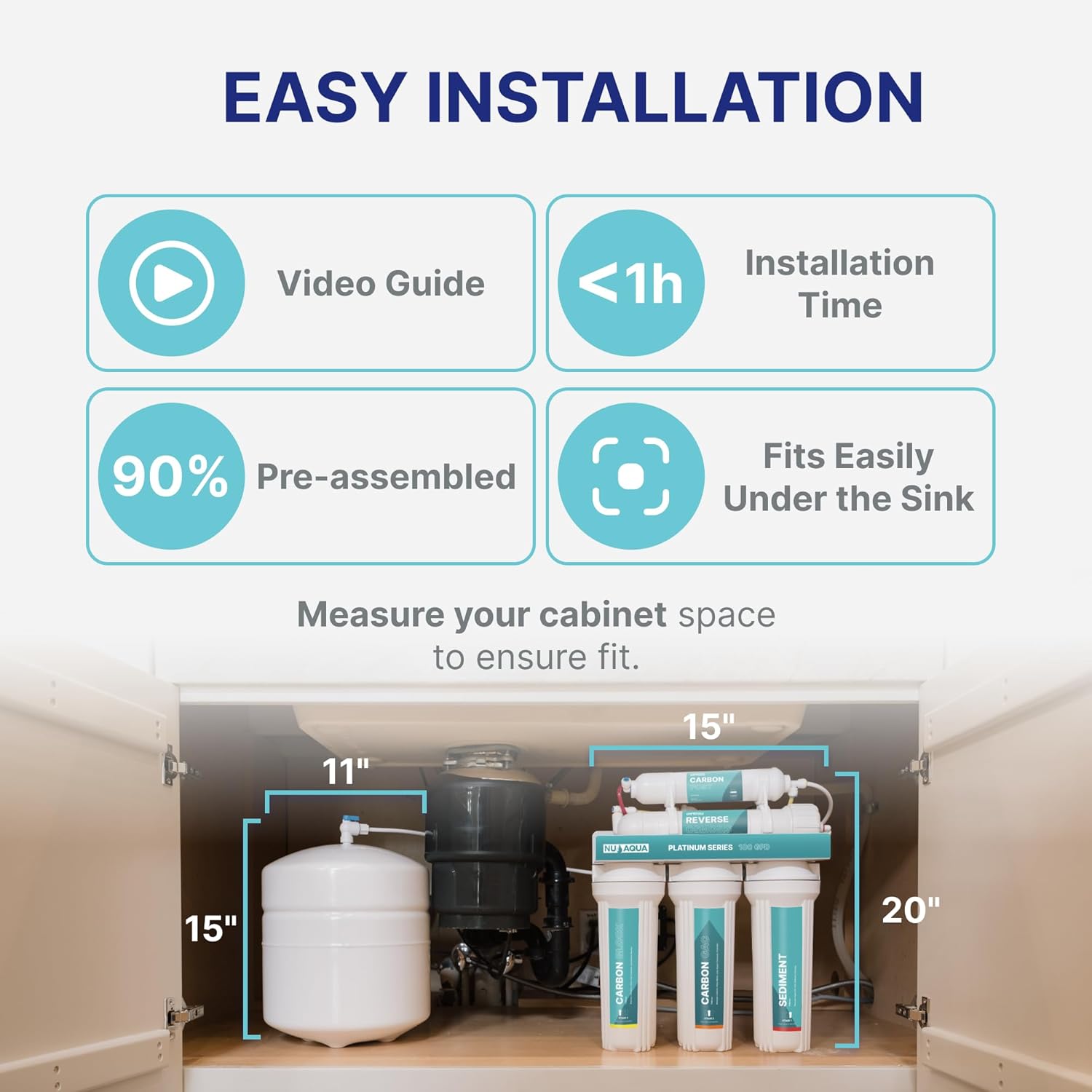

Image: Visual guide highlighting easy installation, including a video guide, less than 1 hour installation time, 90% pre-assembly, and compact design for under-sink fit.
Image: Illustration demonstrating the 100 Gallon Per Day output of the NU Aqua system, which is double the output of standard 50 GPD filters, meeting the needs of larger households.
For detailed installation instructions, it is highly recommended to consult the official installation videos provided by NU Aqua. Pay close attention to all connections to ensure no leaks occur after setup. The large tank may take approximately two hours to fill initially.
The included Ice Maker & Fridge Connection Kit provides 16FT of 1/4” white tubing, a 1/4” x 1/4” x 1/4” T valve, a 1/4” x 1/4” Inline shut off valve, and a compression fitting set for connecting your RO system to ice makers, water coolers, dispensers, humidifiers, and refrigerators.
Operating Principles: 7-Stage Filtrēšana
The NU Aqua system employs a sophisticated 7-stage filtration process to deliver exceptionally pure water:
Image: Detailed diagram illustrating the seven stages of filtration: Sediment, Carbon GAC, Carbon Block, RO Membrane, Carbon Post, Alkaline Remineralization, and UV Sterilization, highlighting removal of lead, chlorine, bacteria, and microorganisms.
- Nogulumu filtrs: Removes larger particles like rust, sand, and dirt.
- Carbon GAC Filter: Reduces chlorine, odors, and tastes.
- Oglekļa bloka filtrs: Further removes chlorine, organic chemicals, and improves water clarity.
- RO membrāna: The core of the system, utilizing HydraCoil technology for up to 50% cleaner water, rejecting up to 99% of 1000+ pollutants including arsenic, fluoride, and lead.
- Carbon Post Filter: Polishes the water for final taste and odor removal.
- Alkaline Remineralization Filter: Adds beneficial minerals like calcium and magnesium, boosts antioxidants, increases alkalinity, and enhances water oxygen levels.
- UV sterilizācija: The UV-C sterilization stage is designed to remove 99.9% of microorganisms, effectively disinfecting your water to the highest standards with a high output, long-lasting UV bulb and a bonus flow sensor to prevent warm water and extend bulb life.
Image: Diagram detailing the internal components of the Alkaline Remineralization filter (ORP Balls, Calcite, Maifan, Tourmaline, BioCeramic) and its benefits: adds calcium/magnesium, boosts antioxidants, boosts alkalinity, increases water oxygen levels.
Image: Information about the UV-C sterilization stage, emphasizing its ability to remove 99.9% of microorganisms, effectively disinfect water, and featuring a high output, long-lasting UV bulb with a bonus flow sensor.
Apkope
Regular maintenance, primarily filter replacement, is crucial for the optimal performance and longevity of your NU Aqua system. High-quality filters not only improve water quality but also protect the system's components.
Image: Diagram showing the proprietary ridged design of the filter, which offers 30% more surface area, leading to less frequent filter replacement and long-term savings, including an estimated $550 per year saved by not buying bottled water.
This system includes a 1-year replacement filter set. The proprietary ridged design of the filters provides 30% more surface area, which can lead to less frequent filter replacements and long-term savings.
Refer to the filter replacement schedule in your quick start guide or on the NU Aqua website for specific intervals. Always use genuine NU Aqua replacement filters to ensure continued performance and warranty validity.
Problēmu novēršana
If you encounter any issues with your NU Aqua Reverse Osmosis system, please refer to the following common troubleshooting tips:
- Zema ūdens plūsma: Check the water supply valve to ensure it is fully open. Verify that the storage tank valve is open. Filters may be clogged and require replacement.
- Noplūduši savienojumi: Turn off the water supply immediately. Inspect all connections and tubing for proper seating and tightness. Ensure O-rings are correctly positioned and not damaged.
- Neparasta garša vai smarža: This often indicates that carbon filters need replacement. Ensure the system has been flushed properly after initial installation or filter changes.
- Nav ūdens ražošanas: Check the water supply, tank pressure, and ensure all valves are open. The RO membrane might be clogged or damaged.
For more complex issues or if troubleshooting steps do not resolve the problem, please contact NU Aqua customer support.
Specifikācijas
| Funkcija | Detaļas |
|---|---|
| Zīmols | NU Aqua |
| Modeļa nosaukums | WU-100GPD-WP-UV-ALk |
| Produkta izmēri | 20 collu garums × 20 collu platums × 20 collu augstums |
| Preces svars | 40 mārciņas |
| Īpaša iezīme | Viegli uzstādīt |
| Plūsmas ātrums | 100 galoni dienā (GPD) |
| Filtrēšana Stages | 7 Stages (Sediment, Carbon GAC, Carbon Block, RO Membrane, Carbon Post, Alkaline Remineralization, UV Sterilization) |
| UPC | 021591640284 |
| Krāsa | Balts |
Garantija un atbalsts
NU Aqua stands by the quality of its products, offering a 3-Year Promise of Quality un Mūža atbalsts for your Reverse Osmosis system.

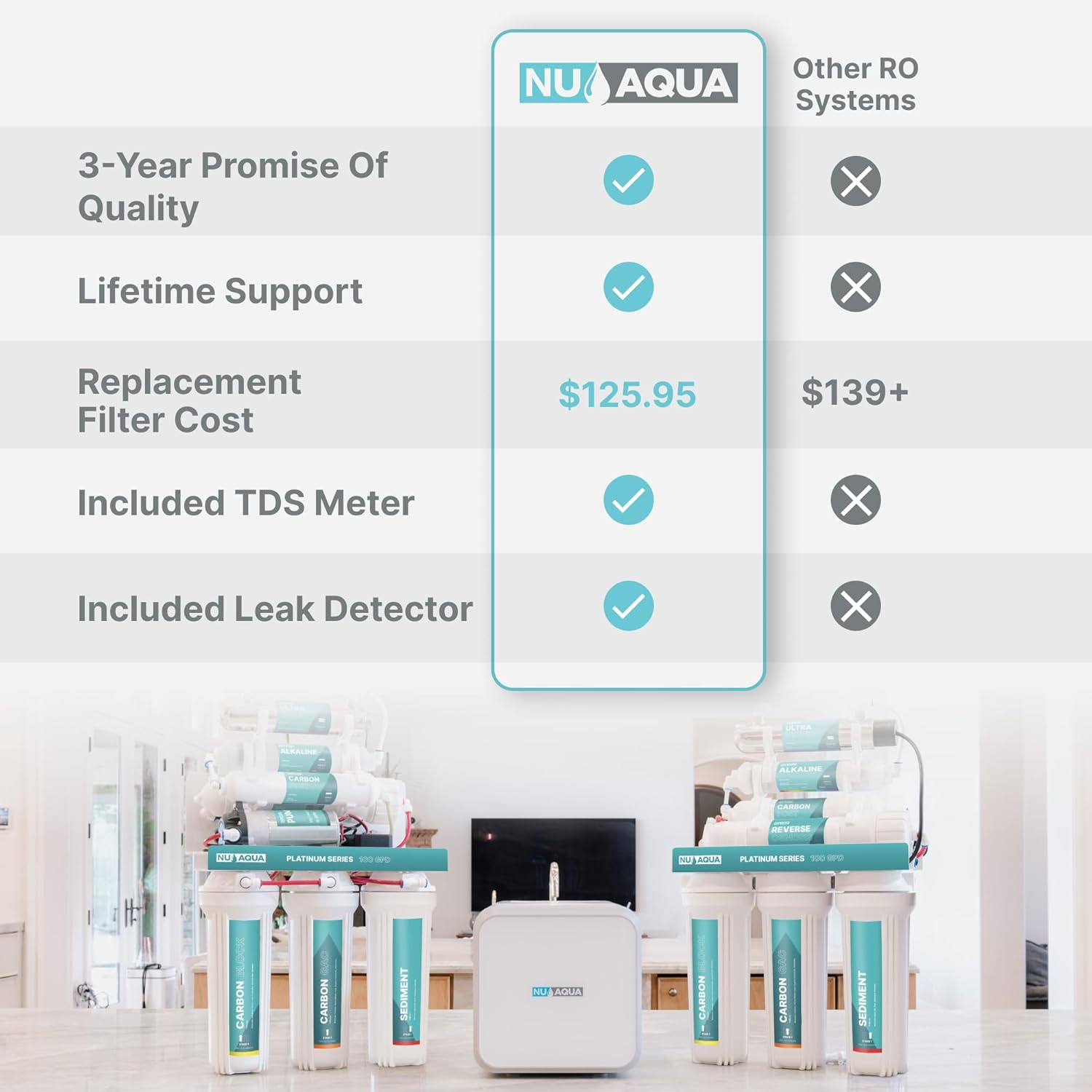

Image: Comparison chart highlighting NU Aqua's advantages over other RO systems, including a 3-Year Promise of Quality, Lifetime Support, competitive replacement filter cost, included TDS meter, and included leak detector.
For any questions, technical assistance, or warranty claims, please contact NU Aqua customer support through their official webvietnē vai kontaktinformācijā, kas norādīta jūsu produkta iepakojumā.
Paplašinātam segumam ir pieejami papildu aizsardzības plāni:
- 3 gadu aizsardzības plāns
- 4 gadu aizsardzības plāns
- Pilnīga aizsardzība (mēneša plāns, kas aptver atbilstošus pirkumus)
For more details on protection plans, please refer to the product listing or contact your retailer.
