1. Ievads un beigasview
Thank you for choosing the HOMCOM Electric Fireplace, Model ES820-383V91WT. This decorative electric fireplace is designed to provide both aesthetic ambiance and effective heating for your living space. It features a realistic 3D flame effect with an ember bed, adjustable brightness, and intelligent heating control. With a powerful 1800W heater, it can warm rooms up to 30m² (323 sq ft). The unit includes a remote control for convenient operation, a weekly timer, and built-in overheat protection for safety.
Image 1.1: The HOMCOM Electric Fireplace, Model ES820-383V91WT, featuring a white mantel and a realistic flame effect.
2. Drošības instrukcijas
Please read and understand all safety instructions before operating this electric fireplace. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Vispārējā drošība: Ensure the fireplace is connected to a properly grounded outlet. Do not use extension cords or power strips.
- Izvietojums: Place the fireplace on a firm, level surface. Maintain a minimum distance of 1 meter (3 feet) from combustible materials such as curtains, furniture, bedding, and paper.
- Ventilācija: Do not block air vents. Ensure proper airflow around the unit to prevent overheating.
- Darbība: Do not operate the fireplace if the cord is damaged or if the unit malfunctions. Do not insert objects into any openings.
- Bērni un mājdzīvnieki: Keep children and pets away from the fireplace, especially when it is operating. The glass surface can become hot.
- Aizsardzība pret pārkaršanu: The unit is equipped with an automatic shut-off feature to prevent overheating. If the unit shuts off, unplug it, allow it to cool, and check for obstructions before restarting.
- Tīrīšana un apkope: Pirms tīrīšanas vai jebkādas apkopes vienmēr atvienojiet kamīnu no elektrotīkla.
3. Iepakojuma saturs
Verify that all components are present before assembly and operation:
- Electric Fireplace Unit (Mantel and Insert)
- Tālvadības pults
- Montāžas aparatūra (skrūves, savienotāji utt.)
- Lietotāja rokasgrāmata
4. Uzstādīšana un montāža
This electric fireplace requires assembly. Please follow these general steps. Refer to the included assembly diagram for detailed instructions specific to your model.
- Izpakošana: Uzmanīgi izņemiet visas sastāvdaļas no iepakojuma. Novietojiet tās uz mīkstas, tīras virsmas, lai novērstu skrāpējumus.
- Identificējiet daļas: Identify all parts and hardware using the provided parts list in the assembly diagram.
- Assemble Mantel: Follow the step-by-step instructions to assemble the fireplace mantel structure. Secure all connections firmly.
- Insert Firebox: Once the mantel is assembled, carefully slide the electric firebox insert into the designated opening. Ensure it is seated correctly and secured if required.
- Izvietojums: Position the assembled fireplace in your desired location, ensuring it is on a stable, level surface and adheres to all safety clearance requirements.
Image 4.1: Dimensions of the assembled fireplace: 120 cm (Length) x 24 cm (Width) x 80 cm (Height).
5. Lietošanas instrukcijas
The HOMCOM Electric Fireplace can be operated using the control panel on the unit or the included remote control.
5.1 Vadības panelis
The control panel is located on the front of the firebox insert. It includes buttons for Power, Flame Effect, Timer, and Heating.
Image 5.1: Control panel with digital display and function buttons.
5.2 tālvadības pults
The remote control allows for convenient operation from a distance of up to 8 meters (26.2 feet). Ensure there is a clear line of sight to the fireplace sensor.
Image 5.2: Remote control for the electric fireplace.
5.3. Funkcijas
- Ieslēgšana/izslēgšana: Nospiediet barošanas pogu, lai ieslēgtu vai izslēgtu ierīci.
- Liesmas efekts: Press the flame button to cycle through 3 levels of flame brightness. The flame effect can be used independently without the heating function.
Image 5.3: Adjustable flame effect with 3 brightness options.
- Sildīšanas funkcija: Press the heating button to activate the heater. The unit will automatically adjust heating power based on the temperature difference. The temperature range is 17-27°C (62-82°F).
- Taimeris: Press the timer button to set an automatic shut-off time from 0.5 to 6 hours.
- Temperatūras regulēšana: Use the '+' and '-' buttons on the remote control to adjust the desired temperature.
Image 5.4: Key operational features including coverage area, noise level, overheat protection, and temperature range.
6. Apkope
Regulāra apkope nodrošina elektriskā kamīna optimālu darbību un ilgmūžību.
- Tīrīšana: Pirms tīrīšanas vienmēr atvienojiet ierīci no strāvas. Izmantojiet mīkstu, damp drānu, lai noslaucītu ārējās virsmas. Nelietojiet abrazīvus tīrīšanas līdzekļus, aerosolus vai spēcīgas ķīmiskas vielas.
- Gaisa atveres: Periodically check and clean the air intake and outlet vents to ensure they are free from dust and debris. Use a vacuum cleaner with a brush attachment if necessary.
- Uzglabāšana: If storing the fireplace for an extended period, unplug it and cover it to protect it from dust.

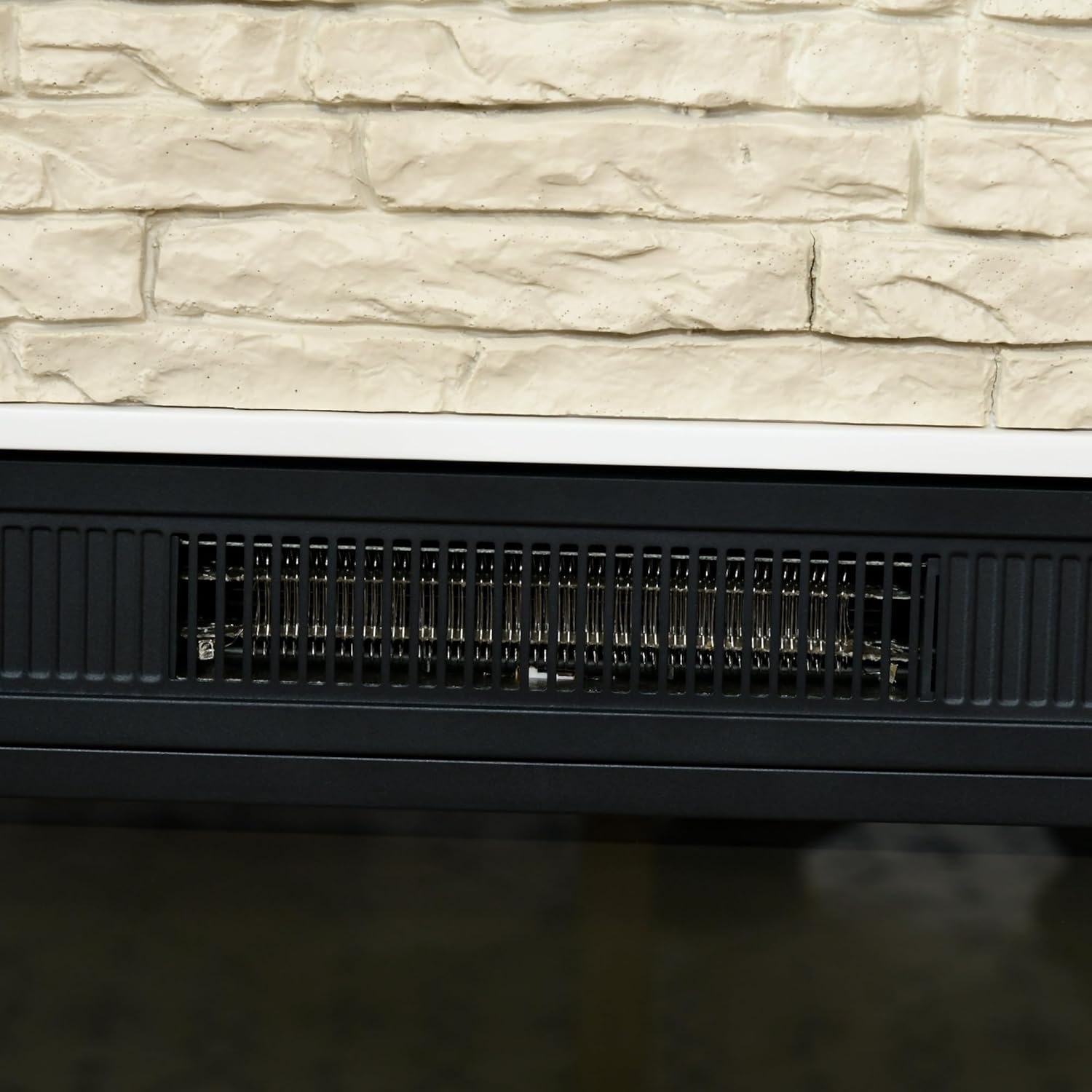

Image 6.1: Heater vent location, which should be kept clear of obstructions.
Image 6.2: The top surface of the mantel, which can be cleaned with a soft cloth.
7. Traucējummeklēšana
If you encounter issues with your HOMCOM Electric Fireplace, refer to the following common problems and solutions:
| Problēma | Iespējamais cēlonis | Risinājums |
|---|---|---|
| Nav strāvas/Ierīce neieslēdzas | Unit unplugged, circuit breaker tripped, power button not pressed. | Ensure the unit is securely plugged into a working outlet. Check your household circuit breaker. Press the power button on the unit or remote. |
| Nav siltuma jaudas | Heater not activated, temperature setting too low, air vents blocked, overheat protection activated. | Press the heating button. Increase the temperature setting. Check and clear any obstructions from the air vents. If overheat protection activated, unplug, wait 15-20 minutes, then plug back in. |
| Liesmas efekts nedarbojas | Flame effect not activated, LED bulbs faulty. | Press the flame button to activate or adjust brightness. If still not working, contact customer support. |
| Tālvadības pults nedarbojas | Batteries dead, remote sensor blocked, remote out of range. | Replace batteries in the remote control. Ensure a clear line of sight between the remote and the fireplace sensor. Move closer to the unit. |
| Error Code 'E3' displayed | Pārkaršanas aizsardzība ir aktivizēta. | This indicates the unit has overheated. Unplug the fireplace immediately. Allow it to cool down for at least 15-20 minutes. Check for any obstructions around the air vents. Once cooled and clear, plug it back in and restart. If the error persists, contact customer support. |
Ja problēma joprojām pastāv pēc šo risinājumu izmēģināšanas, lūdzu, sazinieties ar klientu atbalsta dienestu.
Video 7.1: A short video demonstrating the control panel and an 'E3' error code, indicating an overheat condition.
8. Specifikācijas
| Zīmols | HOMCOM |
| Modeļa numurs | ES820-383V91WT |
| Krāsa | Balts |
| Izmēri (G x P x A) | 120 x 24 x 80 cm (47.2 x 9.4 x 31.5 collas) |
| Svars | 33 kg (72.7 mārciņas) |
| Jaudas izvade | 1800 W |
| Voltage | 240 V |
| Materiāls | Wood Melamine, Metal, ABS |
| Heating Area Coverage | Līdz 30 m² (323 kvadrātpēdām) |
| Temperatūras diapazons | 17-27°C (62-82°F) |
| Trokšņa līmenis | < 50 dB |
| Īpašas funkcijas | Adjustable brightness and temperature, Remote control, Weekly timer, Realistic flame effects, Silent operation, Overheat protection |
9. Garantija un atbalsts
For warranty information, please refer to the terms and conditions provided at the time of purchase or contact your retailer. Keep your purchase receipt as proof of purchase.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact the seller, Spanish Aosom, S.L. (EU), or visit the official HOMCOM webvietne ar klientu apkalpošanas kontaktinformāciju.
Kontaktinformācija:
Seller: Spanish Aosom, S.L. (EU)
Webvietne: HOMCOM Store on Amazon.es
