NU Aqua 600 GPD 4-Stage Alkaline Tankless Reverse Osmosis Water Filter System User Manual

1. Ievads

Thank you for choosing the NU Aqua 600 GPD 4-Stage Alkaline Tankless Reverse Osmosis Water Filter System. This system is designed to provide high-quality, purified water directly from your tap, offering superior filtration and convenience. Its compact, tankless design saves space while delivering an impressive 600 Gallons Per Day (GPD) with a highly efficient 2:1 pure to waste water ratio. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your system.

2. Drošības informācija

Please read all safety instructions carefully before installing or operating the system. Failure to follow these instructions could result in property damage, injury, or system malfunction.

• Pārliecinieties, vai visi savienojumi ir droši, lai novērstu noplūdes.
• Nepakļaujiet sistēmu sasalšanas temperatūrai.
• Use only genuine NU Aqua replacement filters.
• Disconnect power and water supply before performing any maintenance.
• The system is designed for cold water use only.
• Install the system in an area with adequate drainage in case of a leak.

Leak Stop Valve: The system includes a leak stop valve designed to automatically shut off the water supply if a leak is detected, protecting your cabinet from water damage. Ensure this valve is properly installed and maintained.

3. Iepakojuma saturs

Pirms instalēšanas sākšanas pārliecinieties, vai ir visas sastāvdaļas:

• NU Aqua Tankless RO System Unit
• Smart LED Countertop Faucet
• PP + CB Carbon Filter (Stage 1)
• RO Membrane Filter (Stage 2)
• Alkaline Filter (Stage 3/4, depending on configuration)
• Installation Hardware (tubing, adapters, fittings)
• Noplūdes apturēšanas vārsts
• Strāvas adapteris
• Lietošanas instrukcija (šis dokuments)

4. Iestatīšana un instalēšana

The NU Aqua Tankless RO System is designed for quick and easy installation. No professional help is typically required. Please follow these steps carefully.

4.1. Pārbaudes pirms uzstādīšanas

• Atrašanās vieta: Choose an under-sink location that provides sufficient space for the unit and access for filter changes. The tankless design offers significant space-saving benefits.
• Ūdens spiediens: Ensure your water pressure is within the operating requirements (typically 15-100 PSI).
• Strāvas kontaktligzda: A standard electrical outlet is required for the system's pump.
• Rīki: Gather necessary tools such as a drill, wrench, screwdriver, and utility knife.

4.2 sistēma beigusiesview un uzstādīšanas video

Watch this video for a visual guide to the system's features and installation process.

4.3. Uzstādīšanas soļi

1. Izslēdziet ūdens padevi: Atrodiet un izslēdziet aukstā ūdens padeves vārstu zem izlietnes.
2. Uzstādiet padeves ūdens adapteri: Disconnect the cold water line from your existing faucet. Install the provided feed water adapter to the cold water supply valve, then reconnect your faucet's cold water line to the adapter.
3. Uzstādiet jaucējkrānu: Drill a hole (if necessary) in your countertop or sink for the new Smart LED Faucet. Secure the faucet according to the instructions provided with the faucet.
4. Uzstādiet notekas seglu: Attach the drain saddle to the drain pipe under your sink. Ensure it is positioned above the P-trap.
5. Mount Leak Stop Valve: Secure the leak stop valve to the bottom of your cabinet. This device will prevent flooding in case of a leak.
6. Pievienojiet caurules: Connect the various color-coded tubes from the feed water adapter, faucet, drain saddle, and leak stop valve to the corresponding ports on the main RO unit. Refer to the detailed diagram in the printed manual for specific connections.
7. Instalējiet filtrus: Insert the PP+CB, RO, and Alkaline filters into their designated slots on the main unit. Ensure they are securely twisted into place.
8. Pievienojiet strāvu: Plug the power adapter into the RO unit and then into a grounded electrical outlet.
9. Skalošanas sistēma: Turn on the cold water supply. Open the RO faucet and allow water to run for at least 15-30 minutes to flush the system and remove any carbon fines or air.

Image: Easy Installation. This image illustrates the compact NU Aqua tankless RO system installed under a sink, highlighting its simple setup process which typically takes around 30 minutes and does not require a plumber.

Image: NU Aqua Tankless RO System Dimensions. This image shows the main RO unit and the alkaline filter with their respective dimensions: Main unit is 15.5 inches long, 5.5 inches wide, and 13.5 inches high. The alkaline filter is 13 inches high and 3.5 inches wide.

Image: Space-Saving Tankless Design. This image compares the compact NU Aqua tankless system to a traditional tank-based RO system, demonstrating how the tankless design frees up to 70% more under-sink space.

5. Lietošanas instrukcijas

Your NU Aqua Tankless RO System is designed for simple operation, providing purified water on demand.

5.1 Smart LED Countertop Faucet

The included Smart LED Faucet provides visual cues about your water quality and filter status:

• Vienmērīgi zils: Indicates excellent water quality.
• Mirgojošs zils: Indicates good water quality.
• Mirgojošs sarkans: Indicates fair water quality, suggesting filters may need replacement soon.
• Vienmērīgi sarkans: Indicates poor water quality, requiring immediate filter replacement.

Image: Smart Color-Changing LED Faucet. This image displays the smart faucet with its LED indicator, showing different colors (solid blue, flashing blue, flashing red, solid red) to represent varying levels of water quality.

5.2 Water Flow and Efficiency

The system delivers 600 Gallons Per Day (GPD) with a 2:1 pure to waste water ratio, making it highly efficient compared to traditional RO systems. This means for every 2 gallons of purified water produced, only 1 gallon is sent to the drain.

Image: 600 GPD Rapid Water Flow. This image compares the water flow rate of the NU Aqua 600 GPD system (filling a cup in 8 seconds) against a 400 GPD system (filling a cup in 12 seconds), illustrating its faster delivery.

Image: Water Conservation Comparison. This image visually compares the pure to drain water ratio of the NU Aqua system (2:1) with other brands (1:1) and traditional RO systems (4:1), highlighting its superior water conservation.

6. Apkope un filtra nomaiņa

Regular maintenance, particularly filter replacement, is crucial for maintaining the performance and water quality of your RO system. The Smart LED Faucet will indicate when filter changes are needed.

6.1 Quick Filter Changing

The NU Aqua system features a quick-change filter design, allowing for replacements in seconds with just one hand.

Image: Quick Filter Changing. This image contrasts the quick 2-second filter replacement of the tankless system with the 30-minute process for a traditional tank system, emphasizing the ease of maintenance.

6.2 Filter Types and Replacement Schedule

Your system includes the following filters:

• Stage 1: PP + CB Carbon Filter

  Removes sediment, rust, chlorine, VOCs, unpleasant tastes, and odors. Recommended replacement: Every 12 months.



  Attēls: 6-Stage PP + CB Filter. This diagram illustrates the internal components of the PP + CB filter, showing how it removes suspended particles, bad taste, odors, chlorine, VOCs, rust, and sediment. It also indicates a recommended change every 12 months.
• Stage 2: 600 GPD Reverse Osmosis Membrane

  Removes up to 99% of contaminants including PFAS, atrazine, salts, and heavy metals such as copper, chromium, and lead. Recommended replacement: Every 12 months.

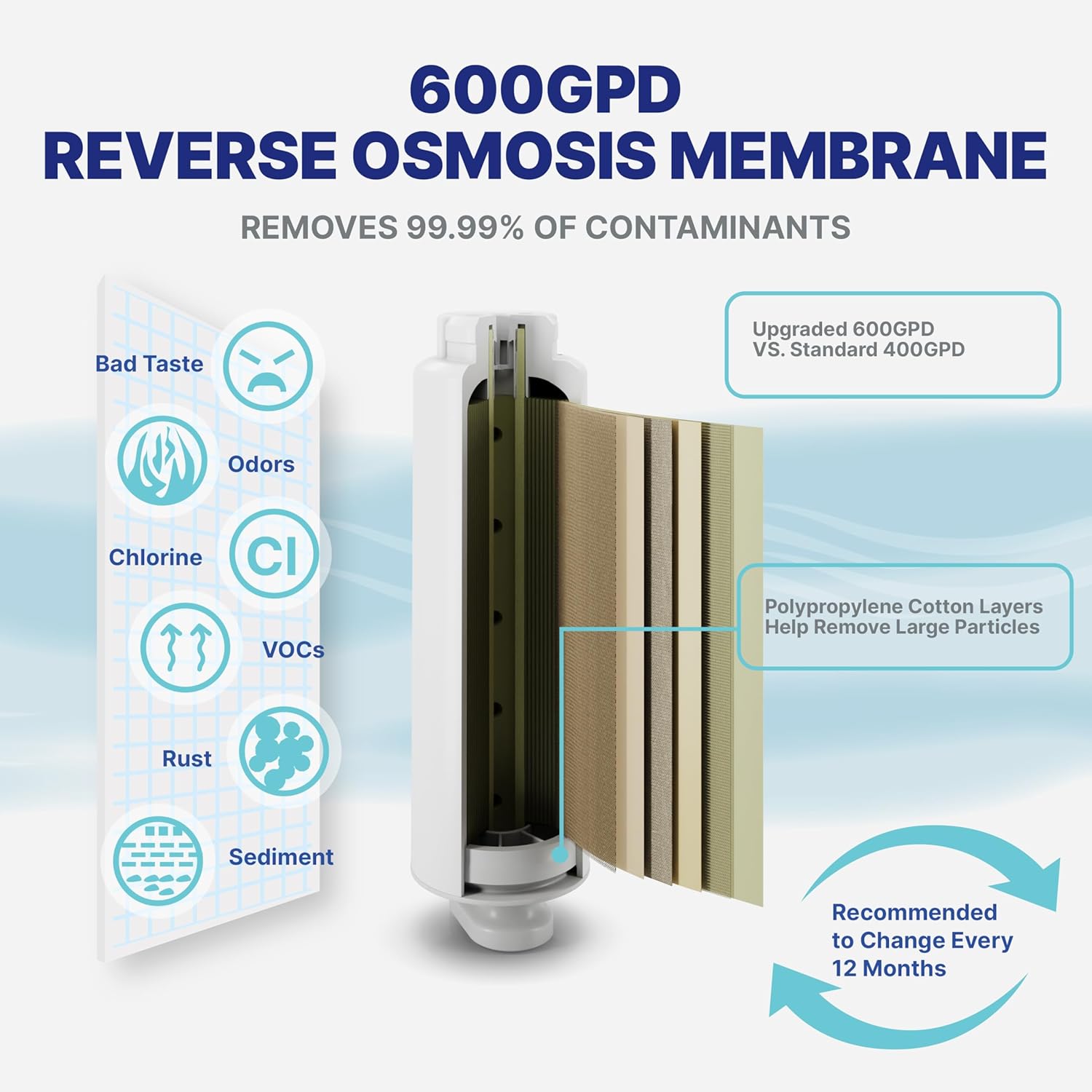

  Image: 600 GPD Reverse Osmosis Membrane. This diagram shows the RO membrane filter, highlighting its ability to remove 99.99% of contaminants including bad taste, odors, chlorine, VOCs, rust, and sediment. It also suggests a 12-month replacement cycle.

• Stage 3/4: Alkaline Remineralization Filter (Optional)

  Replenishes beneficial minerals (remineralization), raises oxygen levels, boosts alkalinity, and enhances antioxidants. Recommended replacement: Every 12 months.



  Image: Optional Alkaline Remineralization Filter. This diagram details the internal structure of the alkaline filter, showing components like Bio Ceramic, Tourmaline, Calcite, Maifan, and ORP Balls, which add natural minerals, boost alkalinity, and increase oxygen levels. Recommended change is every 12 months.

Always use genuine NU Aqua replacement filters to ensure optimal performance and to maintain your warranty.

7. Traucējummeklēšana

This section addresses common issues you might encounter with your NU Aqua RO system. For problems not listed here, please contact customer support.

8. Specifikācijas

9. Garantija un atbalsts

NU Aqua stands behind the quality of its products. This RO system is backed by a 120-day "Love Your Water" Guarantee, allowing you to experience the benefits risk-free. Additionally, the product may come with a manufacturer's warranty. Please refer to the warranty card included in your package or visit the official NU Aqua webvietni, lai iepazītos ar detalizētiem garantijas noteikumiem un nosacījumiem.

For technical assistance, troubleshooting, or to order replacement parts and filters, please contact NU Aqua Customer Support:

• Webvietne: www.nuaquawater.com (for support and replacement filters)
• Tiešsaistes tērzēšanas atbalsts: Available on the NU Aqua website for quick answers to your questions.

To ensure the lifetime warranty, you may need to sign up for the replacement filter service as per NU Aqua's policy.
