Ievads
The SVBONY SV172 430mm Lens Warmer Dew Heater Strip is designed to prevent dew, fog, and condensation from forming on the optical surfaces of telescopes, camera lenses, and other optical equipment during cold or humid conditions. This manual provides essential information for the proper setup, operation, and maintenance of your device.
Kas atrodas kastē
- 1X SV172 Lens Warmer
Image showing the contents of the SVBONY SV172 package, including the lens warmer, controller, and mesh storage bag.
Galvenās iezīmes
- USB interfeiss: Easily plug into a USB power adapter, portable charger, or other USB power sources for versatile indoor and outdoor use.
- Regulējams temperatūras diapazons: Working temperature can be adjusted from 25°C to 70°C (77°F to 158°F) to suit various environmental conditions.
- Fastener Design: Equipped with handy fasteners for secure attachment around your lens or telescope, allowing for easy adjustment.
- 430mm Effective Heater Length: Specifically designed to eliminate dew, fog, and condensation on optical surfaces during cold weather.
- Daudzfunkcionāls lietojums: With a total length of 550mm, it can also be used to keep bottles and coffee cups warm in winter.
Iestatīšana un uzstādīšana
Follow these steps to properly set up and install your SVBONY SV172 Lens Warmer:
- Izpakojiet ierīci: Carefully remove the lens warmer and its components from the packaging.
- Identificējiet sastāvdaļas: Familiarize yourself with the heater strip, temperature controller, and USB cable.
- Wrap Around Lens/Telescope: Securely wrap the heater strip around the optical tube of your telescope or camera lens using the integrated fasteners. Ensure the effective heating length covers the area prone to dew formation.

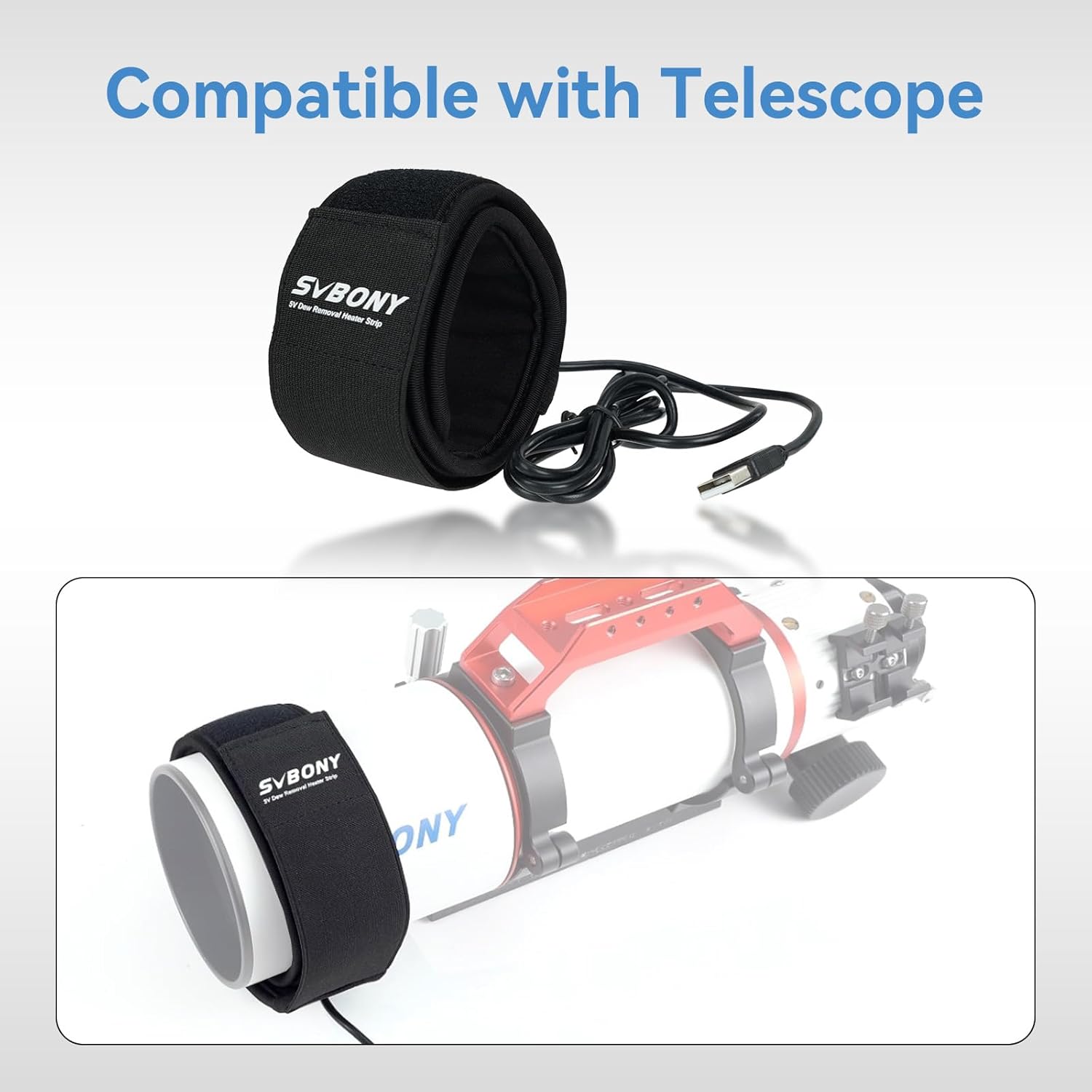

The SVBONY SV172 Dew Heater Strip wrapped around a telescope, demonstrating its compatibility and application.
- Pievienojiet strāvu: Connect the USB cable from the heater strip to the temperature controller, then connect the controller's USB plug to a compatible USB power source (e.g., power bank, laptop, car charger).
Diagram illustrating various USB power sources compatible with the lens warmer, including power banks, laptops, and car chargers.
Video demonstrating the installation and basic function of the SVBONY SV172 dew heater strip on a telescope. It shows how the strip wraps around the optical tube and connects to power.
Video demonstrating the general use and installation of a USB lens warmer, showing how it attaches to a camera lens.
Lietošanas instrukcijas
The SVBONY SV172 features a PWM (Pulse Width Modulation) function for precise temperature control.
- Ieslēgšana/izslēgšana: Press the ON/OFF button on the temperature controller to turn the device on or off.
- Pielāgot temperatūru: Use the '+' and '-' buttons to adjust the working temperature. The temperature range is 25°C to 70°C (77°F to 158°F). The current temperature setting will be displayed on the controller's screen.
Close-up of the SVBONY SV172's PWM function, indicating intelligent defogging and heating capabilities with temperature display.
Video illustrating the Pulse Width Modulation (PWM) function of the SVBONY SV172 430mm dew heater strip, showing how to adjust heating levels for efficient dew prevention.
Specifikācijas
| Funkcija | Detaļas |
|---|---|
| Produkta izmēri | 4.8 x 1.4 x 3.7 collas |
| Preces svars | 5.6 unces |
| Preces modeļa numurs | FCAW9132D |
| Ražotājs | SVBONY |
| Effective Heater Length | 430 mm |
| Kopējais garums | 550 mm |
| Interfeisa veids | A tipa USB |
| Ievades apjomstage | DC 5V |
| Ievades strāva | 2A |
| Jauda | 10W |
| PWM funkcija | Atbalstīts |
| Strāvas kabeļa garums | 1.2 m |
| Dew Heater Strip Material | Imitation OK cloth + SBR + Black-T + Aluminum Film + Pure cotton |

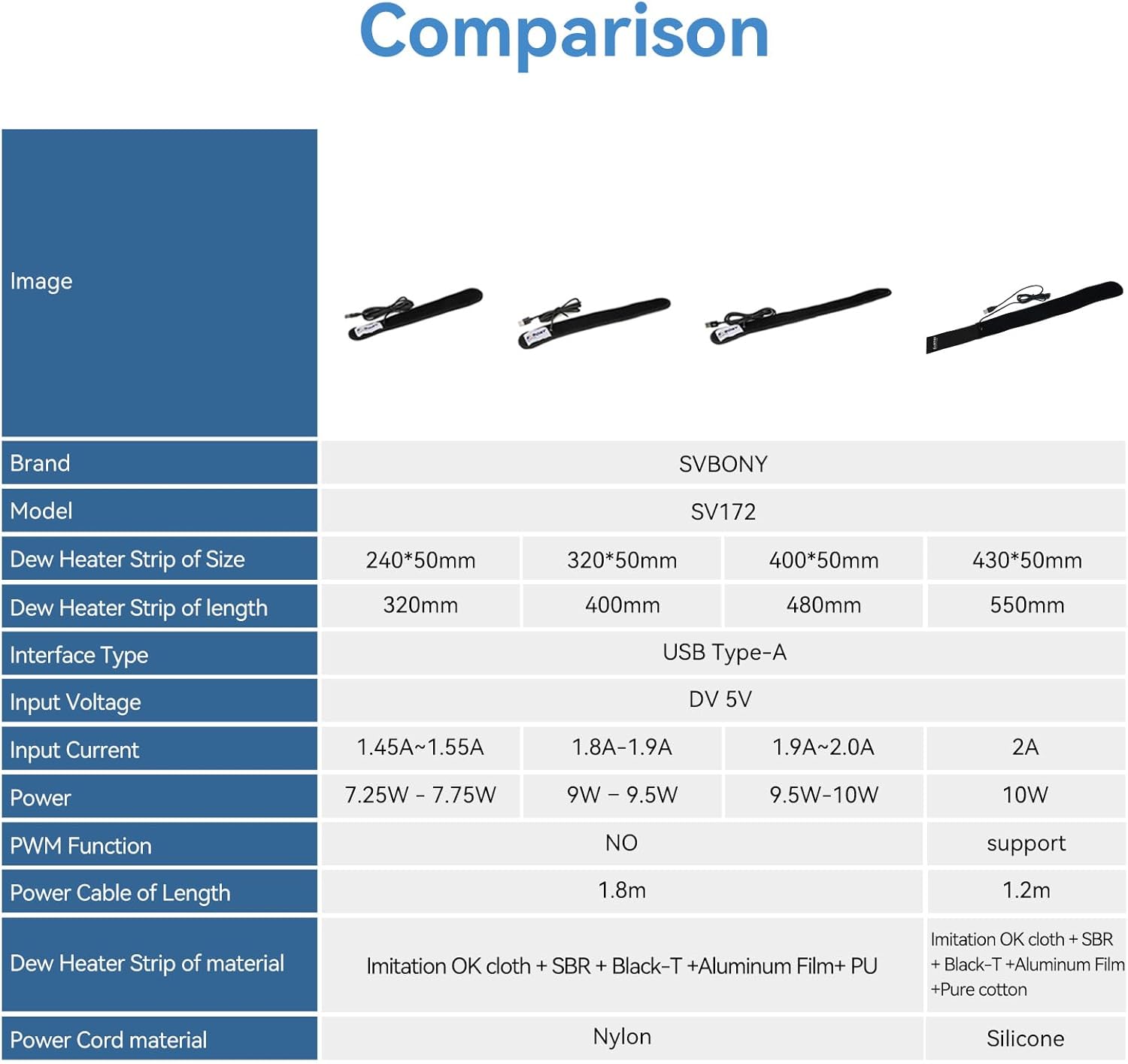

Comparison table of SVBONY SV172 dew heater strip specifications across different sizes, highlighting features like PWM function and material.
Apkope
To ensure the longevity and optimal performance of your SVBONY SV172 Lens Warmer, follow these maintenance guidelines:
- Tīrīšana: Gently wipe the exterior of the heater strip with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
- Uzglabāšana: When not in use, store the lens warmer in a cool, dry place, away from direct sunlight and extreme temperatures. The included mesh bag is ideal for storage.
- Kabeļa kopšana: Lai novērstu iekšējus bojājumus, izvairieties no USB kabeļa pārmērīgas saliekšanas vai locīšanas.
Problēmu novēršana
If you encounter issues with your SVBONY SV172 Lens Warmer, consider the following:
- Ierīce nesilda: Ensure the USB cable is securely connected to both the heater strip and the power source. Verify that the power source is active and providing sufficient power (DC 5V, 2A). Check if the device is turned on via the controller.
- Nepietiekama apkure: Adjust the temperature setting using the '+' button on the controller to a higher level. Ensure the heater strip is snugly wrapped around the optical tube for efficient heat transfer.
- Kontrollera darbības traucējumi: If the controller display is unresponsive or shows erratic readings, try disconnecting and reconnecting the power. If the issue persists, contact customer support.
Garantija un atbalsts
For warranty information, technical support, or service inquiries, please refer to the official SVBONY webvietnē vai sazinieties tieši ar klientu apkalpošanas dienestu. Saglabājiet pirkuma čeku kā pirkuma apliecinājumu garantijas prasību gadījumā.
