1. Ievads
The Proxel EPS-DUAL 4.0+D is an advanced electromagnetic parking sensor system designed to assist drivers with rear parking maneuvers. This system provides an invisible, drill-free solution for bumper protection, utilizing an electromagnetic field to detect obstacles. The integrated display offers visual feedback on object proximity, enhancing parking safety and convenience.
Galvenās funkcijas ietver:
- Detection range from 70-80 cm down to a few centimeters.
- Comprehensive obstacle detection across the entire bumper length.
- Flexible 3.50 m aluminum antenna sensor, adjustable in length.
- Easy installation without drilling into the bumper, maintaining an invisible exterior.
- Updated software with new alert tones and four adjustable sensitivity levels.
Image: Illustration of the electromagnetic field coverage at the rear of a vehicle.
2. Iepakojuma saturs
Pārliecinieties, vai iepakojumā ir visas sastāvdaļas:
- Control Unit (EPS-DUAL 4.0)

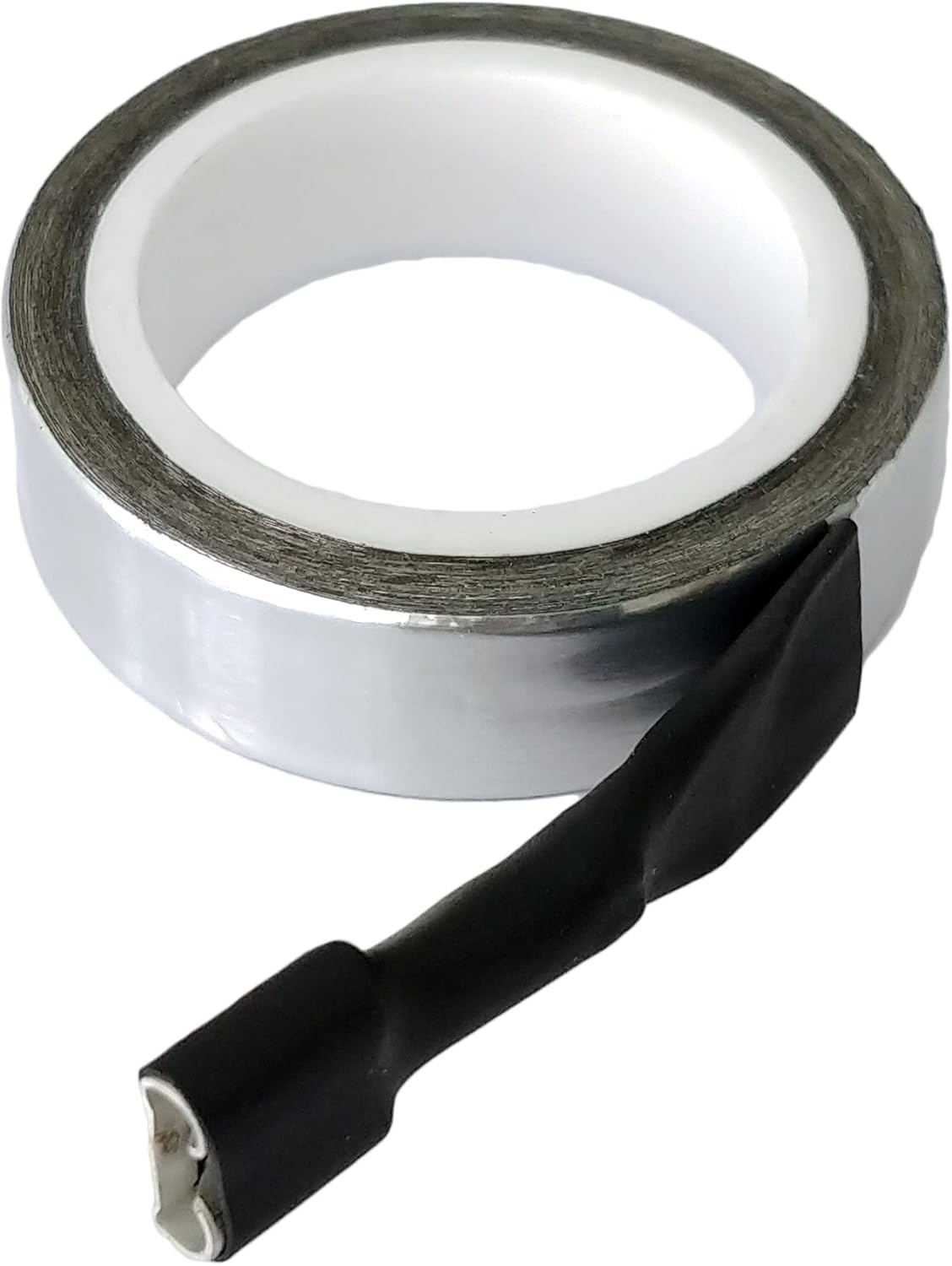

- Antenna Sensor Tape (3.50m)
- Display Unit with Cable
- Strāvas pieslēguma kabelis
- Adhesive Strips for mounting
- Lietotāja rokasgrāmata (šis dokuments)
Image: Complete kit contents of the Proxel EPS-DUAL 4.0+D parking sensor system.
3. Iestatīšana un instalēšana
The Proxel EPS-DUAL 4.0+D system is designed for rear bumper installation without drilling. Follow these steps carefully:
3.1. Antenna Sensor Installation
- Prepare the Bumper: Clean the inner surface of the rear bumper thoroughly. Ensure it is dry and free of grease or dirt.
- Apply Antenna Tape: Carefully peel the backing from the antenna sensor tape. Apply the tape to the inside of the bumper, ensuring it runs horizontally along the entire length of the bumper. The tape should be positioned at a consistent height.
- Apgriezt lieko: If the antenna tape is longer than your bumper, you may trim the excess using scissors. Ensure the cut end is properly sealed or insulated if necessary, following specific instructions in the full manual.
Image: Trimming the flexible antenna sensor tape to fit the bumper length.
3.2. Control Unit Placement
Mount the control unit (EPS-DUAL 4.0) in a secure, dry location within the vehicle's rear compartment, away from direct heat or moisture. Use the provided adhesive strips for secure attachment.
Image: The Proxel EPS-DUAL 4.0 control unit with sensitivity adjustment switches.
3.3. Elektroinstalācijas savienojumi
- Antenas pievienošana: Plug the antenna sensor cable into the designated port on the control unit.
- Pievienojiet strāvu: Connect the power cable to the control unit and then to your vehicle's reverse light circuit. This ensures the system activates automatically when reverse gear is engaged. Consult your vehicle's wiring diagram or a professional for correct power connection points.
- Savienot displeju: Route the display cable from the control unit to the desired location for the display unit (e.g., dashboard). Plug the display cable into the control unit and the display.
Image: Power connection cable for the Proxel parking sensor system.
Image: Display connection cable for the Proxel parking sensor system.
3.4. Display Unit Placement
Mount the display unit in a location that is easily visible from the driver's seat but does not obstruct your view of the road. Use the provided adhesive for secure placement.
Image: The Proxel parking sensor display unit installed on a car dashboard, showing distance indication.
4. Lietošanas instrukcijas
4.1. System Activation
The EPS-DUAL 4.0+D system automatically activates when the vehicle's reverse gear is engaged. The display will illuminate, and the system will begin scanning for obstacles.
4.2. Displeja interpretācija
The display unit provides visual and audible feedback:
- Distance Indication: The central numerical display shows the approximate distance to the nearest obstacle in centimeters.
- Proximity Bars: LED bars on either side of the numerical display light up to indicate the proximity and direction of obstacles. More bars illuminated, or bars changing color (e.g., from green to yellow to red), indicate closer proximity.
- Skaņas brīdinājumi: The system emits beeping sounds. The frequency of the beeps increases as you get closer to an obstacle. A continuous tone typically indicates a very close distance (e.g., less than 30 cm).
Image: Close-up of the display unit, showing distance reading and proximity bars. Dimensions are 10 cm wide and 2 cm high.
4.3. Jutīguma regulēšana
The control unit features switches (typically DIP switches) to adjust the sensor's sensitivity. Refer to the markings on the control unit (e.g., 1, 2, 3, 4) to select one of the four available sensitivity levels. Higher sensitivity may detect objects earlier but could also lead to more false alarms in certain environments. Experiment to find the optimal setting for your vehicle and driving conditions.
5. Apkope
The Proxel EPS-DUAL 4.0+D system requires minimal maintenance:
- Keep Bumper Clean: Ensure the exterior of your bumper, where the antenna tape is installed, is kept clean from excessive dirt, snow, or ice, as these can interfere with sensor performance.
- Pārbaudiet savienojumus: Periodiski pārbaudiet visus vadu savienojumus, lai pārliecinātos, ka tie ir droši un bez korozijas vai bojājumiem.
- Display Cleaning: Clean the display unit with a soft, dry cloth. Avoid abrasive cleaners.
6. Traucējummeklēšana
If you experience issues with your Proxel EPS-DUAL 4.0+D system, consider the following:
- Sistēma neaktivizējas:
- Check power connections to the reverse light circuit. Ensure the reverse light is functioning.
- Verify all cables are securely plugged into the control unit and display.
- Inaccurate or Delayed Detection:
- Adjust the sensitivity settings on the control unit. Try a higher sensitivity level.
- Ensure the bumper surface is clean and free from obstructions (e.g., mud, snow, large stickers).
- Confirm the antenna tape is properly installed along the entire bumper length and is not damaged.
- Avoid installing the antenna tape too close to large metal objects or other electronic devices that might cause interference.
- Constant Beeping/False Alarms:
- Reduce the sensitivity setting on the control unit.
- Check for any objects permanently close to the bumper (e.g., tow hitch, spare tire mounted on the rear).
- Ensure the antenna tape is not creased or damaged, which could create localized interference.
- Displejs nedarbojas:
- Check the display cable connection to both the display unit and the control unit.
- Ensure the main system is receiving power and the control unit is active.
Image: If issues persist, consult the full manual or contact support.
7. Specifikācijas
| Zīmols | Proxel |
| Modeļa numurs | EPS-DUAL 4.0+D |
| Atklāšanas diapazons | 70 - 80 cm (up to a few centimeters) |
| Mērījumu precizitāte | ±3% |
| Antenna Sensor Length | 3.50 m (flexible, trimmable) |
| Instalācijas veids | Surface Mount (invisible, no drilling) |
| Izvades veids | Digital (with display and audio) |
| Darba temperatūra (augšējā) | 85 grādi pēc Celsija |
| Preces svars | 200 grami |
| Izcelsmes valsts | Itālija |
8. Informācija par garantiju
Proxel products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Proxel webvietne. Saglabājiet pirkuma apliecinājumu garantijas prasību iesniegšanai.
9. Atbalsts
For further assistance, technical support, or inquiries regarding your Proxel EPS-DUAL 4.0+D parking sensor system, please contact Proxel customer service. You can often find contact details on the official Proxel webvietnē vai caur mazumtirgotāju, kur iegādājāties produktu.
Apmeklējiet Proxel Brand Store for more information on Proxel products and accessories.
Image: Contact customer support for assistance.
