CHBMSS TC4M-N4N Temperature Controller User Manual

1. Produkts beidziesview

The CHBMSS TC4M-N4N is a compact and reliable digital temperature controller designed for precise temperature management in various applications. It offers features such as temperature calibration, high-temperature alarm, and selectable cooling or heating modes, ensuring stable and safe operation.

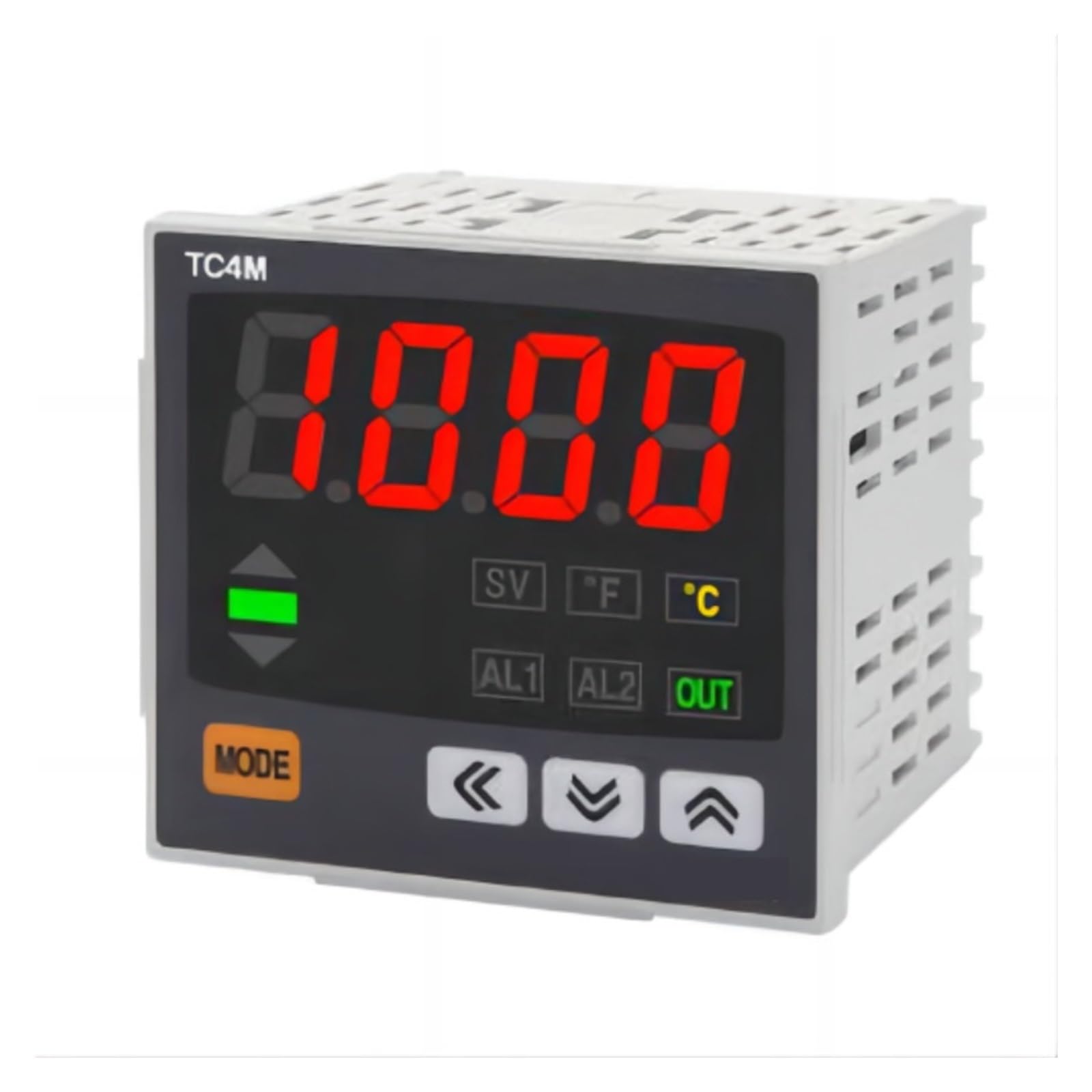

Figure 1: CHBMSS TC4M-N4N Temperature Controller Front Panel

Galvenās funkcijas:

• Kompakts un viegls dizains ērtai integrācijai.
• High reliability for consistent performance.
• Temperature calibration function for accurate readings.
• Audible alarm for high-temperature conditions.
• Selectable cooling or heating control modes.
• Adjustable maximum and minimum temperature limits for safety.

2. Drošības informācija

Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in equipment damage, personal injury, or improper operation.

• Nodrošiniet strāvas padeves apjomutage matches the controller's specifications.
• Pirms jebkādu elektroinstalācijas vai apkopes darbu veikšanas atvienojiet strāvas padevi.
• Uzstādiet ierīci sausā, labi vēdināmā vietā, prom no tiešiem saules stariem, augstas temperatūras un kodīgām gāzēm.
• Nedarbiniet kontrolieri ar mitrām rokām.
• This device is not intended for life-support applications where malfunction could result in injury or death.

3. Uzstādīšana un elektroinstalācija

3.1 Izpakošana

Carefully remove the temperature controller from its packaging. Inspect the device for any signs of damage during transit. Report any damage to your supplier immediately.

3.2 Montāža

The controller is designed for panel mounting. Ensure adequate space for ventilation and wiring connections at the rear of the unit.

3.3 Elektroinstalācijas shēma

Refer to the wiring diagram provided on the side of the unit or in the included quick start guide for specific connection details. Ensure all connections are secure and correctly polarized.

Figure 2: CHBMSS TC4M-N4N Temperature Controller Side View ar termināļiem

• Barošanas avots: Pievienojiet atbilstošo voltage to the designated power terminals.
• Sensora ieeja: Connect your temperature sensor (e.g., thermocouple, RTD) to the sensor input terminals. Observe polarity if applicable.
• Izejas relejs: Connect your heating or cooling device to the output relay terminals. Ensure the load current does not exceed the relay's rating.

4. Darbība

4.1. Sākotnējā ieslēgšana

Once wired, apply power to the controller. The display will illuminate, showing the current process value (PV) and set value (SV).

Figure 3: CHBMSS TC4M-N4N Display Example

4.2 Setting the Temperature (SV)

1. Nospiediet pogu REŽĪMS button briefly to enter the set value adjustment mode. The SV display will flash.
2. Izmantojiet Augšup (▲) un Lejā (▼) bultiņu pogas, lai pielāgotu vēlamo temperatūru.
3. Izmantojiet Pa kreisi (◀) arrow button to shift the cursor for faster adjustment of individual digits.
4. Nospiediet pogu REŽĪMS button again to confirm the setting and exit adjustment mode.

4.3 Parameter Settings (Advanced)

To access advanced parameters (e.g., control mode, alarm settings, calibration), press and hold the REŽĪMS button for several seconds until the parameter menu appears. Navigate using the arrow buttons and confirm with REŽĪMS.

• Dzesēšanas/sildīšanas režīms: Select between cooling (output active when temperature is above SV) or heating (output active when temperature is below SV).
• Temperatūras kalibrēšana: Adjust the sensor reading to match a known reference temperature.
• Signalizācijas iestatījumi: Configure alarm thresholds (AL1, AL2) and alarm types.
• Max/Min Temperature Limits: Set upper and lower bounds for the adjustable temperature range to prevent accidental over/under-setting.

5. Apkope

The CHBMSS TC4M-N4N Temperature Controller requires minimal maintenance to ensure long-term reliable operation.

• Tīrīšana: Periodiski noslaukiet displeju un casinnoslaukiet ar mīkstu, sausu drānu. Nelietojiet abrazīvus tīrīšanas līdzekļus vai šķīdinātājus.
• Pārbaude: Regularly check wiring connections for tightness and signs of wear or corrosion.
• Vide: Nodrošiniet, lai darba vide atbilstu norādītajam temperatūras un mitruma diapazonam.

6. Traucējummeklēšana

If you encounter issues with your temperature controller, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact CHBMSS customer support for further assistance.

7. Tehniskās specifikācijas

8. Garantija un atbalsts

For warranty information or technical support, please refer to the documentation included with your purchase or contact CHBMSS customer service directly. Please have your product model number (TC4M-N4N) and purchase details ready when contacting support.
