CHBMSS Half Steel Pressure Gauge EN 837-1 213.53.100 User Manual

1. Ievads

This manual provides essential instructions for the safe and effective use, installation, operation, and maintenance of your CHBMSS Half Steel Pressure Gauge, model EN 837-1 213.53.100. Please read this manual thoroughly before using the device and retain it for future reference.

1. attēls. Priekšpuse view of the CHBMSS Half Steel Pressure Gauge.

2. Drošības informācija

Lai novērstu ierīces bojājumus un traumas, ievērojiet šādus drošības pasākumus:

• Always ensure the pressure gauge is installed by qualified personnel.
• Do not exceed the maximum rated pressure of the gauge.
• Verify compatibility of the gauge material with the measured medium.
• Protect the gauge from excessive vibration, shock, and extreme temperatures.
• Regularly inspect the gauge for any signs of damage or wear.

3. Produkta īpašības

• Standard Interface Design: Ensures broad compatibility with various systems.
• Augstas precizitātes mērījumi: Utilizes digital circuitry and high-precision pressure sensors for accurate pressure and vacuum readings.
• Reāllaika dati: Capable of real-time testing of pressure and relative temperature, aiding in systematic installation or maintenance based on standard pressure and temperature relationships.

4. Specifikācijas

5. Iestatīšana un instalēšana

Proper installation is crucial for accurate readings and device longevity. Follow these general guidelines:

1. Izvēlieties atrašanās vietu: Choose a location free from excessive vibration, direct heat, and corrosive environments.
2. Montāža: Securely mount the gauge using appropriate fittings. Ensure the gauge face is easily visible.
3. Savienojums: Connect the gauge to the pressure source using compatible and properly sealed fittings. Avoid overtightening.
4. Noplūdes pārbaude: After installation, slowly apply pressure and check all connections for leaks using a suitable leak detection method.

2. attēls: sāni view showing the gauge's connection point.

6. Lietošanas instrukcijas

The CHBMSS Half Steel Pressure Gauge is designed for straightforward operation:

• Mērītāja nolasīšana: The gauge displays pressure in both bar and MPa. The inner scale typically indicates MPa, and the outer scale indicates bar. Read the value indicated by the needle.
• Vacuum Measurement: For vacuum applications, the needle will move into the negative range, indicating vacuum pressure.
• Vides apsvērumi: Ensure the operating environment is within the specified temperature and humidity ranges for optimal performance.

7. Apkope

Regular maintenance ensures the accuracy and longevity of your pressure gauge:

• Tīrīšana: Clean the gauge face and casing ar mīkstu, damp audums. Neizmantojiet abrazīvus tīrīšanas līdzekļus vai šķīdinātājus.
• Pārbaude: Periodically check for any physical damage, such as cracks in the casing or bent needles. Ensure the connection remains secure and free of leaks.
• Kalibrēšana: For critical applications, periodic calibration by a certified technician is recommended to maintain accuracy.

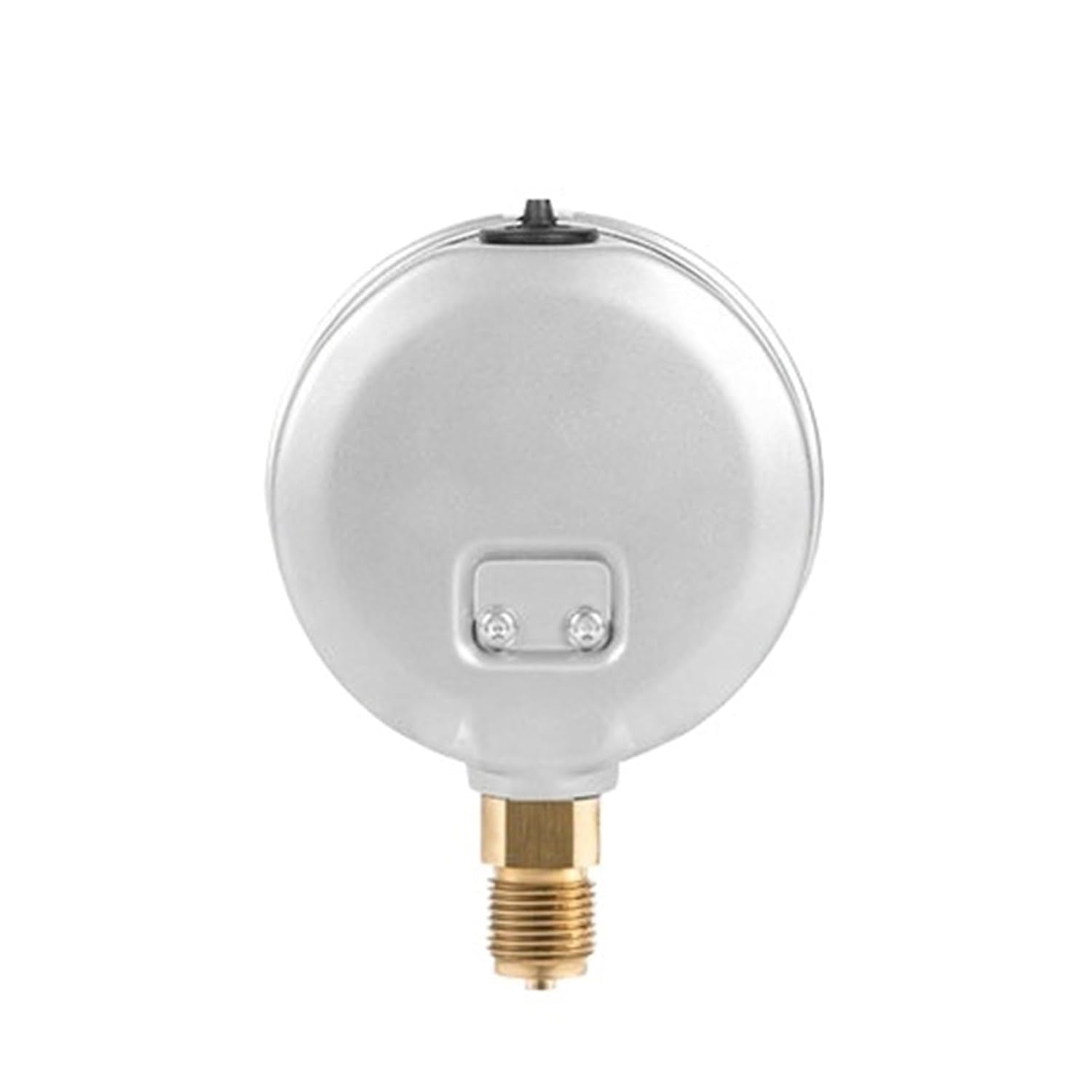

3. attēls. Aizmugure view of the pressure gauge.

8. Traucējummeklēšana

If you encounter issues with your pressure gauge, consider the following:

• Nav nolasījuma/nepareizs nolasījums:
  • Check for blockages in the pressure line.
  • Verify the gauge is correctly connected and sealed.
  • Ensure the pressure source is active.
• Fluctuating Needle:
  • This may indicate pressure pulsations in the system. Consider installing a snubber or dampener.
  • Check for excessive vibration at the mounting point.
• Noplūde savienojumā:
  • Tighten connections appropriately.
  • Replace seals or thread tape if necessary.

9. Garantija un atbalsts

This CHBMSS product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration.

For technical support, troubleshooting assistance, or warranty claims, please contact your retailer or the CHBMSS customer service department. Contact information can typically be found on the product packaging or the official CHBMSS webvietne.
