1. Ievads
Thank you for choosing the UGREEN Nexode Pro 200W 25000mAh Power Bank. This portable power bank is designed to provide high-capacity, fast charging for a wide range of devices, including laptops, tablets, and smartphones. Please read this manual carefully before use to ensure proper operation and to maximize the lifespan of your device.
2. Produkts beidziesview
Galvenās funkcijas:
- 10 000 mAh liela ietilpība: Capable of recharging a MacBook Air 13" approximately 1.3 times, an iPhone 17 Pro 4.7 times, a Galaxy S25 Ultra 3.4 times, or an iPad Pro 11" 1.8 times.
- 200 W kopējā jauda: Delivers a total output of 200W, allowing simultaneous charging of up to two laptops.
- 100W Fast Charging per USB-C: USB-C1 and USB-C2 ports/cables each support PD3.0 100W, charging a MacBook Pro 16'' to 54% in 30 minutes.
- 4-in-1 Simultaneous Charging: Features 2 built-in USB-C cables (USB-C1, USB-C2) and 2 additional USB ports (USB-C3, USB-A) for charging up to 4 devices concurrently.
- Intelligent TFT Display: Provides real-time information on battery level, current, voltage, and power output for each interface, along with battery health and cycle count.
- Vājas strāvas režīms: Activate with a 3-second long press of the button for charging delicate accessories like AirPods and smartwatches.
- Ātra uzlāde: The power bank can be fully recharged in 2.2 hours when using a 100W+ charger (not included).
- Vairāku aizsardzības sistēma: Built with flame-retardant material and ThermalGuard system, offering protection against overvoltage, overcurrent, overcharge, over-discharge, high temperatures, and short circuits.
Iepakojuma saturs:
- UGREEN Nexode Pro 200W 25000mAh Power Bank (Model PB728)
- Integrated USB-C Cables (2)
- Lietotāja rokasgrāmata
Produkta diagramma:

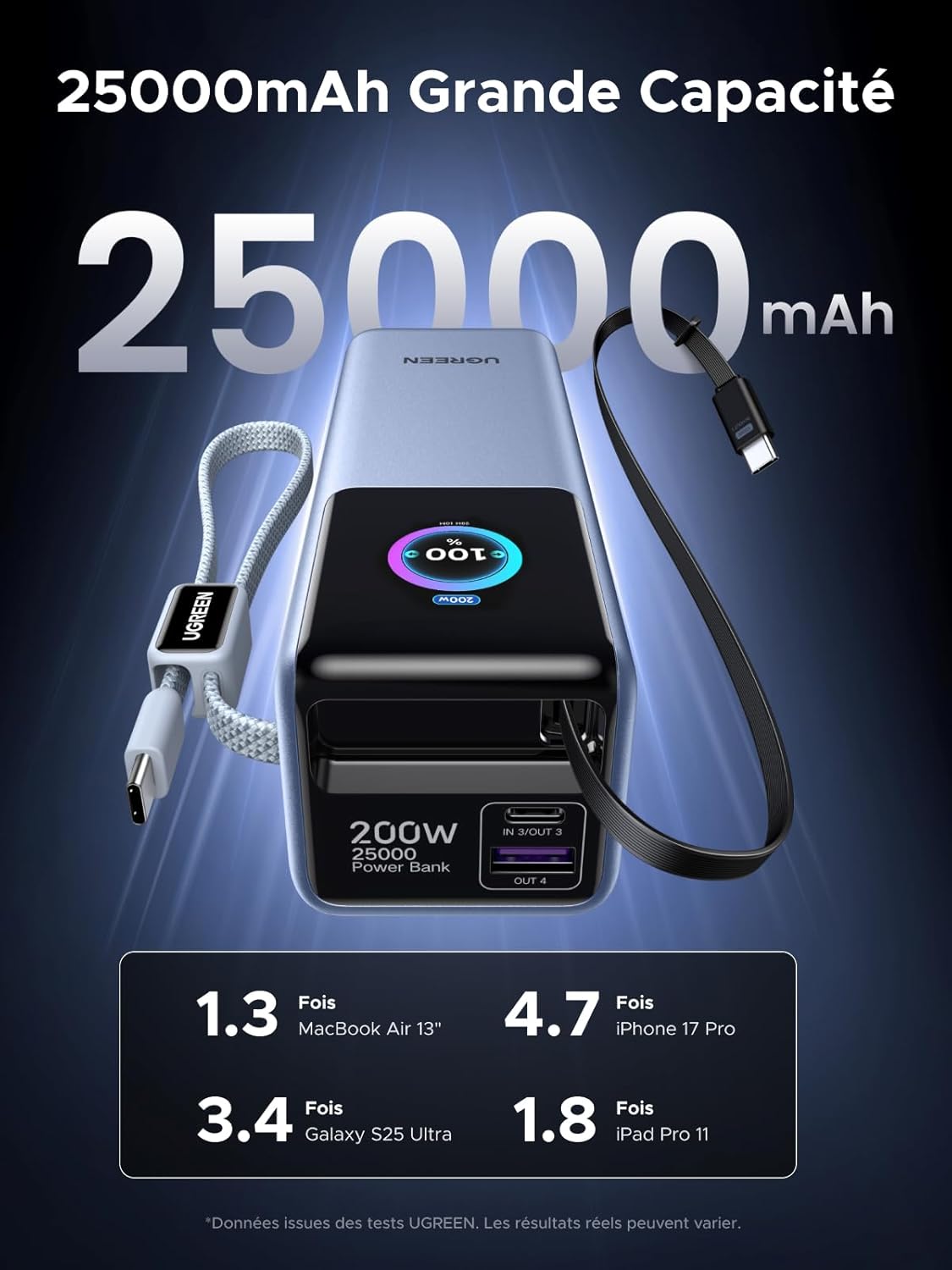

Image: The UGREEN Nexode Pro 200W 25000mAh Power Bank, showcasing its compact design and integrated USB-C cables.
Image: A diagram illustrating the power bank simultaneously charging a laptop, tablet, phone, and earphones using its two built-in USB-C cables and two additional USB ports.
3. Iestatīšana
The UGREEN Nexode Pro Power Bank comes pre-charged to some extent, but it is recommended to fully charge it before first use.
Strāvas bankas uzlāde:
- Connect a USB-C charger (100W+ recommended, not included) to one of the power bank's USB-C input ports (USB-C1 or USB-C2 built-in cables, or USB-C3 port).
- Pievienojiet lādētāju sienas kontaktligzdai.
- The TFT display will show the charging status and estimated time to full charge. The power bank will be fully charged in approximately 2.2 hours with a 100W+ charger.
Image: The UGREEN Nexode Pro Power Bank connected to a wall charger for recharging, illustrating its fast recharge capability.
4. Lietošanas instrukcijas
Ierīču uzlāde:
- Connect your device to one of the power bank's output ports/cables:
- Use the built-in USB-C1 or USB-C2 cables for devices supporting USB-C.
- Use the USB-C3 port for devices requiring a separate USB-C cable.
- Use the USB-A port for devices requiring a separate USB-A cable.
- The power bank will automatically begin charging your device. The TFT display will show the real-time output power for each connected device.
- Lai pārtrauktu uzlādi, vienkārši atvienojiet ierīci.
Image: The UGREEN Nexode Pro Power Bank connected to a MacBook Pro, demonstrating its 100W fast charging capability for laptops.
Vājas strāvas režīms:
This mode is ideal for charging low-power devices such as wireless earbuds, smartwatches, or fitness trackers.
- With no devices connected, press and hold the power button for 3 seconds until the low-current mode icon appears on the TFT display.
- Connect your low-power device to any available port.
- To exit low-current mode, press and hold the power button for 3 seconds again, or disconnect all devices and the mode will automatically deactivate after a short period.
5. TFT Display Information
The intelligent TFT display provides comprehensive information about the power bank's status:
- Akumulatora līmenis: Parāda atlikušo akumulatora procentuālo daudzumutage.
- Real-time Power Output/Input: Parāda pašreizējo ūdens daudzumutage being delivered to or received from devices for each port (C1 IN/OUT, C2 IN/OUT, C3 IN/OUT, A OUT).
- Voltage un pašreizējais: Detalizēts sējtage and current readings for active ports.
- Akumulatora stāvoklis: Indicates the overall health of the internal battery.
- Ciklu skaits: Tracks the number of charge/discharge cycles.
- Atlikušais laiks: Estimated time to full charge (when charging the power bank) or estimated remaining usage time (when discharging).
- Low-Current Mode Indicator: Icon appears when low-current mode is active.
Attēls: Detalizēts view of the power bank's TFT display, highlighting indicators for real-time power, battery percentage, remaining charge time, and battery health.
6. Apkope
- Sargājiet pārnēsājamo akumulatoru no ūdens, uguns un ekstremālām temperatūrām.
- Izvairieties no ierīces nomešanas vai nepakļaušanas spēcīgam triecienam.
- Tīriet ārējo akumulatoru ar sausu, mīkstu drānu. Nelietojiet kodīgus tīrīšanas līdzekļus.
- Store the power bank in a cool, dry place when not in use. For long-term storage, it is recommended to keep the battery level between 50% and 70%.
- Do not attempt to disassemble, repair, or modify the power bank yourself.
7. Traucējummeklēšana
| Problēma | Iespējamais cēlonis | Risinājums |
|---|---|---|
| Power bank neuzlādē ierīces. | Low battery on power bank; incorrect cable; device not compatible; low-current mode not activated for small devices. | Recharge the power bank; ensure cable is functional and correctly connected; check device compatibility; activate low-current mode for small devices. |
| Power banka neuzlādējas. | Charger not powerful enough; faulty charger/cable; loose connection. | Use a 100W+ PD charger; try a different charger and cable; ensure all connections are secure. |
| TFT display is off or unresponsive. | Power bank is off; battery is completely depleted; temporary software glitch. | Press the power button to turn on; recharge the power bank; try restarting by connecting/disconnecting a charger. |
| Lēns uzlādes ātrums. | Device does not support fast charging; multiple devices connected; cable limitation. | Ensure your device and cable support fast charging protocols; disconnect other devices to maximize output to one device. |
8. Specifikācijas
| Funkcija | Detaļas |
|---|---|
| Modeļa numurs | PB728 |
| Akumulatora ietilpība | 25000 mAh |
| Kopējā jauda | 200 W (maks.) |
| USB-C1/C2 izeja | PD3.0 100W (Max per port) |
| USB-C3 izeja | PD3.0 100W (Max) |
| USB-A izeja | 22.5 W (maks.) |
| Input (USB-C1/C2/C3) | 100 W (maks.) |
| Akumulatora tips | Litija jonu |
| Izmēri (G x P x A) | 15.8 x 5.4 x 5 cm |
| Svars | 631 g |
| Īpašas funkcijas | Digital Display, Fast Charging, Integrated Cables, Multi-Protection |
9. Drošības informācija
- Do not expose the power bank to direct sunlight, heat sources, or high humidity.
- Avoid using the power bank in environments with extreme temperatures (below 0°C or above 45°C).
- Uzglabāt bērniem nepieejamā vietā.
- Neizveidojiet īssavienojumu strāvas bankā.
- Atbrīvojieties no pārnēsājamā akumulatora saskaņā ar vietējiem noteikumiem. Neizmetiet to kopā ar sadzīves atkritumiem.
- Ja pārnēsājamais akumulators uzbriest, tek vai izdala neparastu smaku, nekavējoties pārtrauciet tā lietošanu.
Image: The UGREEN Nexode Pro Power Bank highlighting its multi-protection features, including safeguards against overvoltage, overcurrent, overcharge, over-discharge, high temperatures, and short circuits.
10. Garantija un atbalsts
UGREEN products come with a standard warranty. For detailed warranty information, product support, or technical assistance, please refer to the official UGREEN website or contact UGREEN customer service directly. Please have your model number (PB728) and purchase information ready when contacting support.
