FOXWELL NT630 Plus and BC521 User Manual

1. Ievads

This manual provides detailed instructions for the safe and effective operation of your FOXWELL NT630 Plus diagnostic tool and FOXWELL BC521 12V 5A battery charger, tester, trickle charger, and desulfator. Please read this manual thoroughly before use and retain it for future reference.

The FOXWELL BC521 is a versatile 4-in-1 device designed for 12V lead-acid batteries (AGM, GEL, EFB, Flooded). It charges, tests, desulfates, and maintains batteries. The FOXWELL NT630 Plus is a professional diagnostic scanner for ABS and SRS systems, capable of reading and clearing codes, displaying live data, and performing specific tests.

2. Drošības informācija

Lai novērstu ierīces vai transportlīdzekļa bojājumus vai traumas, vienmēr ievērojiet šādus drošības pasākumus:

• Strādājot ar akumulatoriem, valkājiet acu aizsargus un aizsargtērpu.
• Ensure adequate ventilation when charging batteries to prevent gas accumulation.
• Do not smoke or allow sparks or flames near batteries.
• Izvairieties pieskarties akumulatora spailēm vai kabeļiem ar kailām rokām.
• Keep the devices away from water, oil, and extreme temperatures.
• Nemēģiniet izjaukt vai pārveidot ierīces.
• Refer to your vehicle's service manual for specific safety procedures related to your vehicle.

3. Iepakojuma saturs

Pārliecinieties, vai iepakojumā ir visas preces:

• FOXWELL NT630 Plus Diagnostic Tool
• FOXWELL BC521 Battery Charger/Tester
• OBD-II Connection Cable (for NT630 Plus)
• Akumulators Clamps (Red and Black, for BC521)
• Power Cord (for BC521)
• Lietotāja rokasgrāmata (šis dokuments)

4. Produkts beidziesview

4.1 FOXWELL BC521 Battery Charger/Tester

The BC521 combines multiple functions for 12V lead-acid batteries. It features an intuitive display and control buttons for selecting modes and viewakumulatora stāvokli.

Image: FOXWELL BC521 Battery Charger and Tester with its main menu displayed and battery clamps. This device offers multiple functions including quick charging, standard charging, maintainer mode, battery test, cranking test, and alternator test.

4.2 FOXWELL NT630 Plus Diagnostic Tool

The NT630 Plus is designed for advanced vehicle diagnostics, specifically for Anti-lock Braking System (ABS) and Supplemental Restraint System (SRS) issues. It connects to your vehicle's OBD-II port.

Image: FOXWELL NT630 Plus Diagnostic Tool with its screen displaying diagnostic options, connected to a vehicle's OBD-II port. The device is used for reading and clearing codes, live data, and bidirectional tests.

5. Iestatīšana

5.1 Setting up the FOXWELL BC521 Battery Charger/Tester

1. Pieslēgšana akumulatoram: Ensure the vehicle ignition is off. Connect the red positive (+) clamp pie akumulatora pozitīvā pola un melnā negatīvā (-) polaamp uz negatīvo akumulatora spaili.
2. Pievienojiet strāvas padevei: Plug the BC521's power cord into a standard AC outlet (100-240V).
3. Ierīces inicializācija: The BC521 will power on and perform a self-check. The display will show the current battery status.

5.2 Setting up the FOXWELL NT630 Plus Diagnostic Tool

1. Atrodiet OBD-II portu: OBD-II ports parasti atrodas zem instrumentu paneļa vadītāja pusē.
2. Pievienojiet kabeli: Plug the NT630 Plus's OBD-II cable into the vehicle's OBD-II port.
3. Ieslēgšana: The NT630 Plus will power on automatically once connected to the vehicle.

6. Lietošanas instrukcijas

6.1 Operating the FOXWELL BC521 Battery Charger/Tester

The BC521 offers charging, testing, and maintenance functions. Use the navigation buttons on the device to select desired options.

6.1.1 uzlādes režīmi

Select the appropriate charging current (1A, 3A, or 5A) based on your battery's capacity and charging requirements. The 8-stage smart charging process optimizes battery performance and longevity.

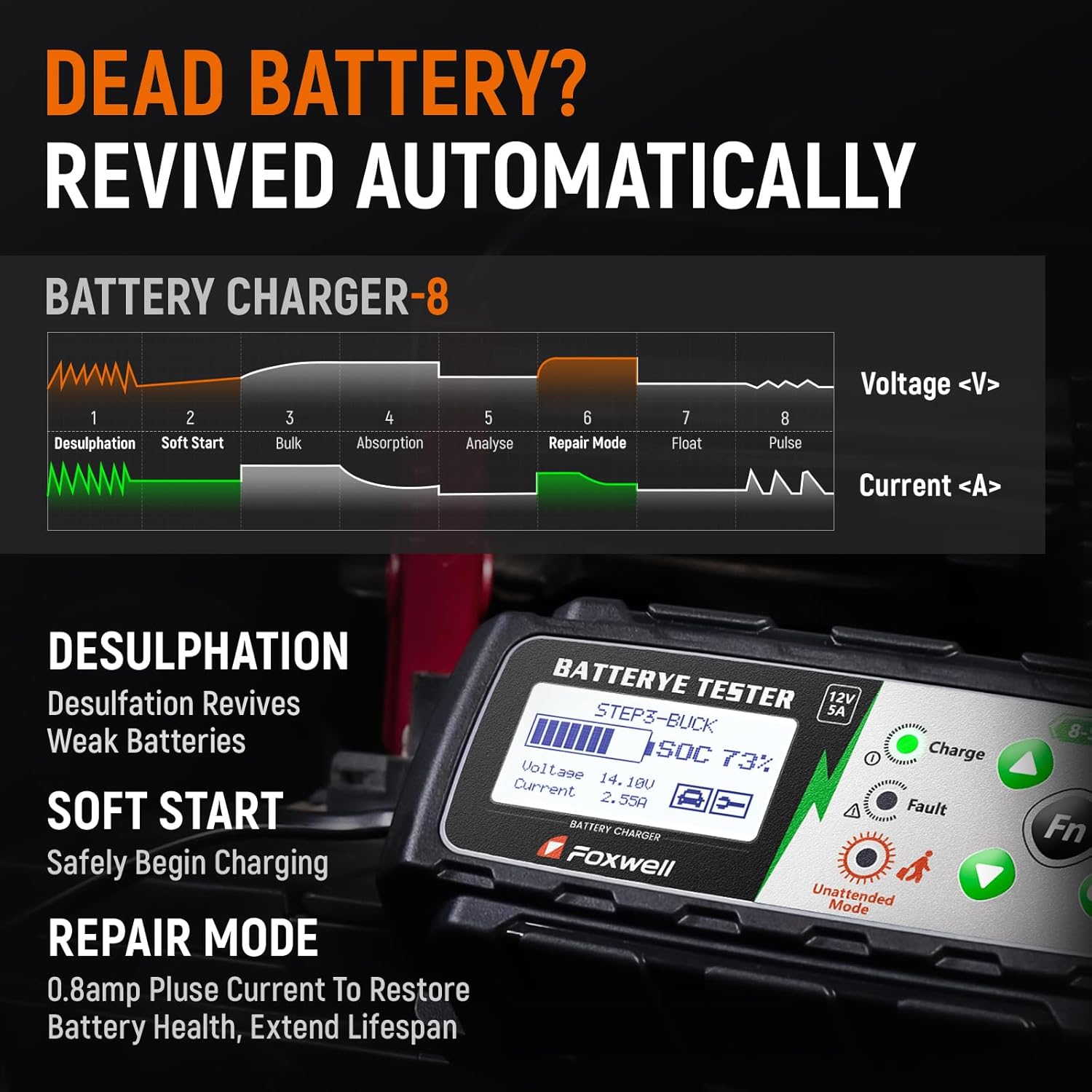

Attēls: Diagramma, kas ilustrē 8-stage smart charging process of the FOXWELL BC521, including Desulfation, Soft Start, Bulk, Absorption, Analyse, Repair Mode, Float, and Pulse stages, showing voltage un strāvas līknes.

• Desulfācija: Revives weak batteries by breaking down lead sulfate crystals.
• Mīkstais starts: Gradually begins charging to protect the battery.
• Lielapjoma: Charges the battery at maximum current until approximately 80% capacity.
• Absorbcija: Charges at a decreasing current to bring the battery to 100%.
• Analīze: Tests the battery's ability to hold a charge.
• Remonta režīms: Applies a pulsed current (0.8A) to restore battery health and extend lifespan.
• Pludiņš: Maintains the battery at full charge with a constant voltage.
• Pulss: Monitori akumulatora tilptage and provides a pulse charge when needed to maintain optimal charge.

Image: Comparison display of battery health before and after using the FOXWELL BC521, showing improvements in health percentage, charge, internal resistance, and CCA values.

6.1.2. Akumulatora pārbaude

The BC521 provides accurate real-time diagnostics for 12V batteries.

• Akumulatora pārbaude: Pārbaudes sējtage, State of Health (SOH), and internal resistance.
• Palaišanas tests: Novērtē akumulatora spēju iedarbināt dzinēju.
• Alternator Test: Assesses the vehicle's charging system performance.

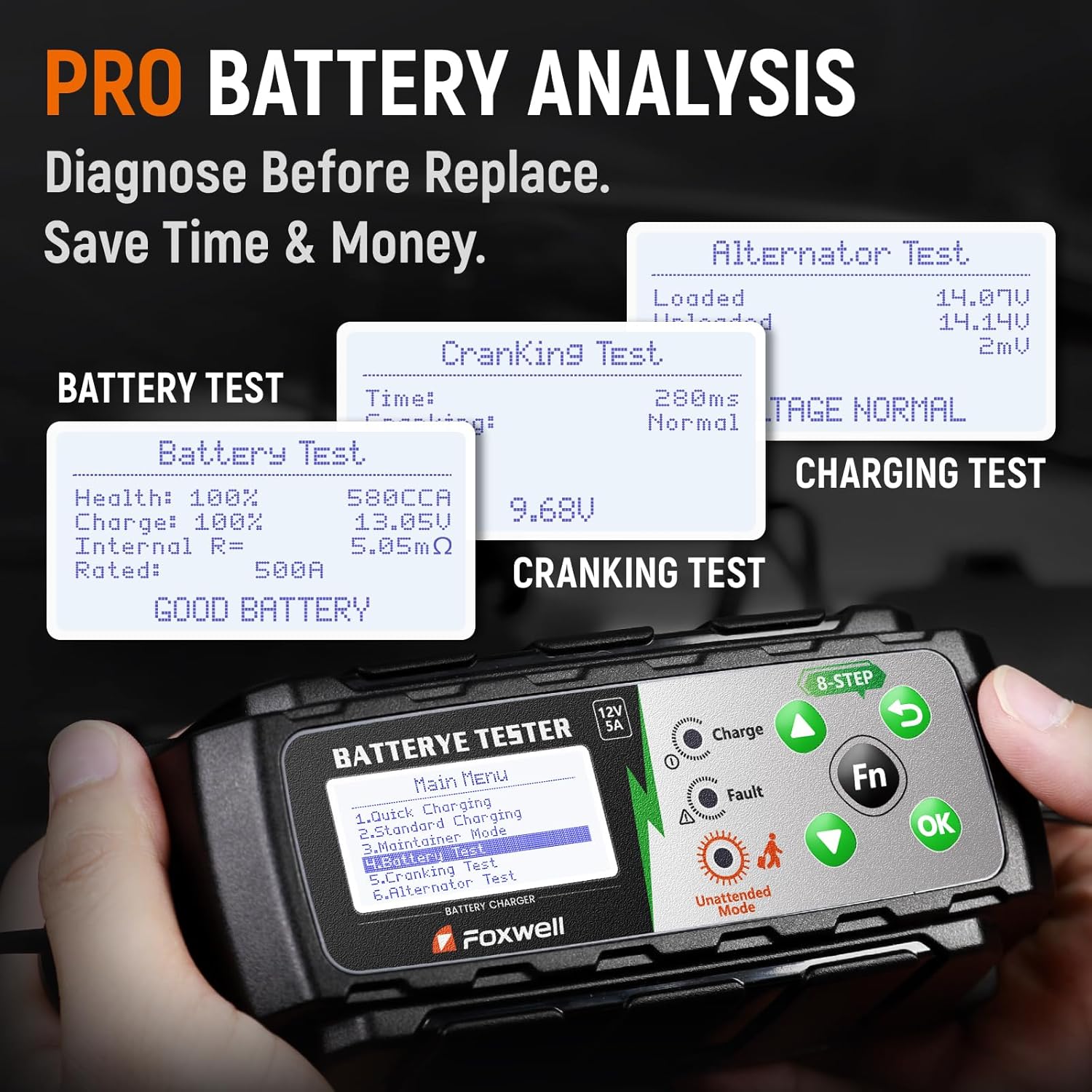

Image: Screenshots from the FOXWELL BC521 showing results for Battery Test (Health, Charge, Internal Resistance, Rated CCA), Cranking Test (Time, Voltage), and Alternator Test (Loaded, Unloaded voltagun).

6.2 Operating the FOXWELL NT630 Plus Diagnostic Tool

Once connected to the vehicle's OBD-II port, the NT630 Plus will display the main menu. Use the directional buttons and 'OK' button to navigate.

6.2.1 Basic Diagnostic Functions

• Lasīt kodus: Izgūst diagnostikas problēmu kodus (DTC) no transportlīdzekļa vadības moduļiem.
• Notīrīt kodus: Erases DTCs from the vehicle's memory. Ensure the underlying issue is resolved before clearing codes.
• Tiešraides dati: Displays real-time sensor data from the vehicle, useful for diagnosing intermittent issues.
• Bidirectional Test (for ABS): Allows the tool to send commands to vehicle components to test their functionality (e.g., cycling ABS solenoids).
• S-M-O-G Test: Performs various tests related to emissions monitoring systems.

6.2.2 ABS & SRS Diagnostics

The NT630 Plus specializes in diagnosing issues within the Anti-lock Braking System (ABS) and Supplemental Restraint System (SRS, airbags).

Image: FOXWELL NT630 Plus screen showing a list of common ABS and SRS diagnostic capabilities, including checking wheel speed sensor issues, ABS control module faults, wiring/connection faults, brake fluid levels, sensor malfunction locations, and damaged clock spring checks.

• Wheel Speed Sensor Issues: Identifies faults with individual wheel speed sensors.
• ABS Control Module Fault: Diagnoses problems within the ABS control unit.
• Wiring or Connection Faults: Helps pinpoint electrical issues in the ABS/SRS circuits.
• Low or Contaminated Brake Fluid: Can indicate issues related to brake system health.
• Sensor Malfunction Location: Provides specific location of faulty sensors.
• Damaged Clock Spring Check: Verifies the integrity of the clock spring, crucial for airbag functionality.

Image: FOXWELL NT630 Plus screen displaying real-time graphical data for engine revolutions per minute (RPM) and front right wheel speed, indicating its capability to quickly detect and monitor wheel sensors.

7. Apkope

• Tīrīšana: Noslaukiet ierīces ar mīkstu, sausu drānu. Nelietojiet abrazīvus tīrīšanas līdzekļus vai šķīdinātājus.
• Uzglabāšana: Store the devices in a dry, cool place, away from direct sunlight and extreme temperatures.
• Kabeļa kopšana: Regulāri pārbaudiet kabeļus, vai tie nav bojāti. Nelieciet un nesaspiediet kabeļus pārāk daudz.
• Programmatūras atjauninājumi: Check the FOXWELL official website periodically for software updates for the NT630 Plus to ensure optimal performance and compatibility with new vehicle models.

8. Traucējummeklēšana

8.1 FOXWELL BC521 Troubleshooting

• Ierīce neieslēdzas: Ensure the power cord is securely plugged into an AC outlet and the battery clampir pareizi pievienoti akumulatora spailēm.
• Charging not starting: Verify battery clamps are making good contact. The battery might be severely discharged; try a lower amperage setting or the repair mode.
• Parādīts kļūdas ziņojums: Refer to the device's screen for specific error codes or messages. Common errors include reverse polarity connection (ensure red to positive, black to negative) or a faulty battery.

Image: FOXWELL BC521 displaying icons for various protection features including Over Voltage Protection, Over Current Protection, Over Heat Protection, Reverse Connection Protection, Anti-Overcharge, and Anti-Overdischarge, which help prevent common issues.

8.2 FOXWELL NT630 Plus Troubleshooting

• Ierīce neieslēdzas: Ensure the OBD-II cable is securely connected to the vehicle's OBD-II port. The vehicle's ignition should be in the ON position (engine off).
• Komunikācijas kļūda: Check the OBD-II cable for damage. Ensure the vehicle's battery has sufficient charge. Try connecting to a different vehicle to rule out a vehicle-specific issue.
• No codes found: If the check engine light is not on, there may be no active codes. Some issues might be pending codes or historical codes that require specific menu navigation to view.

9. Specifikācijas

10. Garantija

FOXWELL products are covered by a limited warranty against defects in materials and workmanship. The warranty period typically begins from the date of purchase. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, refer to the warranty card included with your product or visit the official FOXWELL webvietne.

11. Atbalsts

For technical assistance, product inquiries, or service, please contact FOXWELL customer support. You can typically find contact information on the official FOXWELL webvietnē vai caur mazumtirgotāju, kur iegādājāties produktu.

Webvietne: www.foxwelltech.com (PiemampLūdzu, pārbaudiet oficiālo webvietne)

E-pasts: Refer to official webatbalsta e-pasta vietne.

Tālrunis: Refer to official webvietne, lai atrastu atbalsta tālruņa numuru.
