1. Ievads
Thank you for choosing the FERUERW Hexagon Garage Lights 5 Grid. This lighting system is designed to provide bright, uniform, and energy-efficient illumination for various spaces such as garages, workshops, basements, and car detailing shops. Featuring a unique hexagonal design and adjustable color temperature (2700K, 4300K, 6500K), these lights enhance visibility and create a modern aesthetic. Please read this manual thoroughly before installation and use to ensure safe and optimal performance.
2. Drošības informācija
- Pirms uzstādīšanas, apkopes vai tīrīšanas vienmēr atvienojiet strāvas padevi.
- Installation should be performed by a qualified electrician if hardwiring is required.
- Ensure the mounting surface can support the weight of the lighting system.
- Do not operate the lights with damaged cords or connectors.
- Avoid direct eye exposure to the LED light source when illuminated.
- Šis produkts ir paredzēts lietošanai tikai iekštelpās.
- Turiet bērnus un mājdzīvniekus prom no uzstādīšanas zonas.
3. Iepakojuma saturs
Pirms uzstādīšanas sākšanas pārliecinieties, vai visas tālāk norādītās sastāvdaļas ir klāt un nav bojātas.

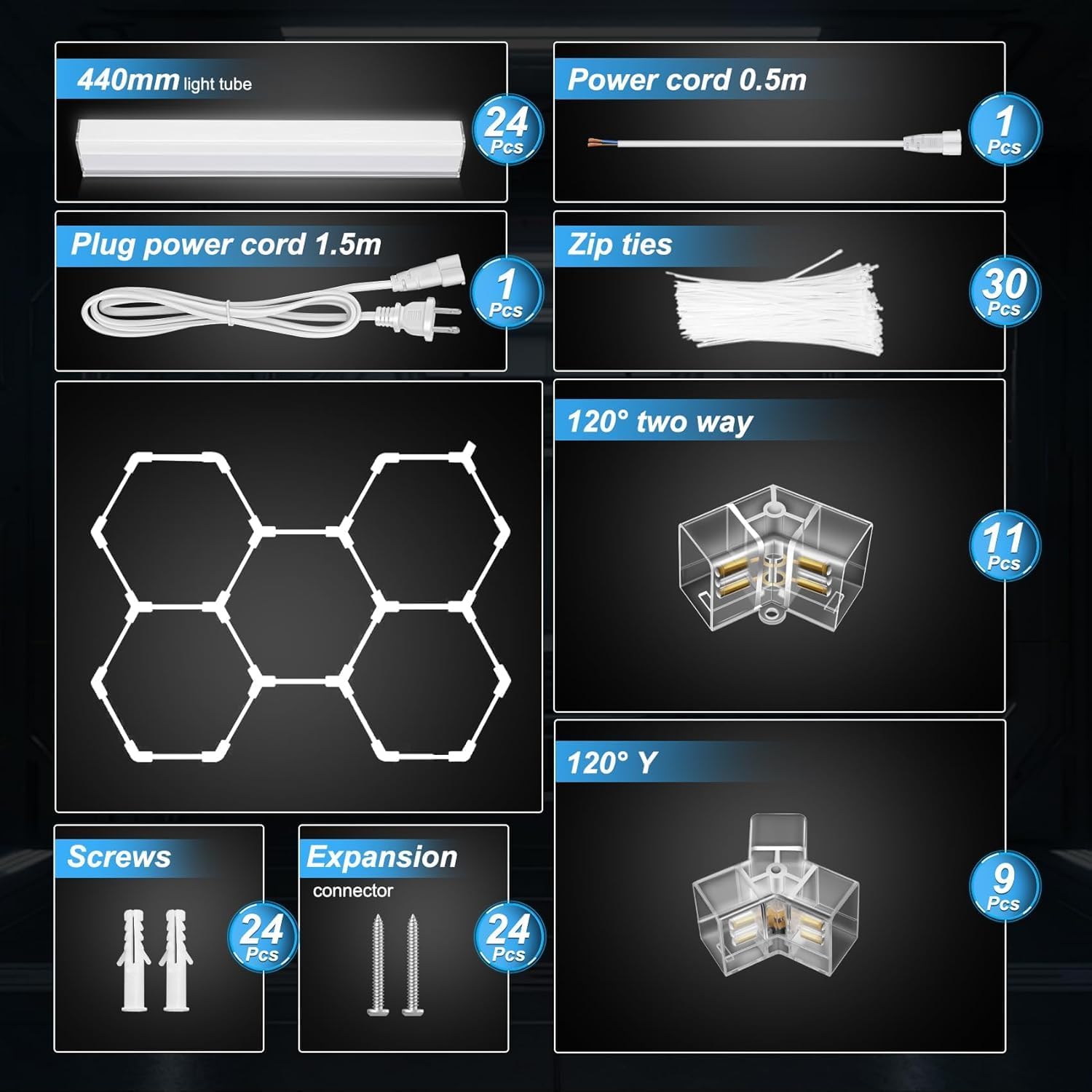

3.1. Attēls: beidziesview no iekļautajām sastāvdaļām.
- Light Tubes (440mm): 24 pieces
- Power Cord (0.5m): 1 piece
- Plug Power Cord (1.5m): 1 piece
- Zip Ties: 30 pieces
- 120° Two-Way Connectors: 11 pieces
- 120° Y Connectors: 9 pieces
- Skrūves: 24 gab.
- Expansion Connectors: 24 pieces
- Instruction Manual: 1 piece
4. Iestatīšana un instalēšana
The FERUERW Hexagon Garage Lights are designed for easy assembly and installation. Follow these steps carefully.
4.1. Planning the Layout
Before assembly, plan your desired hexagonal grid layout on the ceiling. Consider the dimensions of your space and the coverage needed. The system allows for various configurations using the provided connectors.

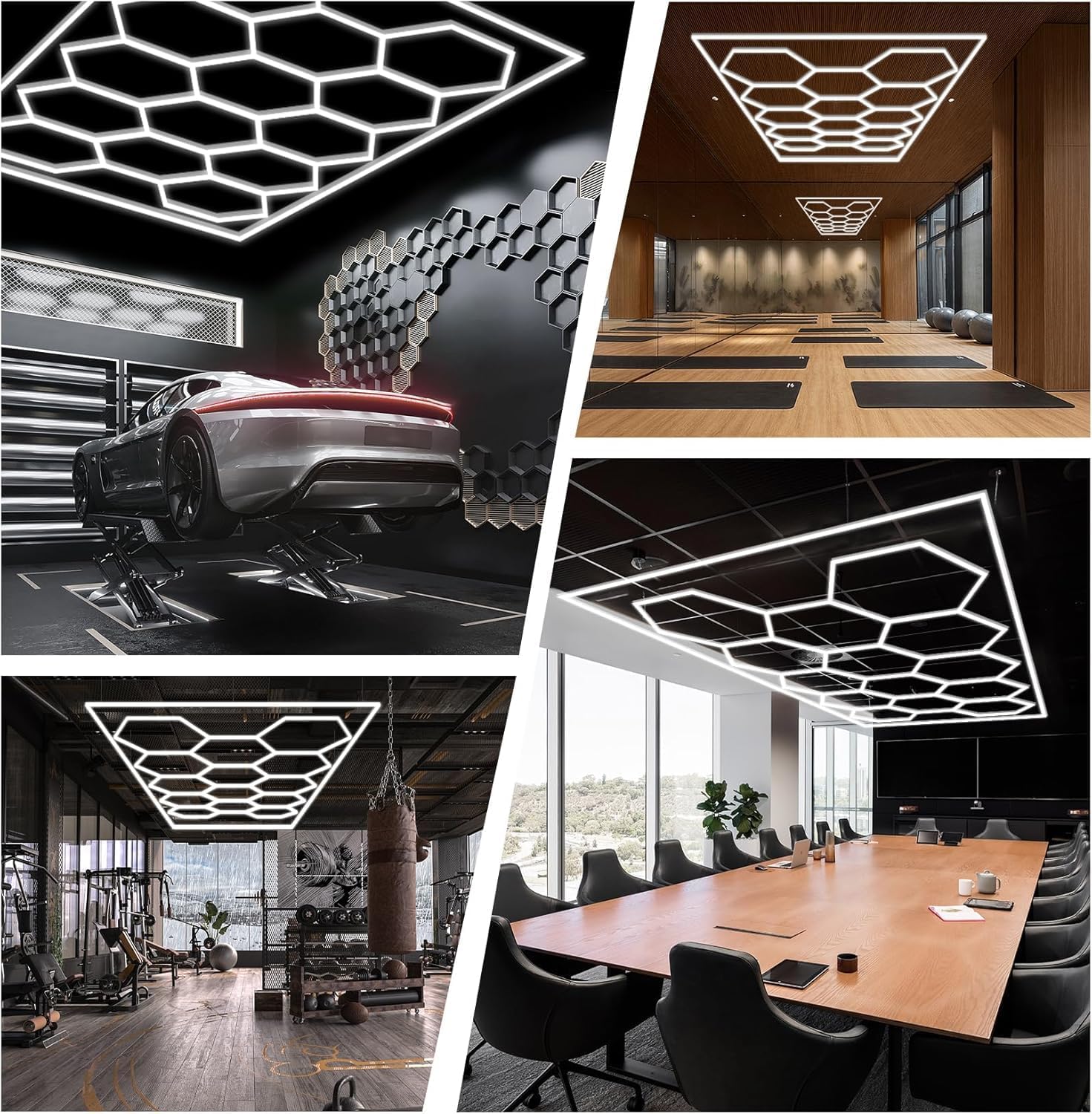

4.1. attēls: Piemample layouts for the hexagonal lighting system.
4.2. Assembly of Light Grid
- Connect Light Tubes: Use the 120° two-way and 120° Y connectors to join the 440mm light tubes according to your planned hexagonal pattern. Ensure a secure connection for both mechanical stability and electrical contact.
- Strāvas pieslēgums: Connect the power cord to the assembled grid. The system supports both direct hardwiring (0.5m power cord) or plug-in operation (1.5m plug power cord). Choose the appropriate method for your installation.
Video 4.1: Unboxing and initial assembly demonstration of the FERUERW Hexagon Garage Lights. This video shows the components and how they connect.
4.3. Montāža pie griestiem
- Drošas montāžas skavas: Position the assembled light grid against the ceiling. Mark the locations for the mounting clips. Use the provided screws and expansion connectors to securely attach the clips to the ceiling.
- Attach Light Grid: Carefully snap the light tubes into the mounted clips. Ensure all connections are firm and the grid is stable.

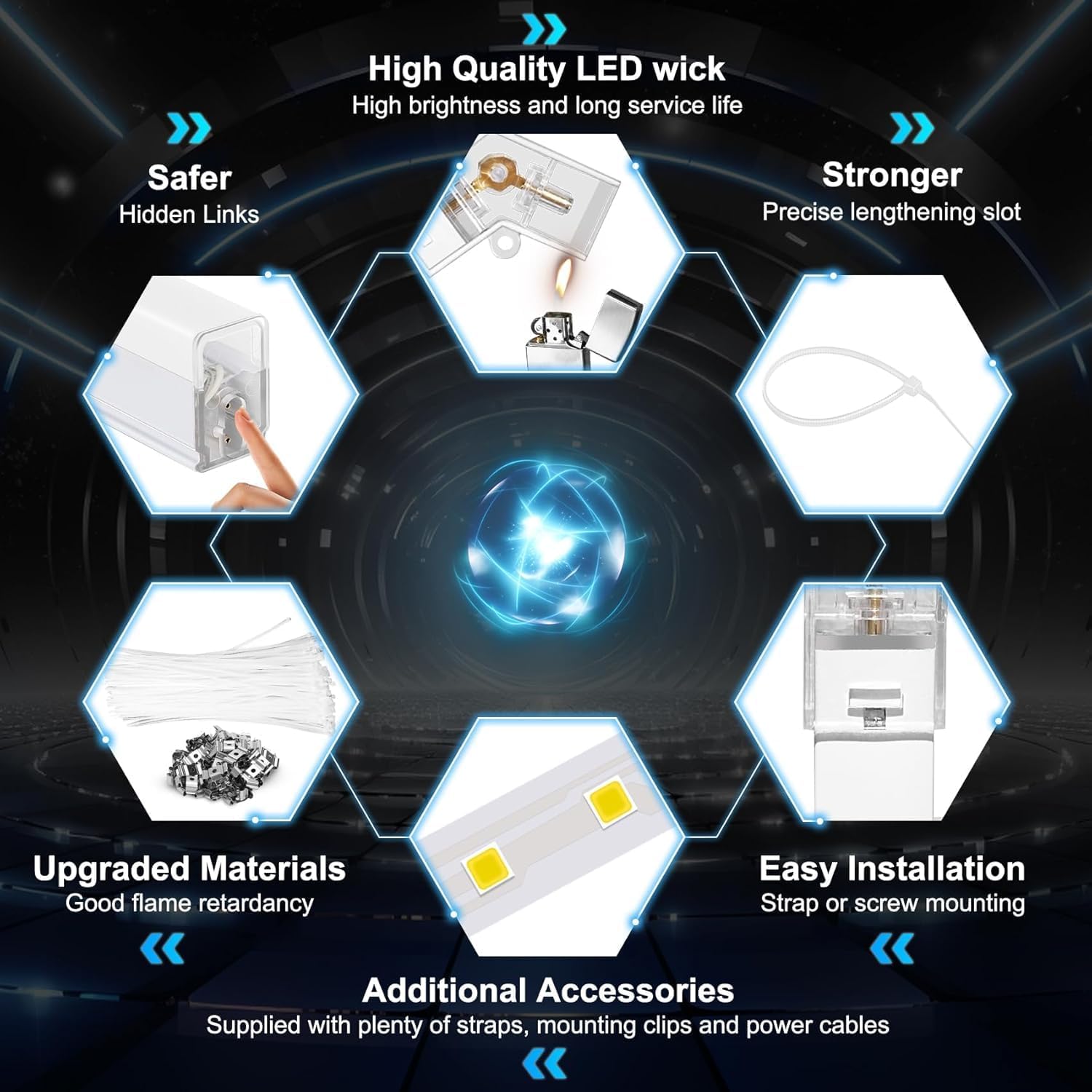

Figure 4.2: The FERUERW Hexagon Garage Lights feature concealed snap mounting for a clean finish.
Figure 4.3: Easy installation is facilitated by strap or screw mounting options.
5. Lietošanas instrukcijas
Once installed, operating your FERUERW Hexagon Garage Lights is straightforward.
- Ieslēgšana/izslēgšana: Connect the power plug to a suitable electrical outlet or activate the wall switch if hardwired.
- Pielāgojiet krāsu temperatūru: The lights feature 3 color temperature settings (2700K, 4300K, 6500K). Use the integrated push button control method to cycle through the available color temperatures to suit your preference or task.
- Aptumšošanas funkcija: This model is dimmable. If connected to a compatible dimmer switch (not included), you can adjust the brightness level.
Figure 5.1: Adjusting the color temperature from warm (2700K) to cool white (6500K).
6. Apkope
Regular maintenance ensures the longevity and optimal performance of your lighting system.
- Tīrīšana: Disconnect power before cleaning. Use a soft, dry cloth to wipe down the light tubes and connectors. Do not use abrasive cleaners or solvents.
- Pārbaude: Periodically check for any loose connections or damaged components. Address any issues promptly.
- Spuldžu nomaiņa: The LED light source is integrated and not user-replaceable. The system is designed for long-lasting performance.
7. Traucējummeklēšana
| Problēma | Iespējamais cēlonis | Risinājums |
|---|---|---|
| Gaismas neieslēdzas. | No power supply; Loose connection; Faulty outlet/switch. | Check power connection; Ensure all connectors are secure; Test outlet/switch with another device. |
| Gaismas mirgo. | Loose connection; Incompatible dimmer switch (if applicable). | Verify all connections are tight; Ensure dimmer switch is LED compatible. |
| Nepareiza krāsu temperatūra. | Setting needs adjustment. | Use the push button control to cycle through color temperature options. |
If you experience issues not listed here or if troubleshooting steps do not resolve the problem, please contact customer support.
8. Specifikācijas
| Funkcija | Detaļas |
|---|---|
| Zīmols | FERUERW |
| Modelis | Adjustable Color Temperature 5 Grids |
| Jauda | 672W (System Total) |
| Spilgtums | 21480 lūmeni (maks.) |
| Krāsu temperatūra | 2700K / 4300K / 6500K (regulējams) |
| Voltage | 110 volts |
| Materiāls | Plastic (High-quality PC, flame retardant) |
| Instalācijas veids | Daļēji iebūvējams / Griestu stiprinājums |
| Kontroles metode | Push Button (for color temperature) / Dimmer (for brightness, compatible switch required) |
| Lietošana iekštelpās/ārā | Iekštelpās |
| Nepieciešama montāža | Jā |
| Izmēri (aptuveni) | 7.5"L x 7.5"W x 18"H (Individual light fixture, system dimensions vary by layout) |
Figure 8.1: High brightness and efficient heat dissipation ensure stable performance.
Figure 8.2: The hexagonal lighting system provides exceptional illumination for workspaces.
9. Garantija un atbalsts
FERUERW products are manufactured to high-quality standards. This product typically comes with a 2-year warranty against manufacturing defects. For detailed warranty information, product support, or to purchase replacement parts, please refer to the product packaging or contact FERUERW customer service through your retailer or the official brand webvietne.
